ECM Inputs and Outputs at Connector C (31P)

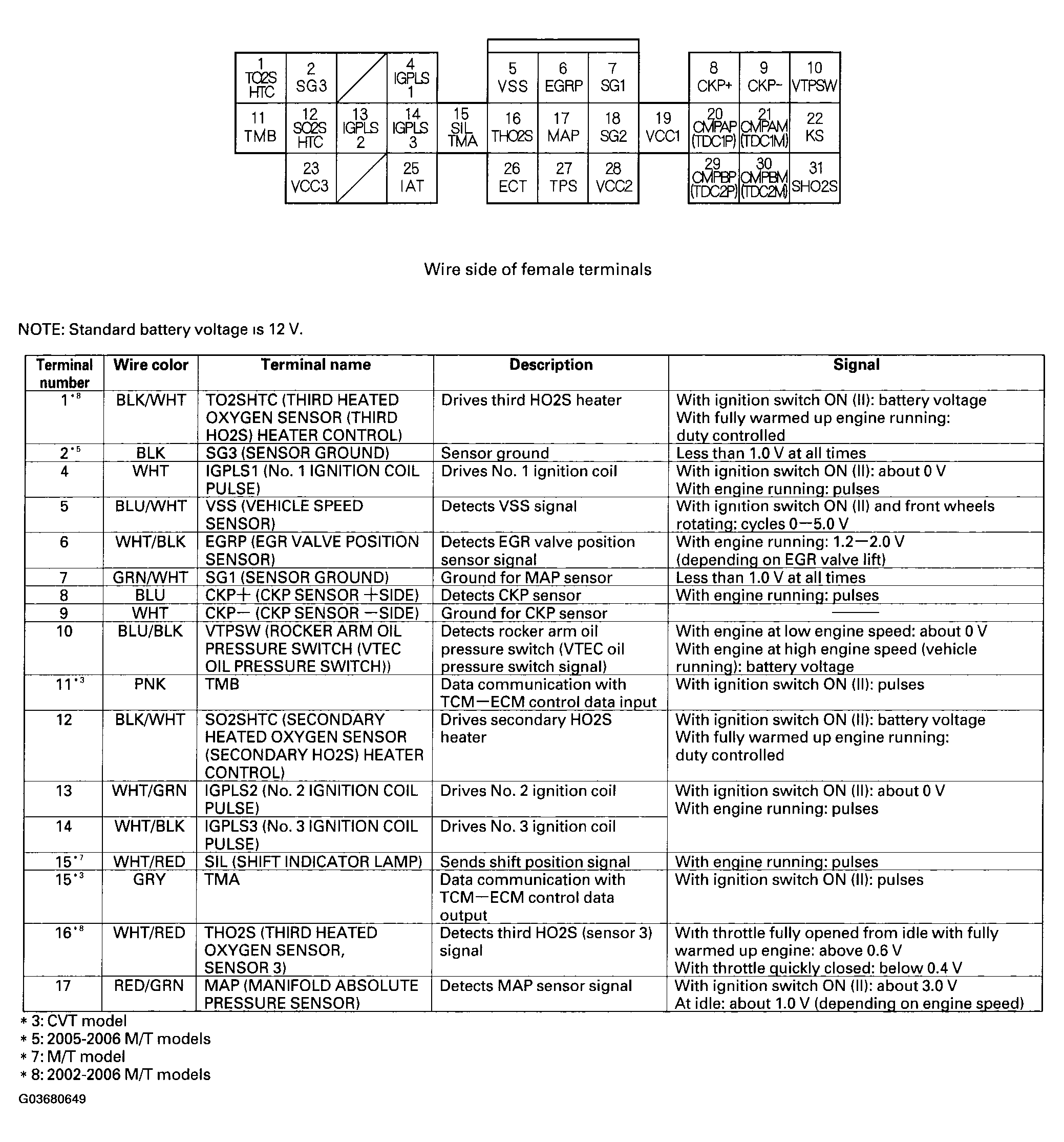

Fig 1: Identifying ECM Inputs And Outputs Connector C (31P) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

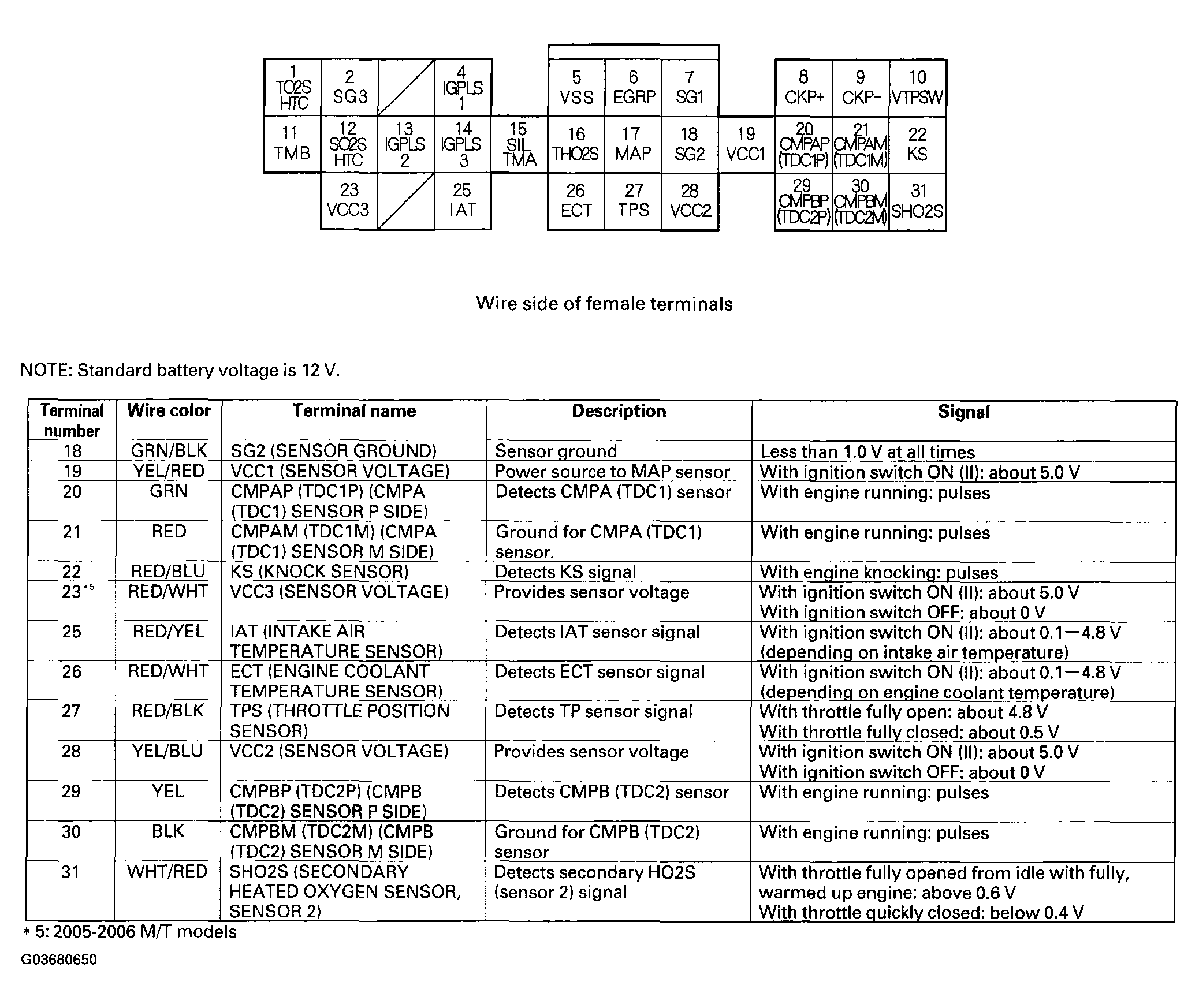

Fig 2: Identifying ECM Inputs And Outputs Connector C (31P) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
