Distributor Overhaul - F23A5 Engine

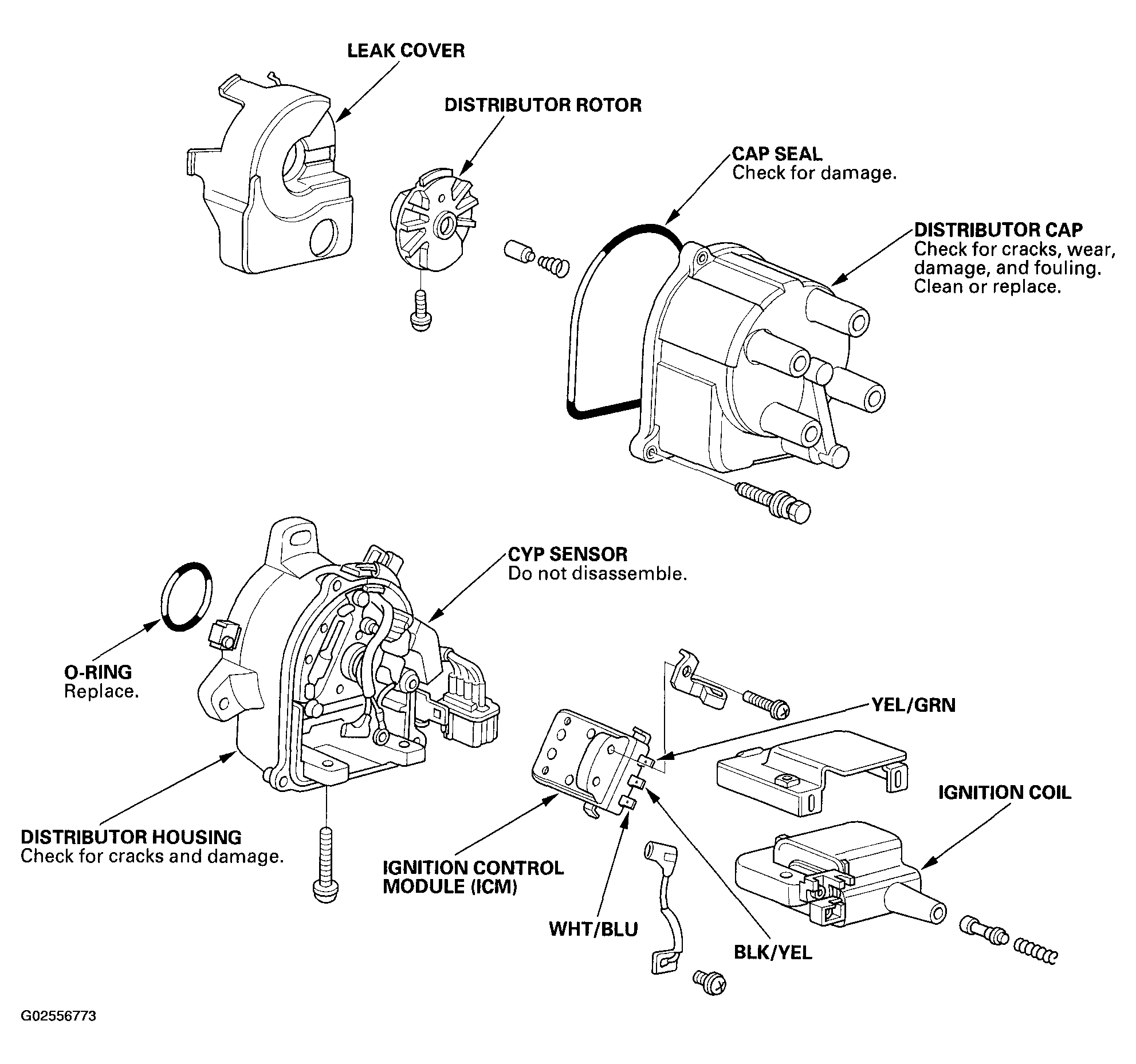

Fig 1: Exploded View Of Distributor (F23A5 Engine)

G02556773

Courtesy of AMERICAN HONDA MOTOR CO., INC.
