Power Steering Pressure (PSP) Switch Signal

This signals the PCM when the power steering load is high.

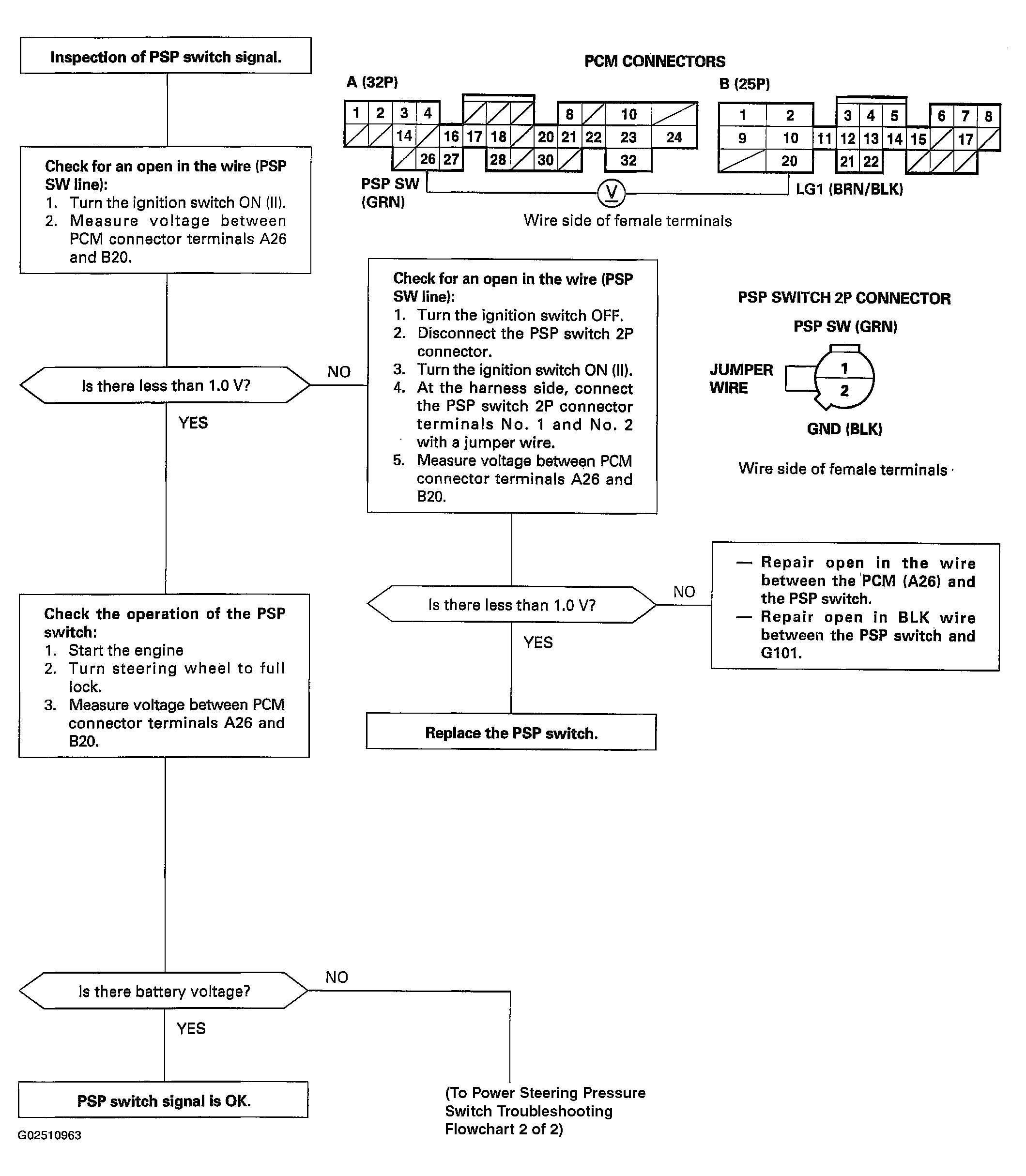

Fig 1: Power Steering Pressure Switch Signal Troubleshooting Flowchart (1 Of 2)
G02510963Courtesy of AMERICAN HONDA MOTOR CO., INC.

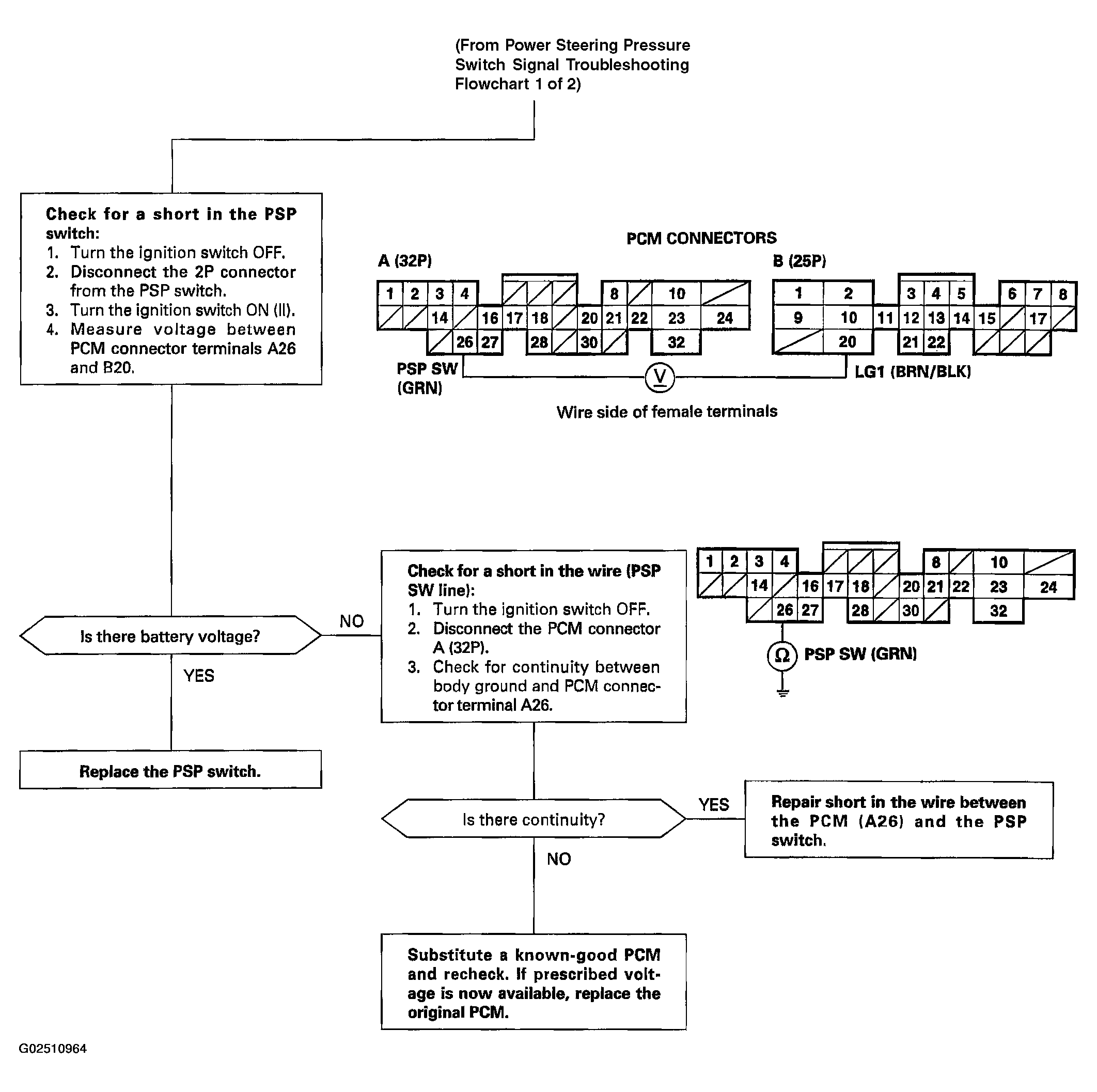

Fig 2: Power Steering Pressure Switch Signal Troubleshooting Flowchart (2 Of 2)
G02510964Courtesy of AMERICAN HONDA MOTOR CO., INC.
