Idle Control System (GX)
>>
System Description
>>
Idle Control System
>>
DTC P0505: Idle control system malfunction
>>
Possible Cause
Possible Cause
IAC valve mechanical malfunction
Throttle body clogged port, improper adjustment
Intake manifold gasket leakage
Vacuum hose leakage
Vacuum leak
ECT sensor incorrect output

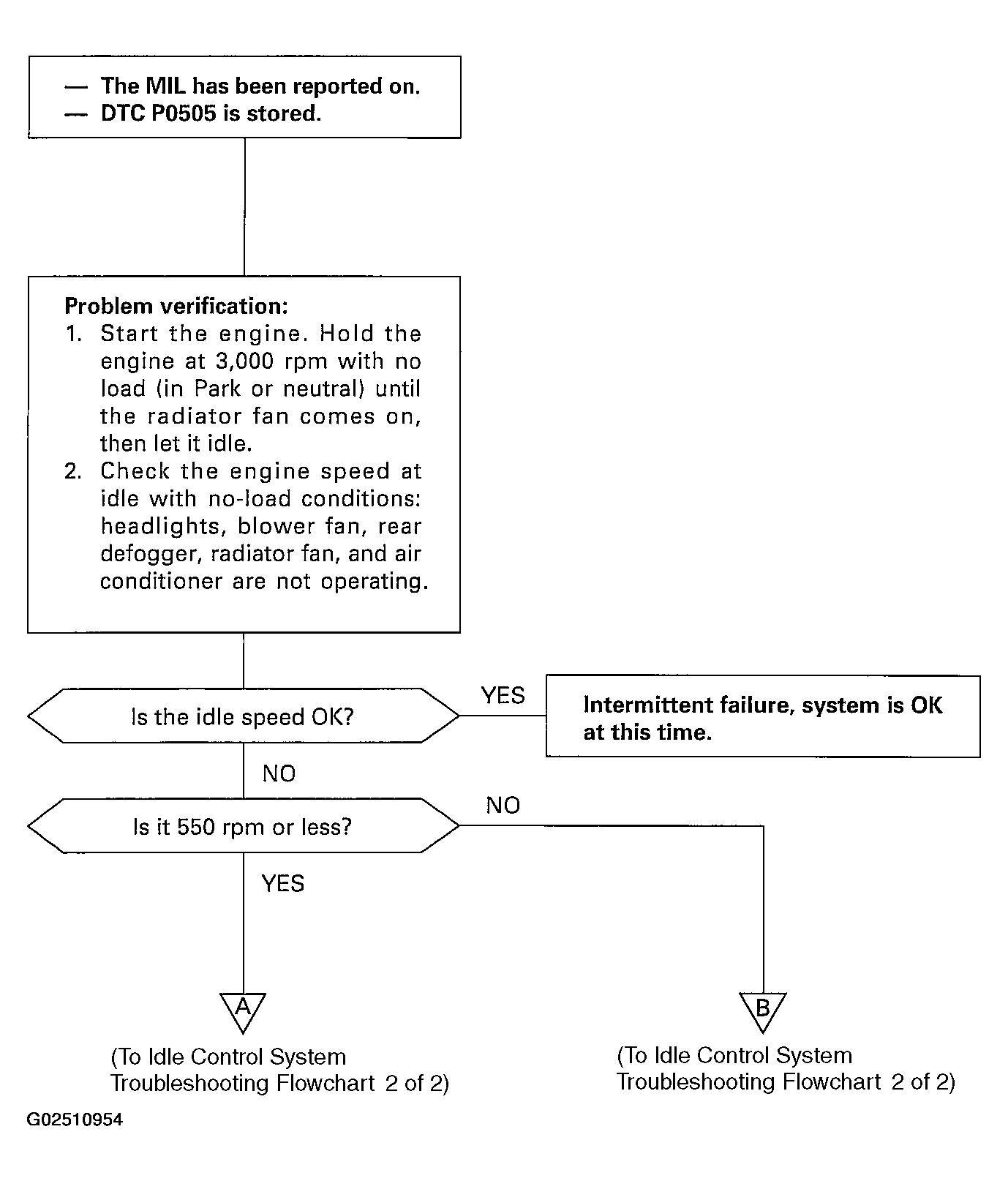

Fig 1: P0505: Idle Control System Troubleshooting Flowchart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

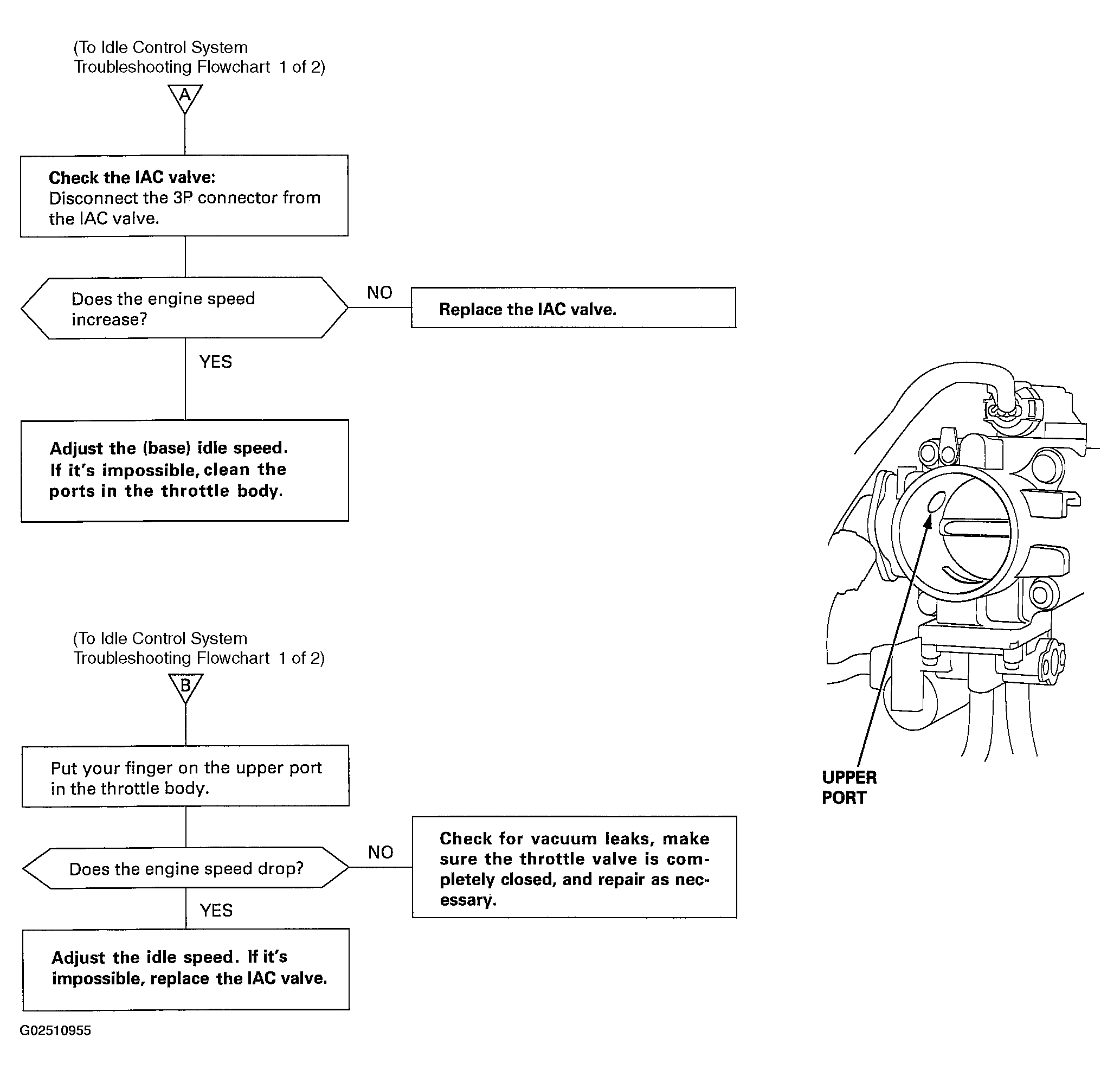

Fig 2: P0505: Idle Control System Troubleshooting Flowchart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
