Home >> Honda >> 1996 >> Prelude VTEC >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Fuses & Circuit Breakers >> UNDERDASH Fuse Panel Identification >> Notes

UNDERDASH Fuse Panel Identification: Notes

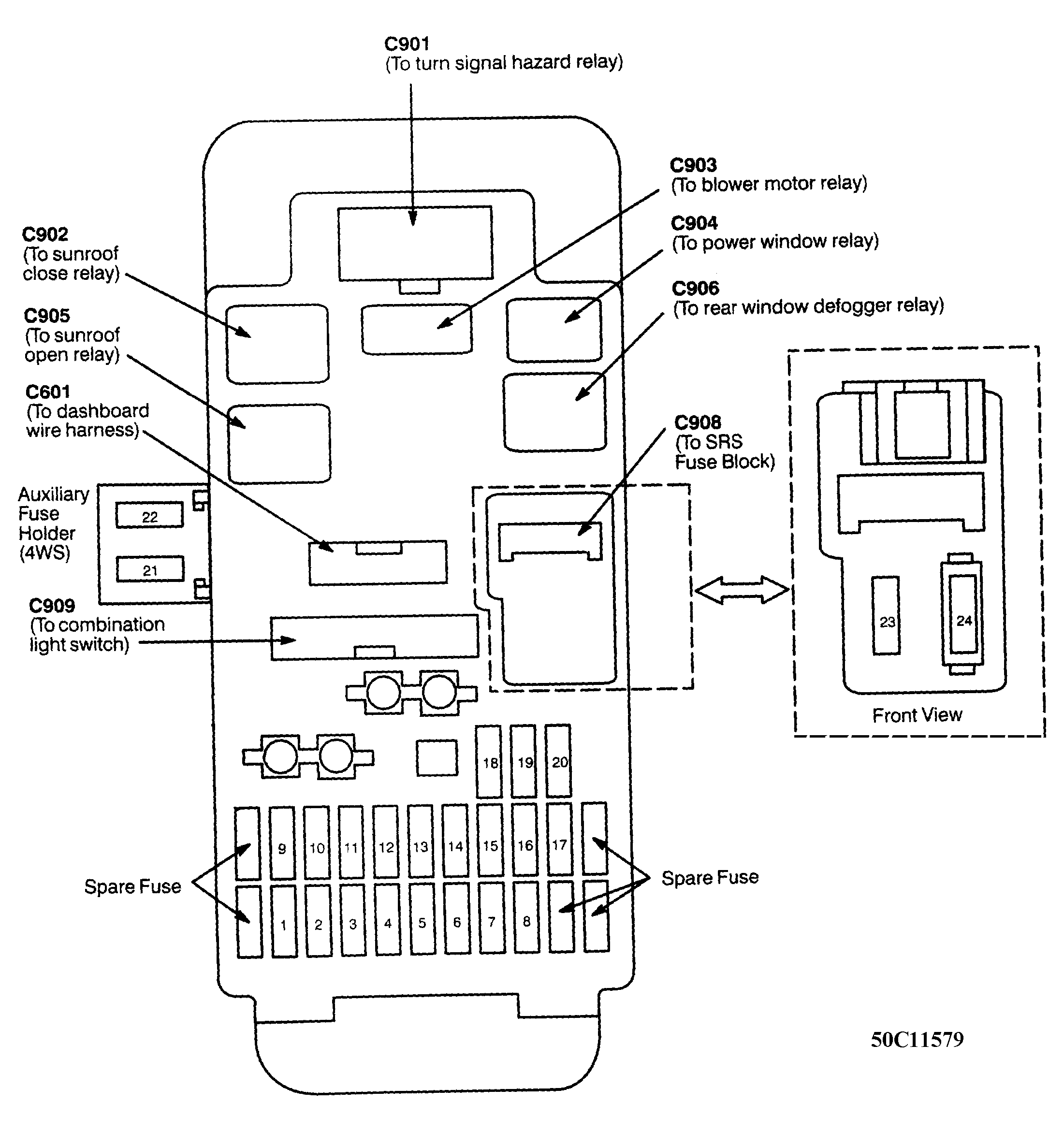

Fig 1: Underdash Fuse Panel Identification

G50C11579

Courtesy of AMERICAN HONDA MOTOR CO., INC.
