Code 41 - Heated Oxygen Sensor (Ho2S) Heater

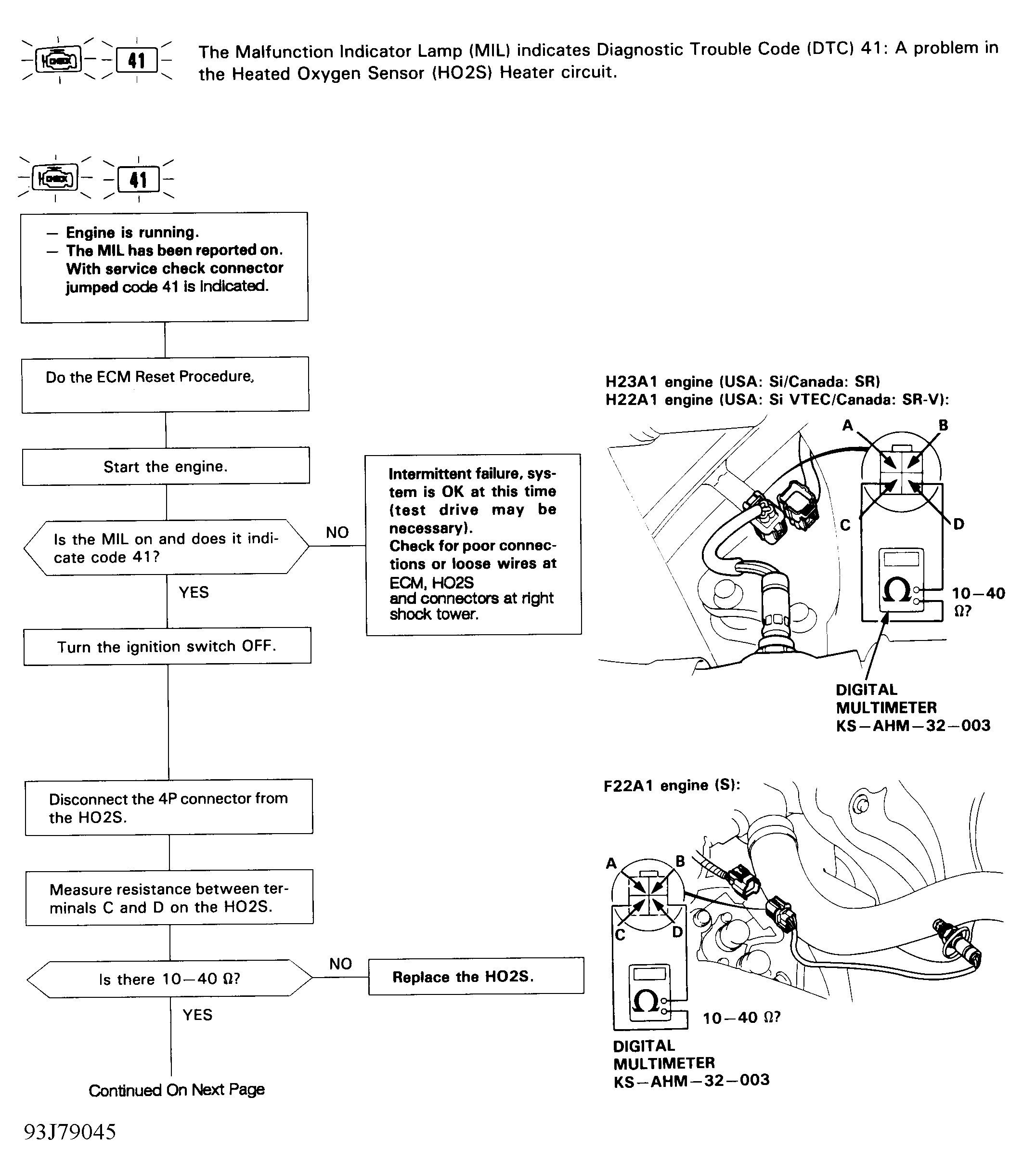

Fig 1: Code 41 Flow Chart (1 Of 3) Heated Oxygen Sensor (HO2S) Heater
G93J79045

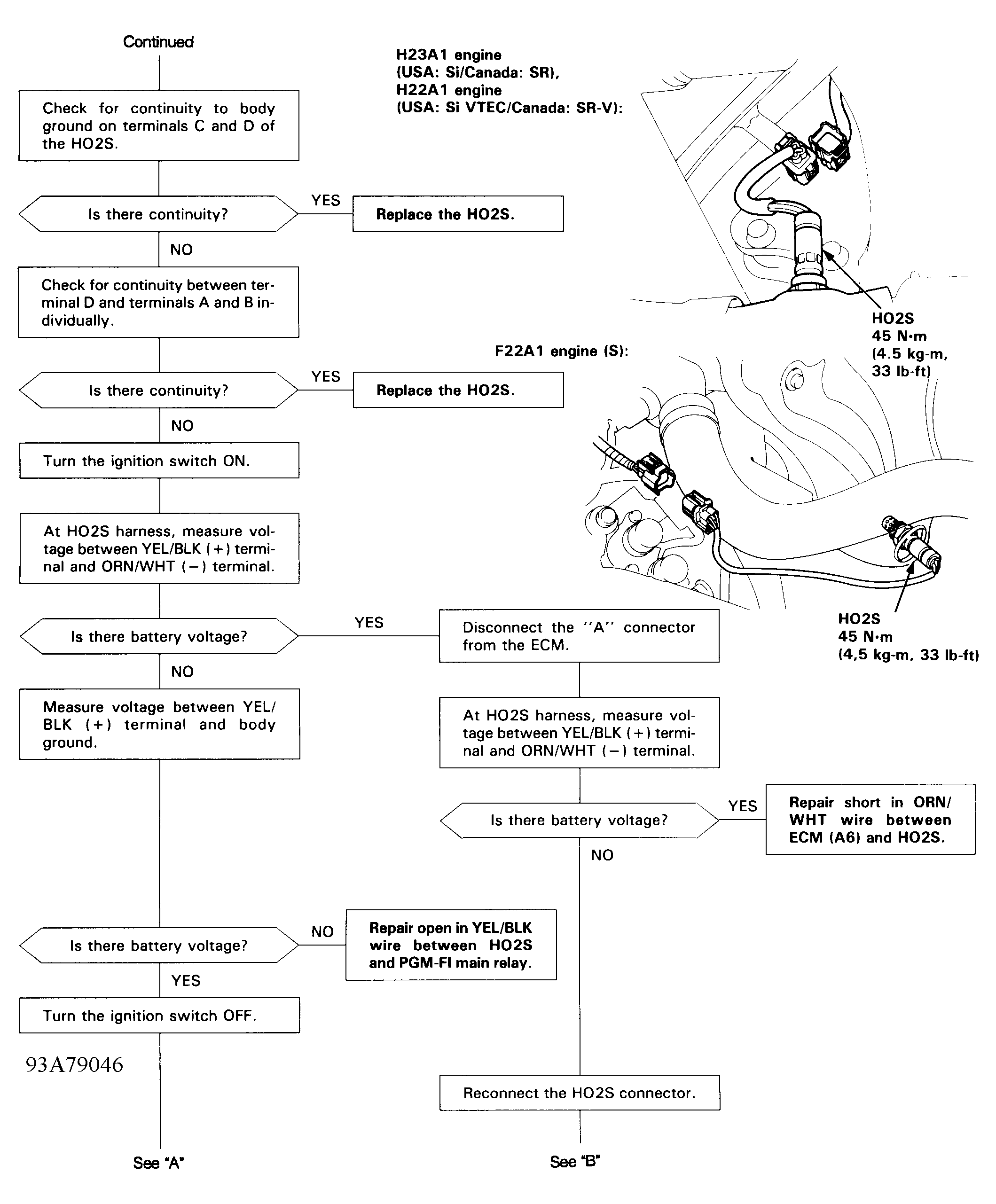

Fig 2: Code 41 Flow Chart (2 Of 3) Heated Oxygen Sensor (HO2S) Heater
G93A79046

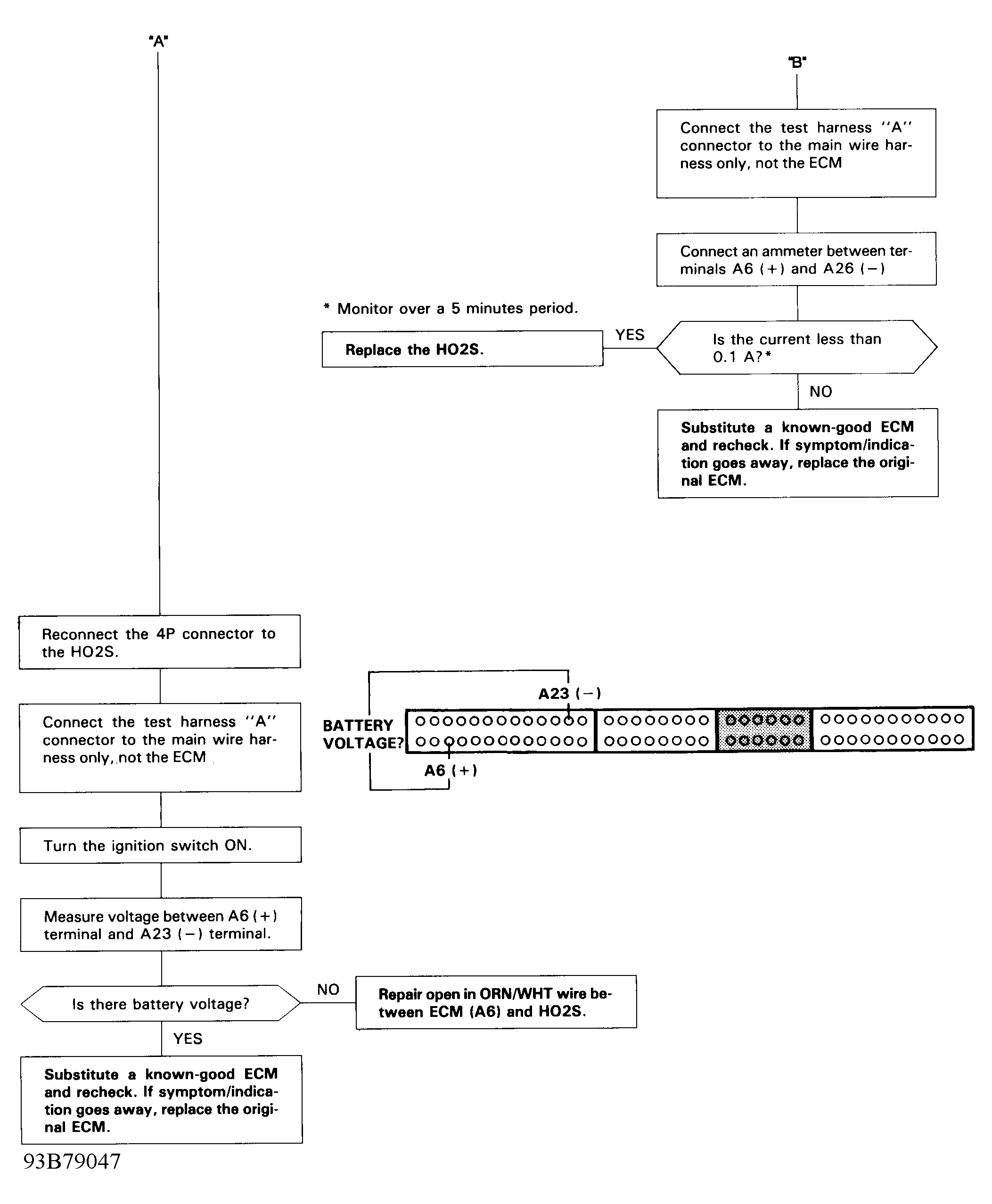

Fig 3: Code 41 Flow Chart (3 Of 3) Heated Oxygen Sensor (HO2S) Heater
G93B79047
