Code 14 - Idle Air Control (IAC) Valve

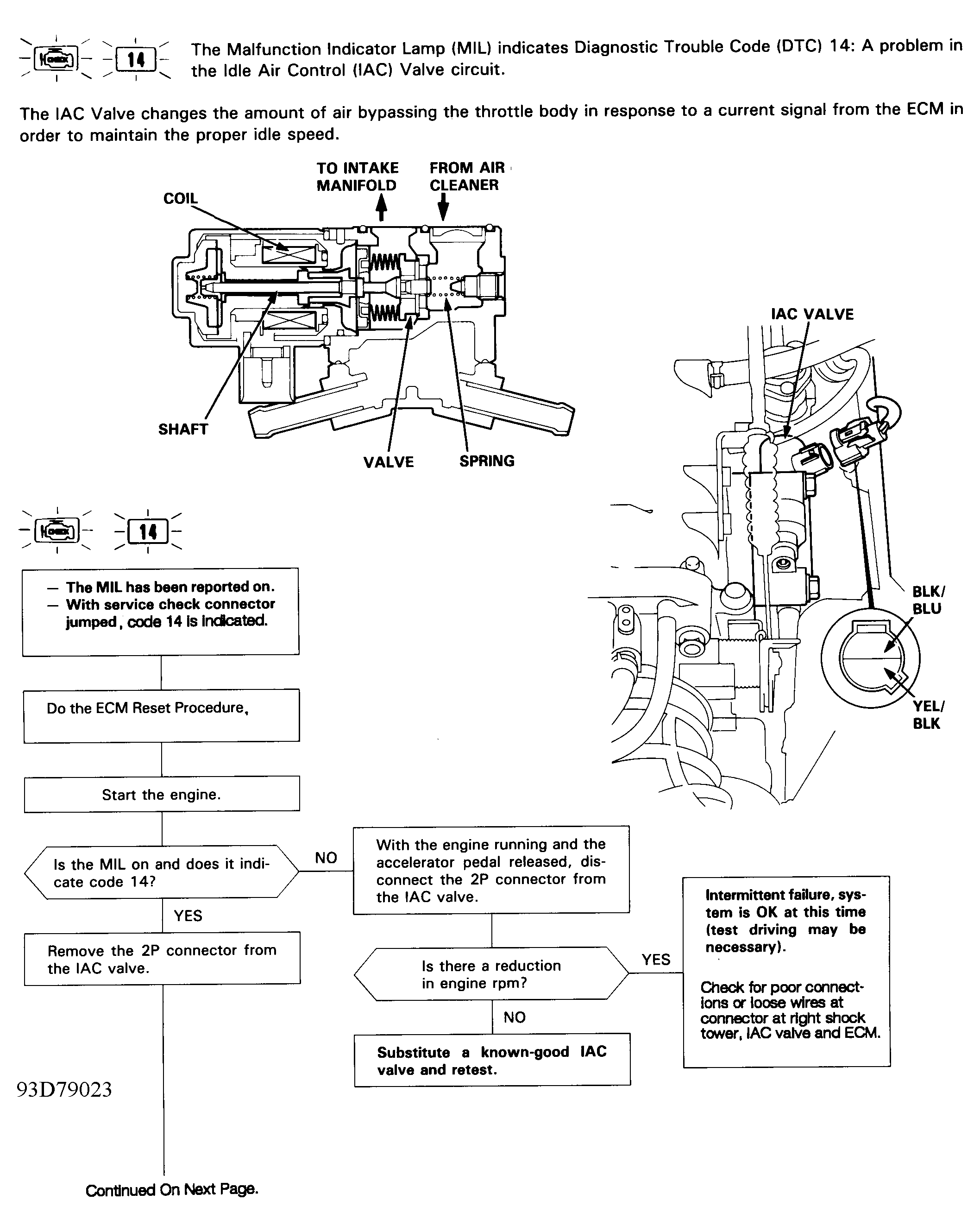

Fig 1: Code 14 Flow Chart (1 Of 2) Idle Air Control (IAC) Valve

G93D79023

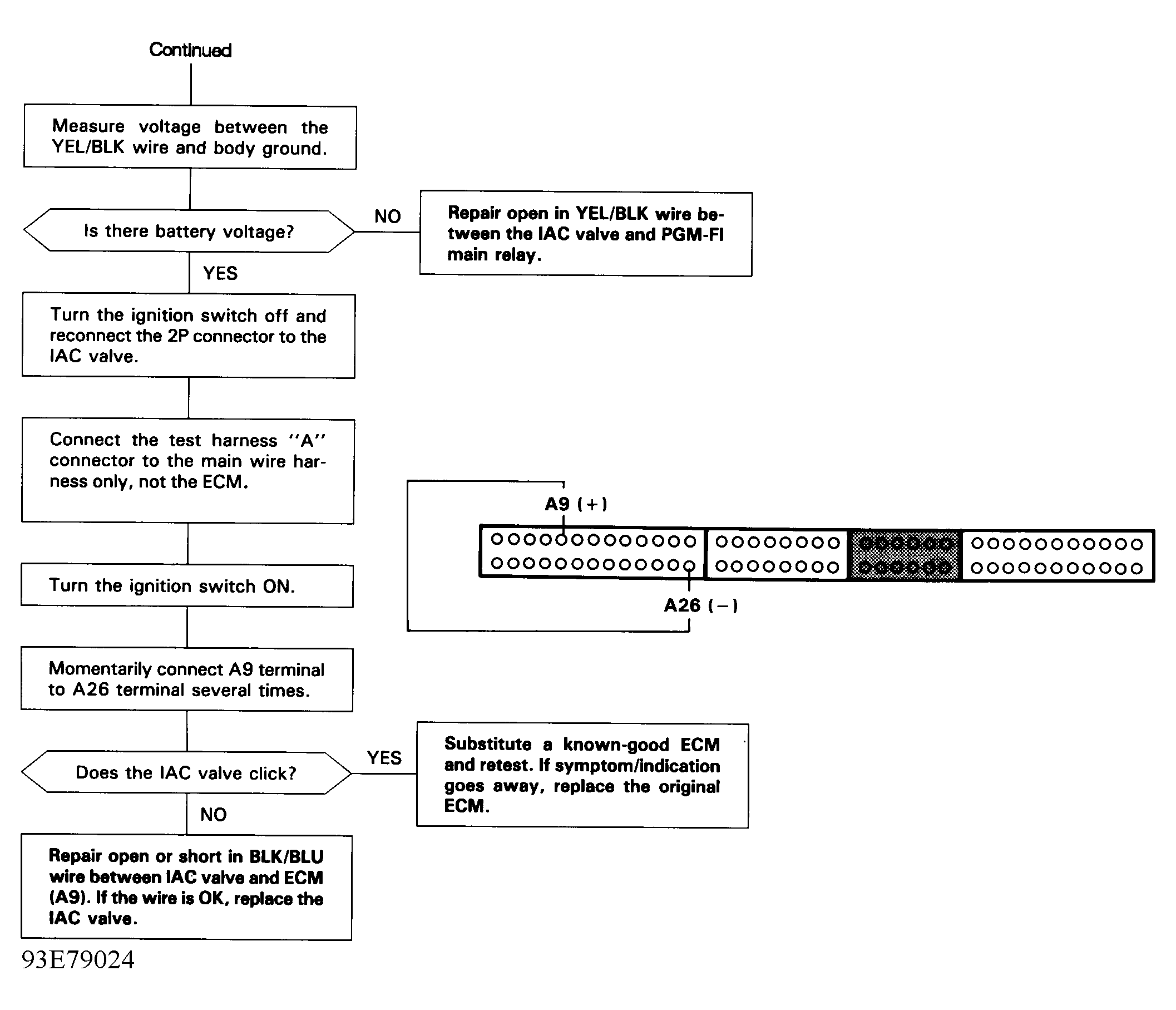

Fig 2: Code 14 Flow Chart (2 Of 2) Idle Air Control (IAC) Valve

G93E79024
