Key-In/Seat Belt Reminder System

For connector terminal identification, see Figure . For input test, see Fig 1 .

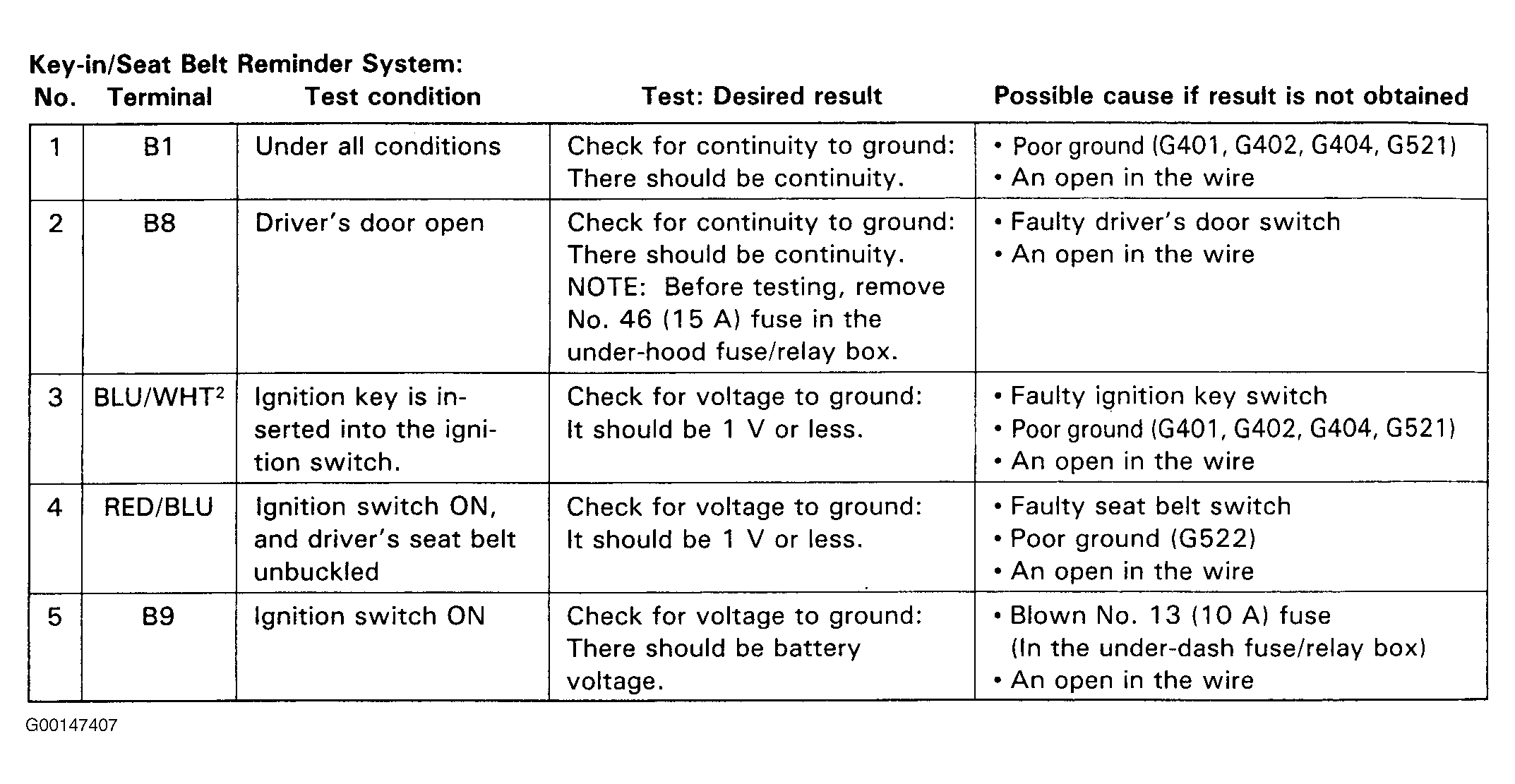

Fig 1: Key-In/Seat Belt Reminder System Input Test
G00147407Courtesy of AMERICAN HONDA MOTOR CO., INC.
