Code 48 - Heated Oxygen Sensor (Ho2S) D15Z1 Federal Model

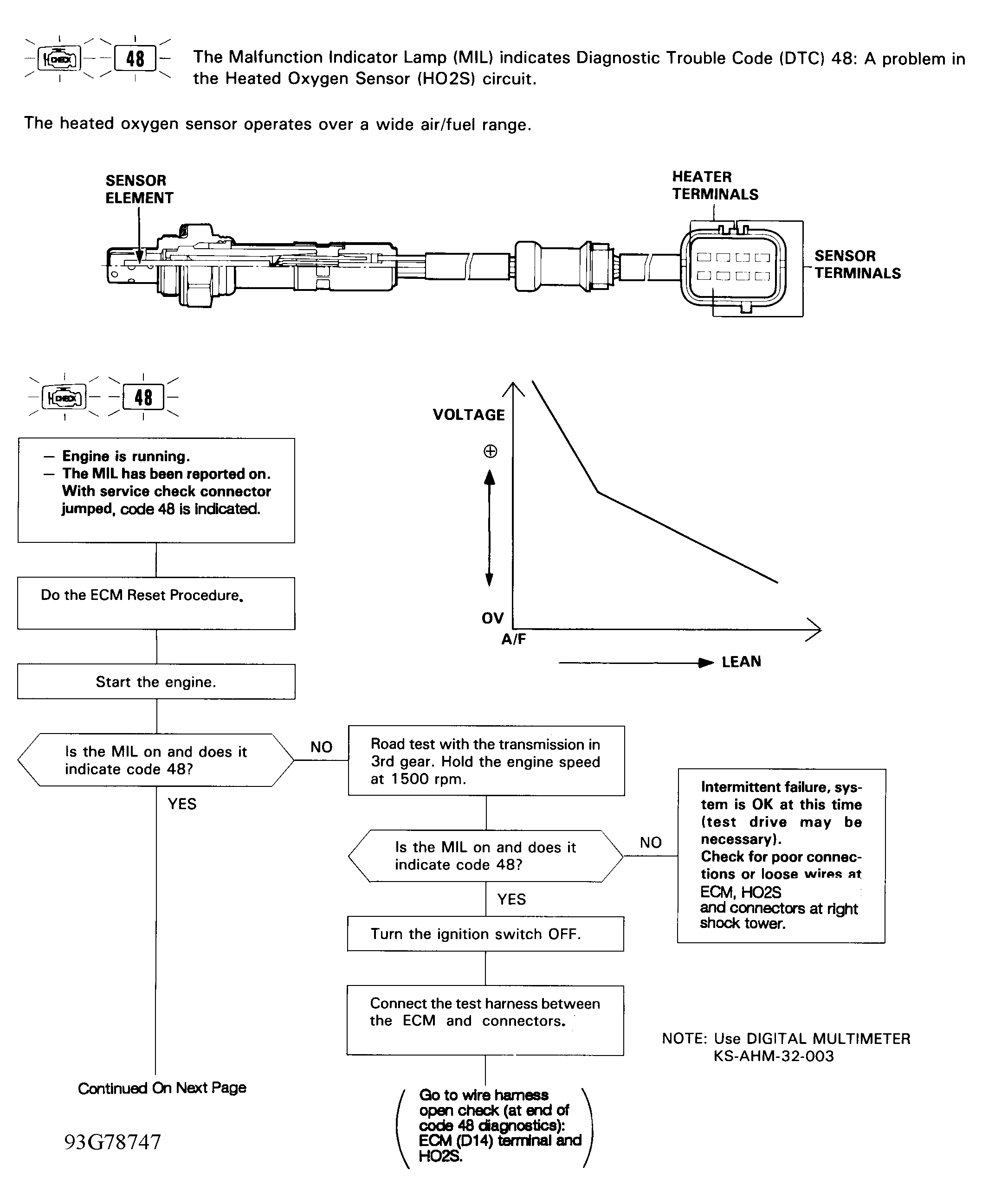

Fig 1: Code 48 Flow Chart (1 of 6) Heated Oxygen Sensor (HO2S) D15Z1 Federal Model
G93G78747

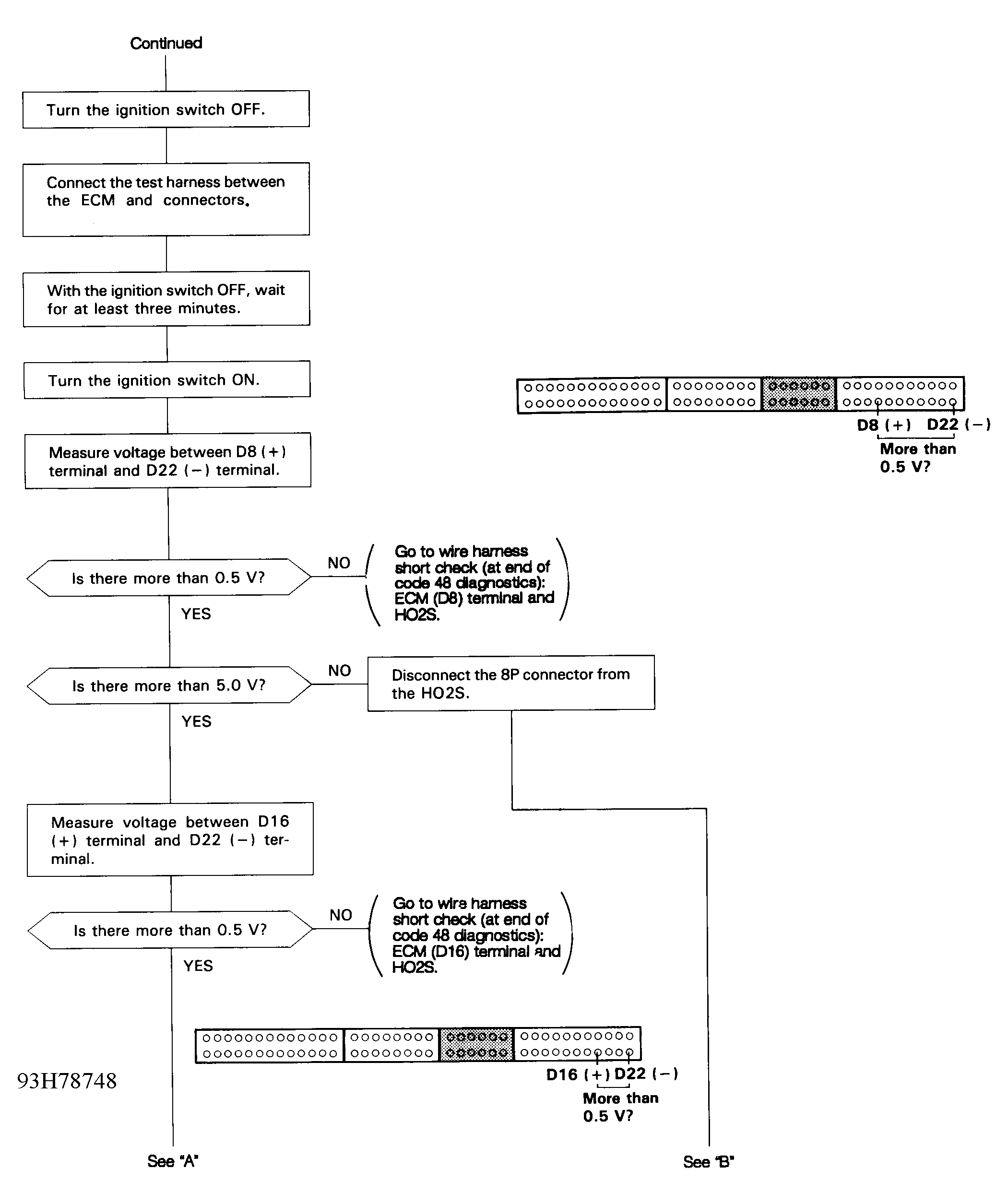

Fig 2: Code 48 Flow Chart (2 of 6) Heated Oxygen Sensor (HO2S) D15Z1 Federal Model
G93H78748

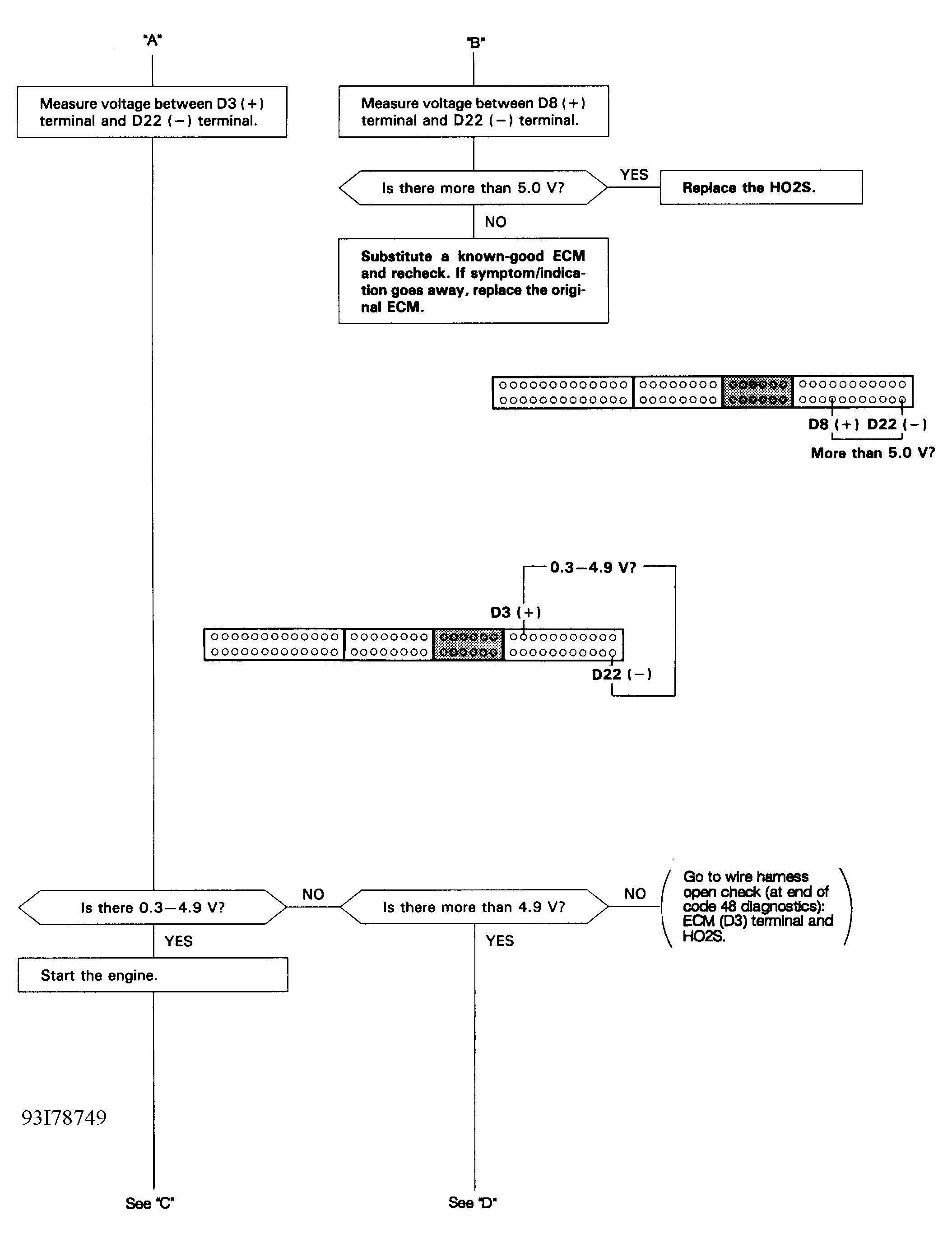

Fig 3: Code 48 Flow Chart (3 of 6) Heated Oxygen Sensor (HO2S) D15Z1 Federal Model
G93I78749

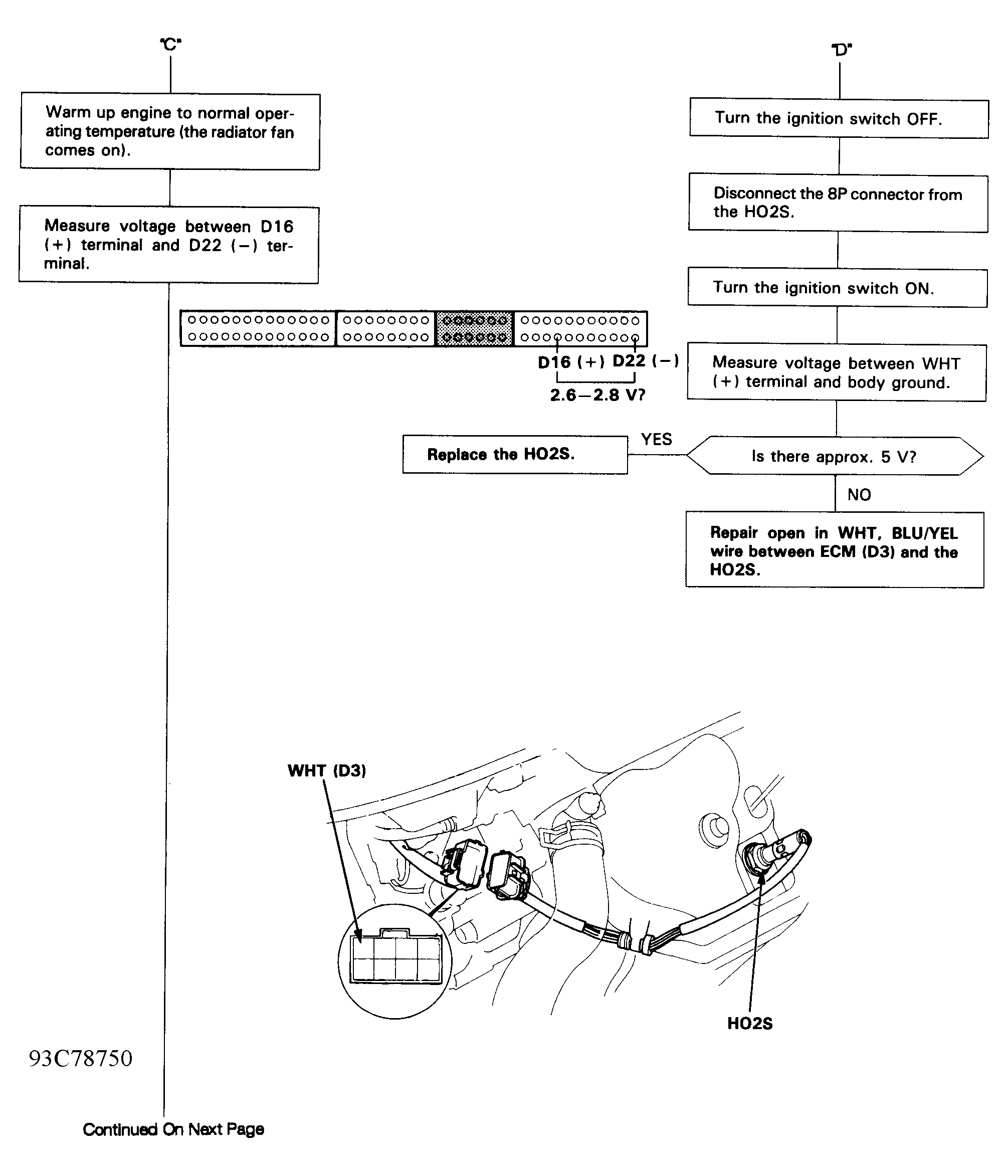

Fig 4: Code 48 Flow Chart (4 of 6) Heated Oxygen Sensor (HO2S) D15Z1 Federal Model
G93C78750

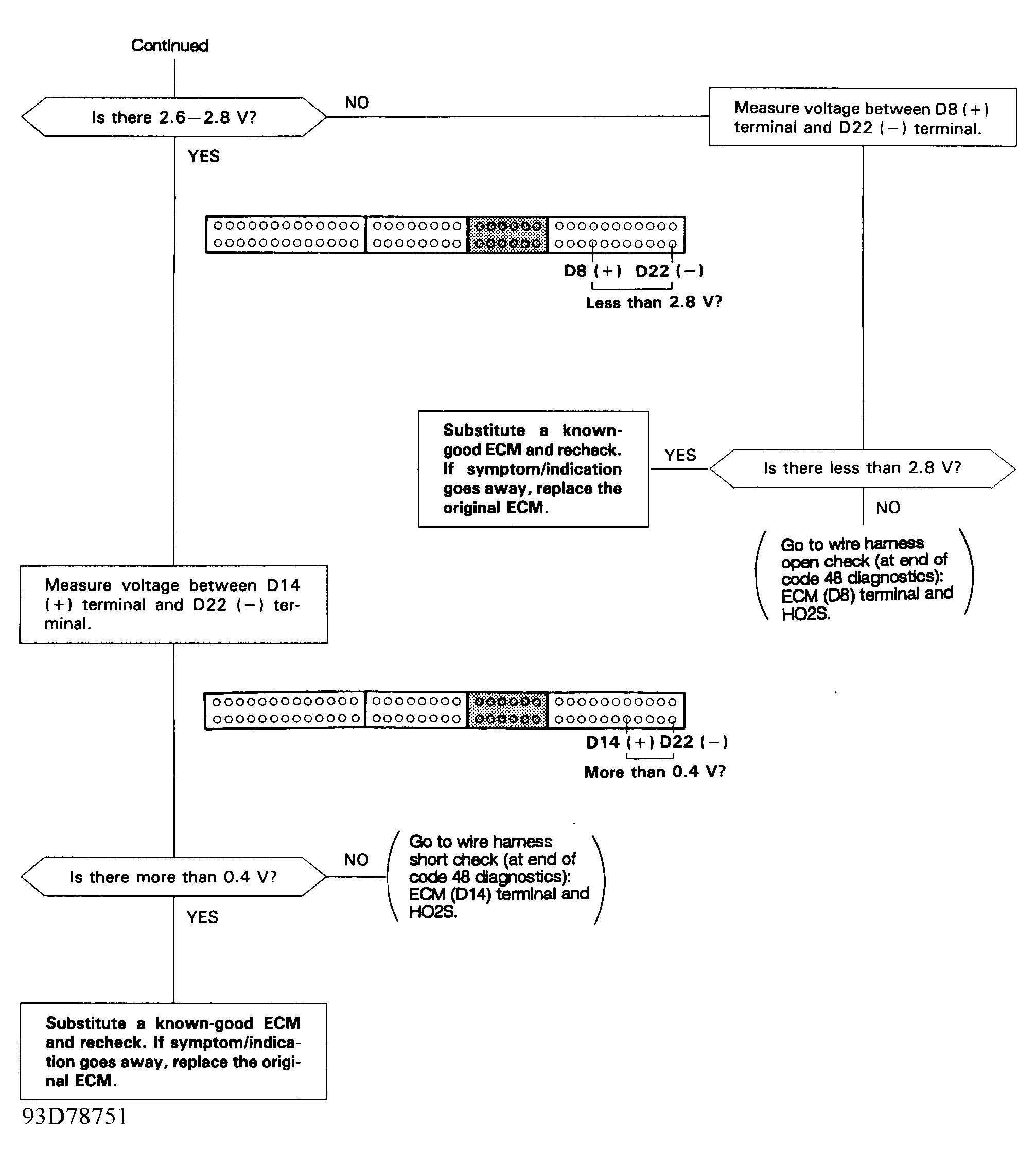

Fig 5: Code 48 Flow Chart (5 of 6) Heated Oxygen Sensor (HO2S) D15Z1 Federal Model
G93D78751

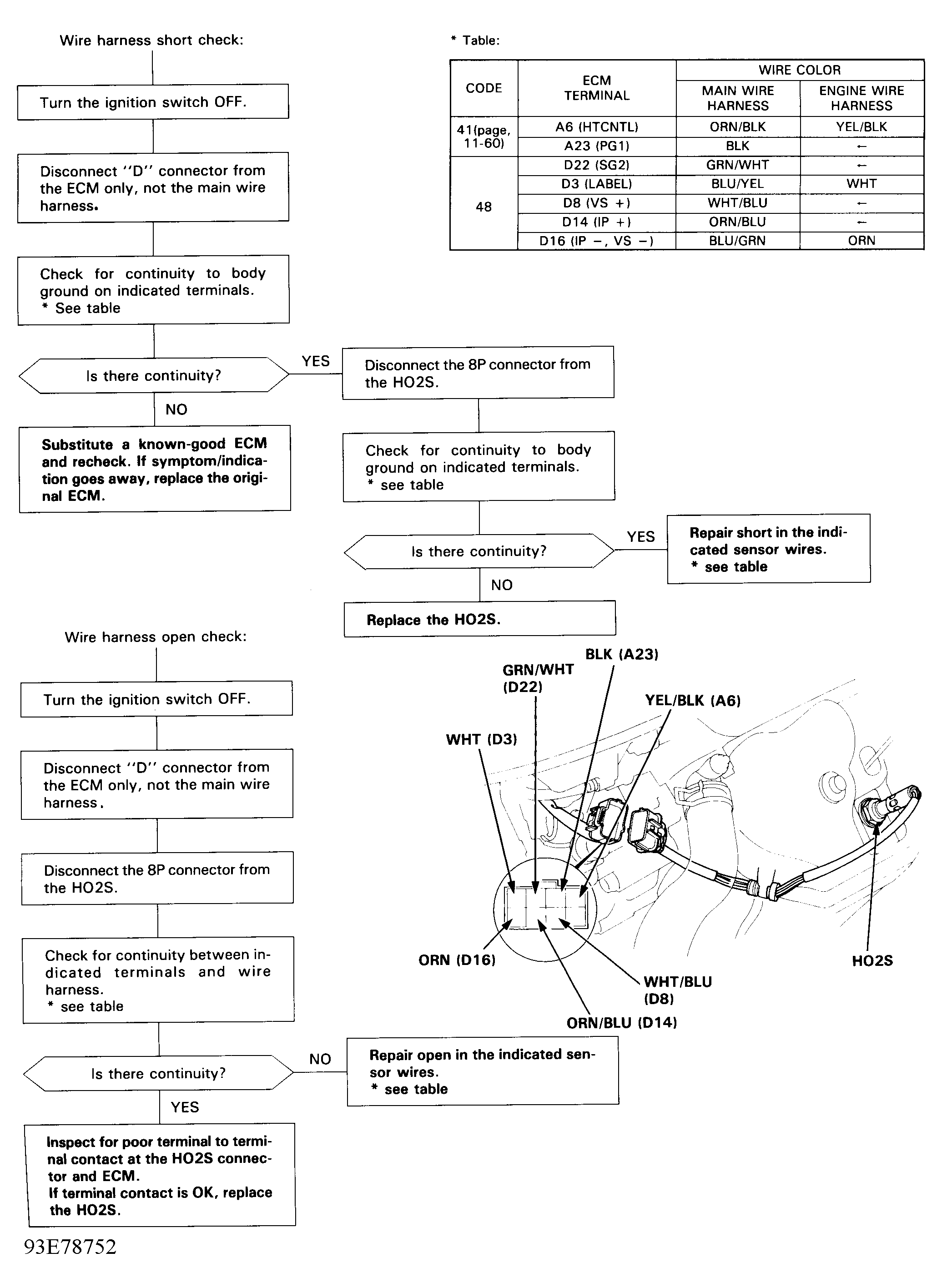

Fig 6: Code 48 Flow Chart (6 of 6) Heated Oxygen Sensor (HO2S) D15Z1 Federal Model
G93E78752
