Mode Control Switch Test

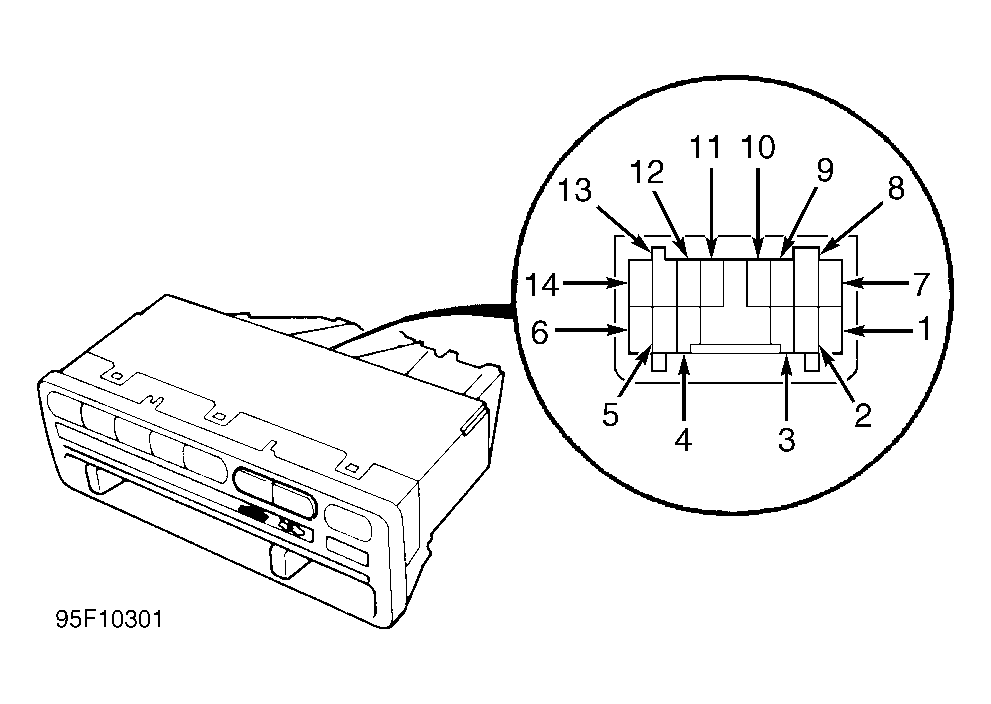

Remove heater control panel. Disconnect 14-pin connector. Check for continuity between specified terminals of heater control panel 14-pin connector. See the MODE CONTROL SWITCH TEST table for terminal identification. Also, see Fig 1 or Figure . If continuity does not exist, replace heater control panel.
MODE CONTROL SWITCH TEST
| Switch Position | Continuity Should Exis Between Terminals |
|---|---|
| Vent (Face) | 4 & 1 |
| Bi-Level (Face/Foot) | 4 & 2 |
| Heat (Foot) | 4 & 3 |
| Heat/Defrost (Foot/Windshield) | 4 & 7 |
| Defrost (Windshield) | 4 & 8 |
