Problem Code 32, 36

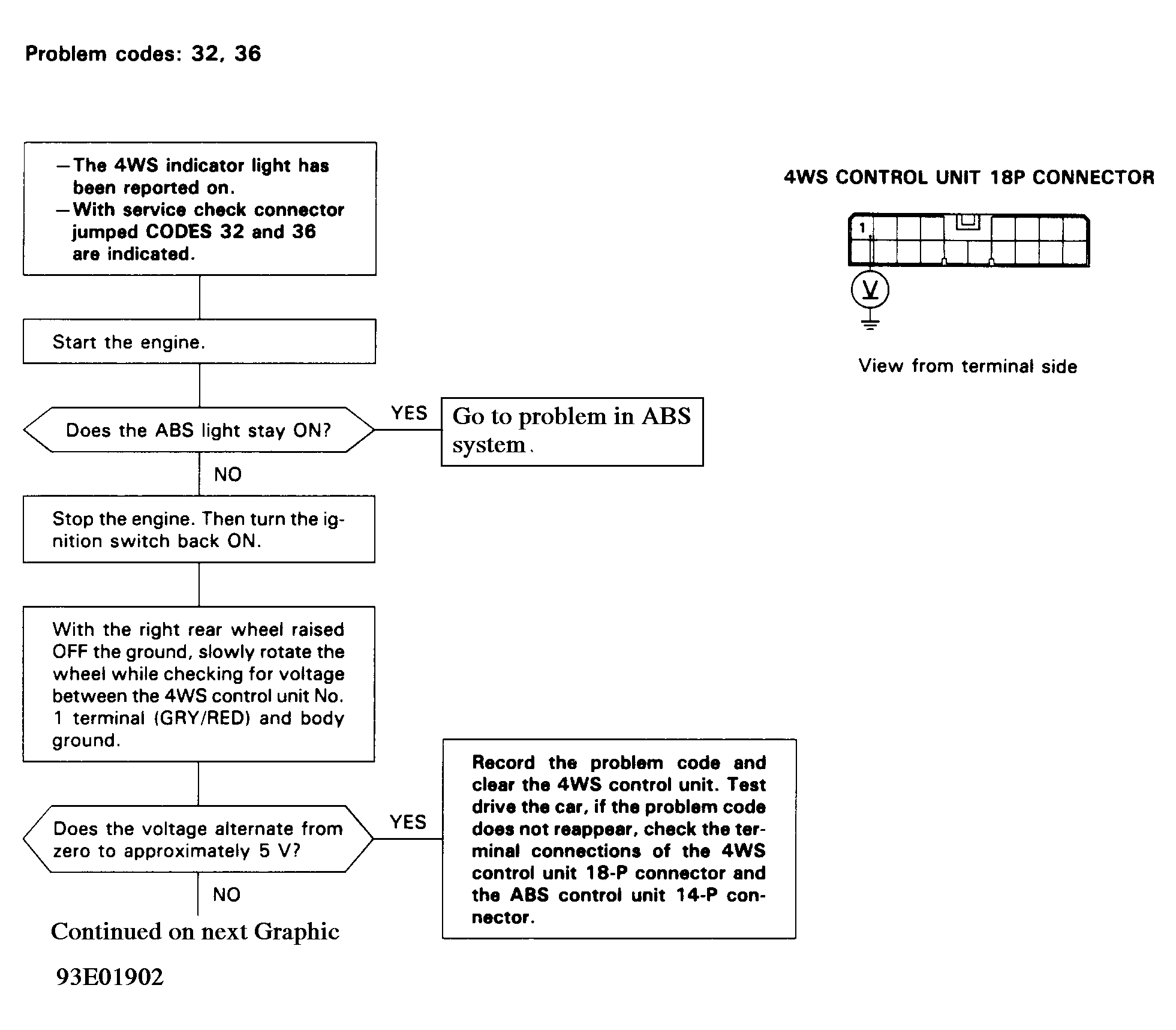

Fig 1: Problem Code 32, 36 (1 Of 2)

G93E01902

Courtesy of AMERICAN HONDA MOTOR CO., INC.

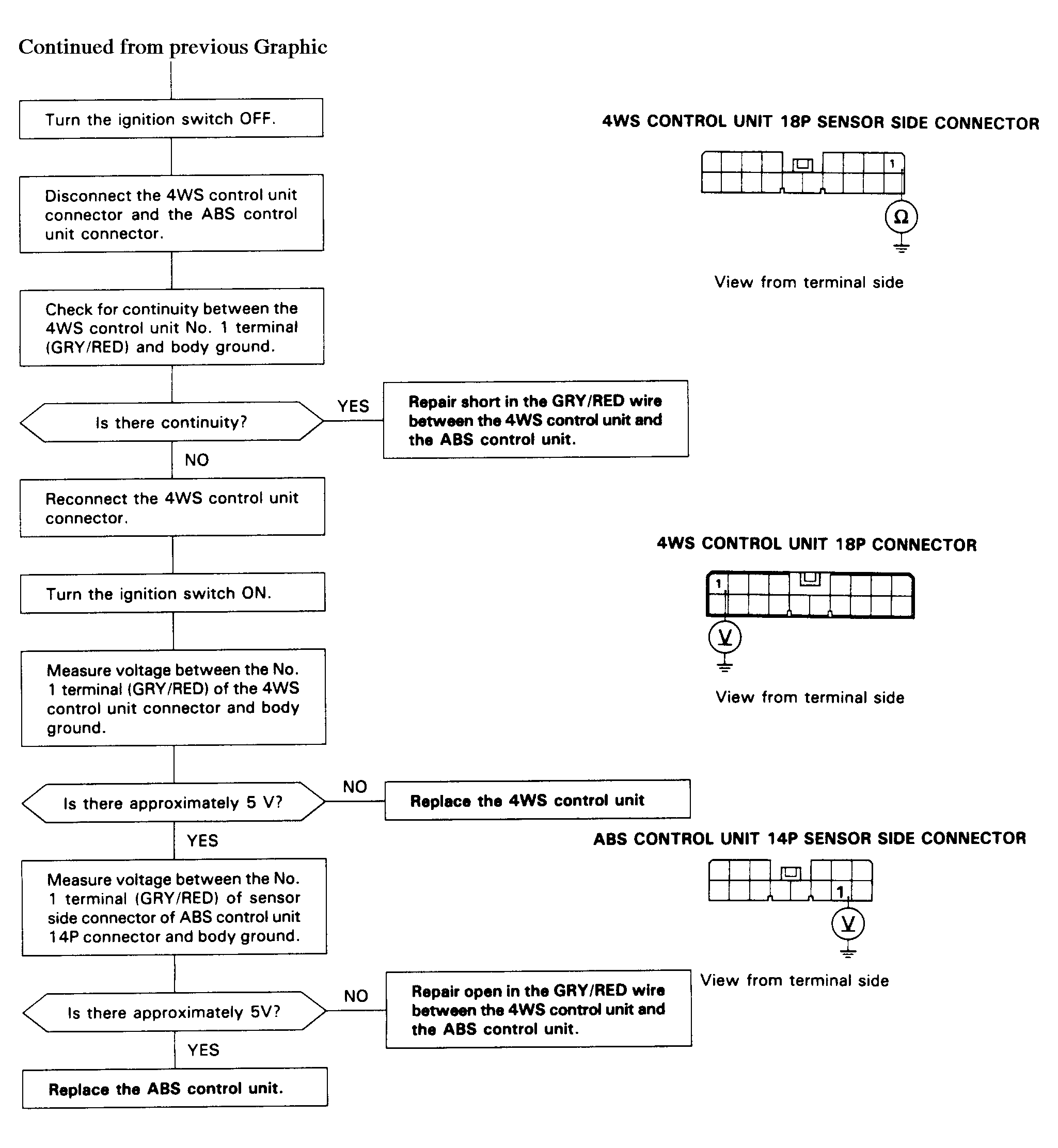

Fig 2: Problem Code 32, 36 (2 Of 2)

G93G01903

Courtesy of AMERICAN HONDA MOTOR CO., INC.
