Main Switch: Civic
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1992 Honda Prelude, 1992 Honda Civic, 1992 Honda Accord, 1991 Honda Prelude, and 1991 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

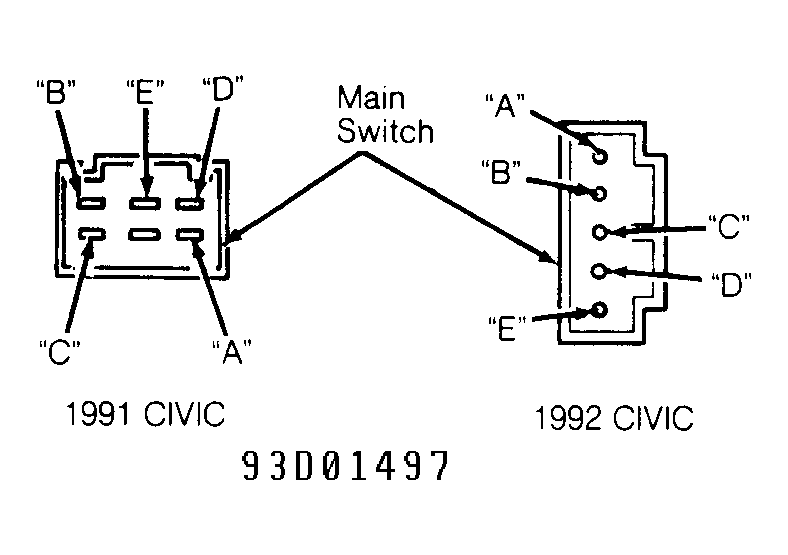

- Turn ignition off. Carefully pry main switch from dashboard. Ensure main switch is off. Using a DVOM, check for continuity between main switch terminals "B" and "C" and terminals "D" and "E". See Fig 1 . Continuity should be present. If continuity is present, go to next step. If continuity is not present, replace defective bulb inside main switch. Locate bulb on side of main switch, and rotate bulb 1/2 turn to remove from switch. After replacing bulb inside main switch, if main switch continuity readings are not as specified, replace malfunctioning main switch.
- Ensure main switch is on. Using a DVOM, check for continuity between main switch terminals "A" and "B", "B" and "C", and "D" and "E". See Fig 1 . Continuity should be present. If continuity is present, main switch is okay. If continuity is not present between main switch terminals "A" and "B", replace malfunctioning main switch. If continuity is not present between main switch terminals "B" and "C" and terminals "D" and "E", go to next step.
- Replace defective bulb inside main switch. Locate bulb on side of main switch, and rotate bulb 1/2 turn to remove from switch. After replacing bulb inside main switch, if main switch continuity readings are not as specified, replace malfunctioning main switch.
