Code 5 To 5-8 Speed Sensor(S)

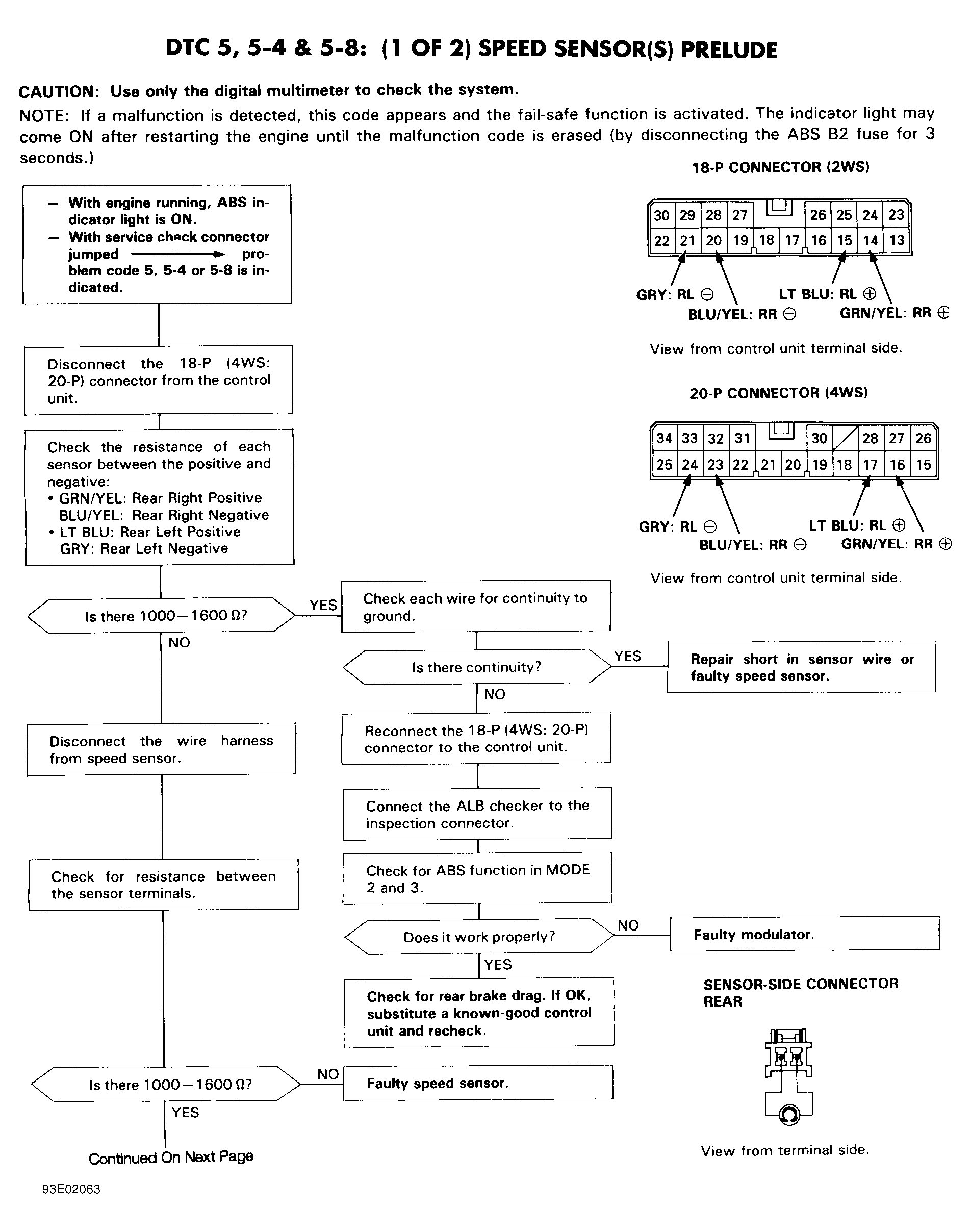

Fig 1: Code 5 To 5-8 Flow Chart (1 Of 2), Speed Sensor(s)
G93E02063Courtesy of AMERICAN HONDA MOTOR CO., INC.

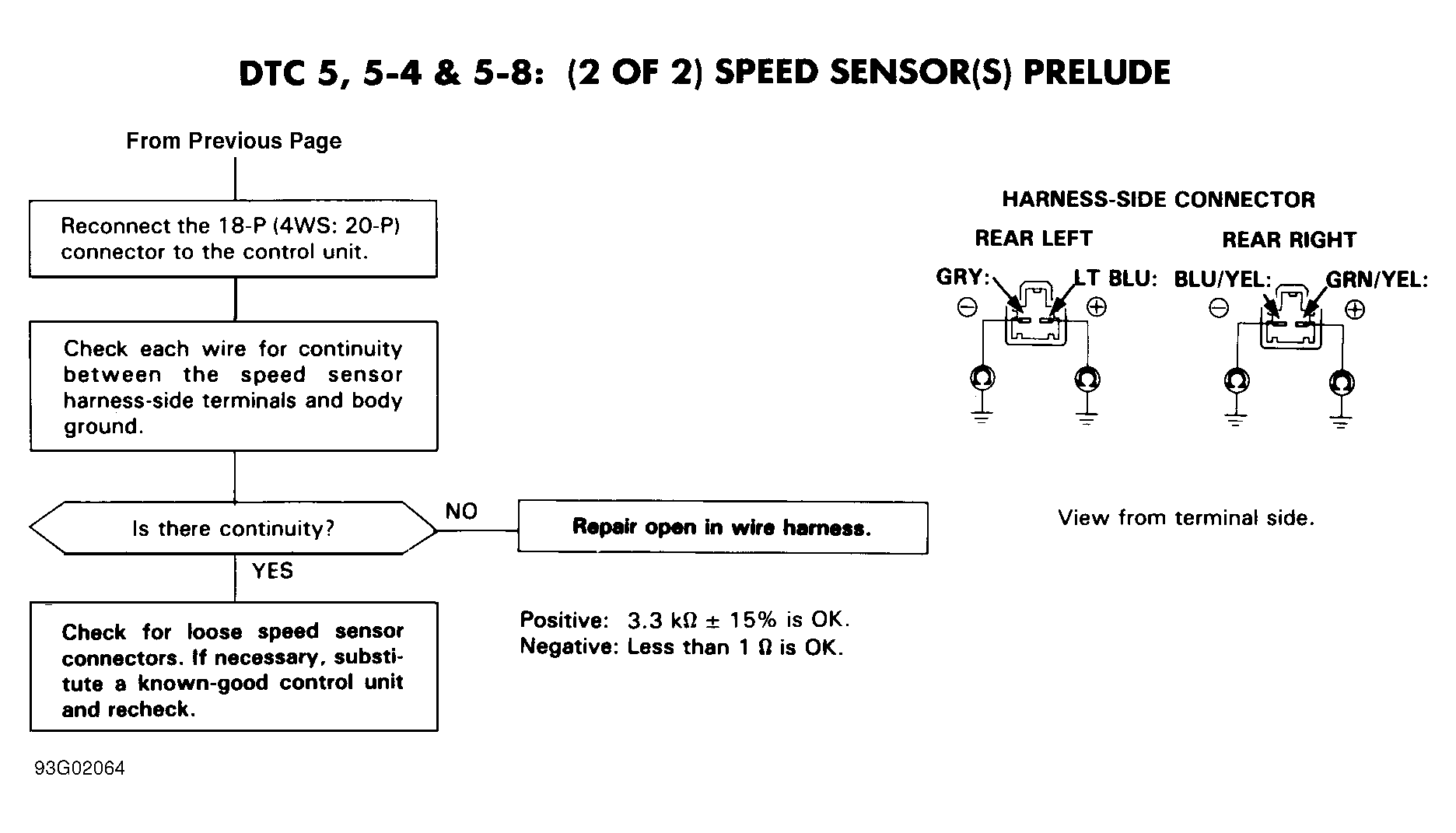

Fig 2: Code 5 To 5-8 Flow Chart (2 Of 2), Speed Sensor(s)
G93G02064Courtesy of AMERICAN HONDA MOTOR CO., INC.
