Code 1-4 Pressure Switch Circuit

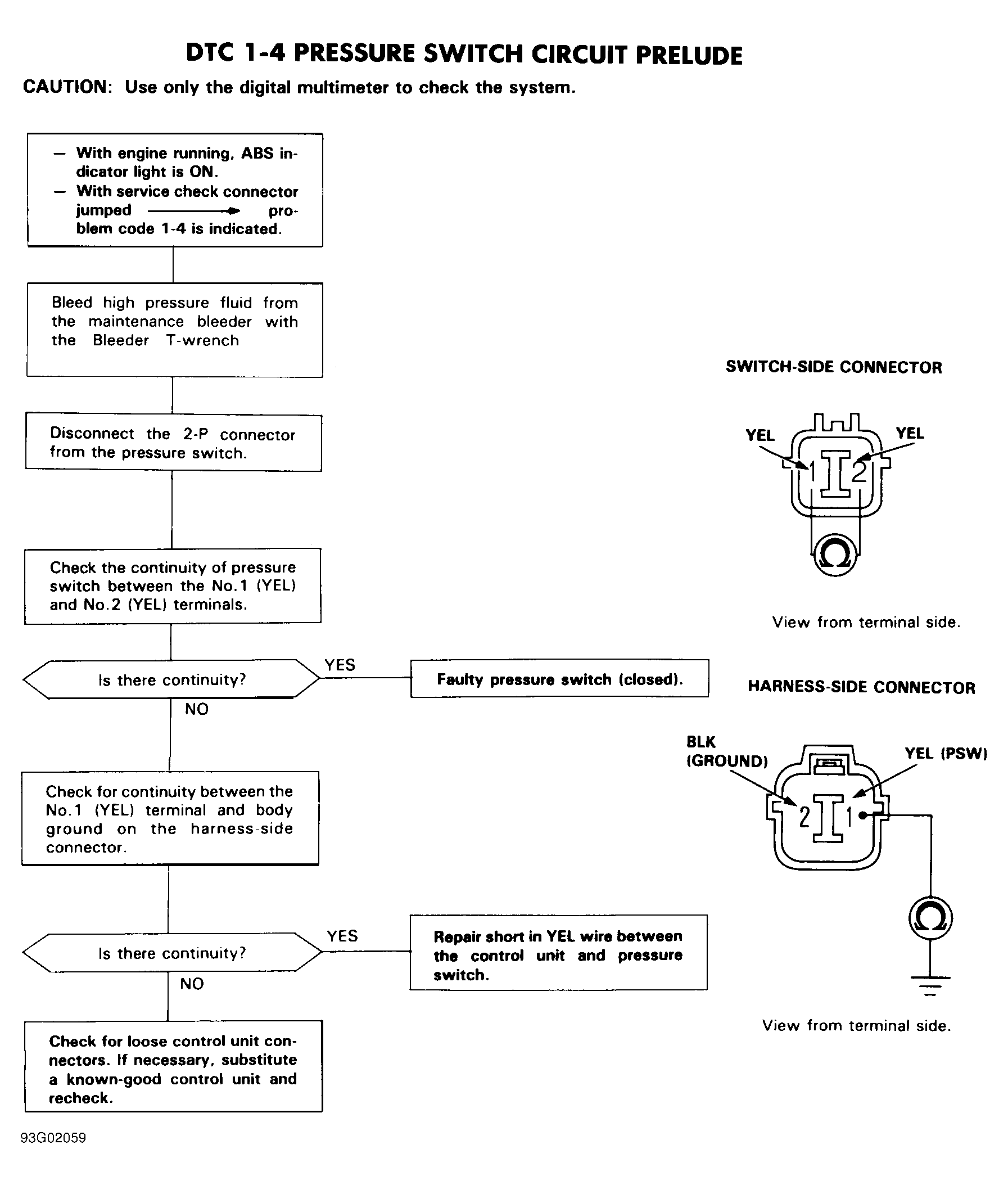

Fig 1: Code 1-4 Flow Chart, Pressure Switch Circuit

G93G02059

Courtesy of AMERICAN HONDA MOTOR CO., INC.
