Code 1-2 Pump Motor Circuit

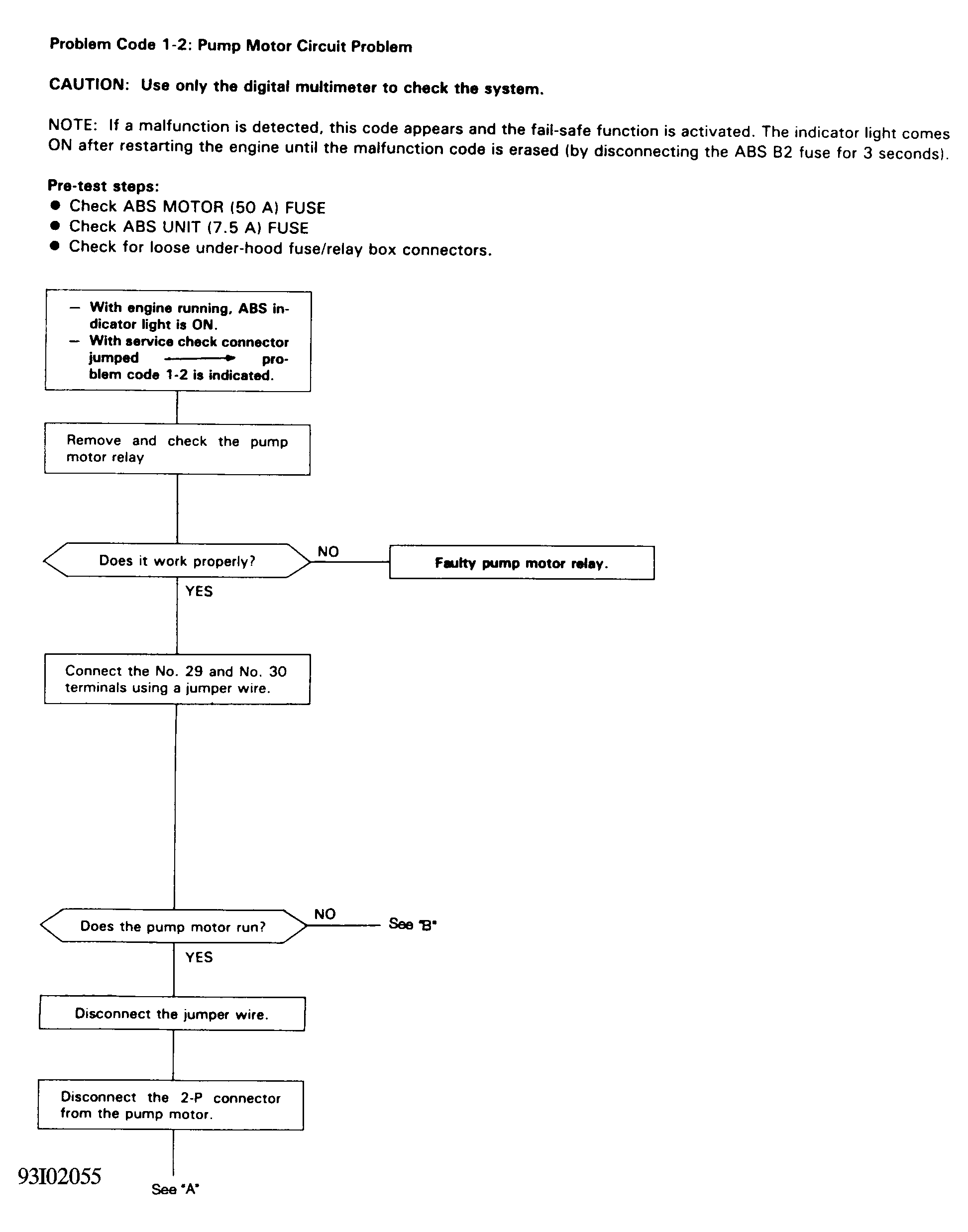

Fig 1: Code 1-2 Flow Chart (1 Of 3), Pump Motor Circuit
G93I02055Courtesy of AMERICAN HONDA MOTOR CO., INC.

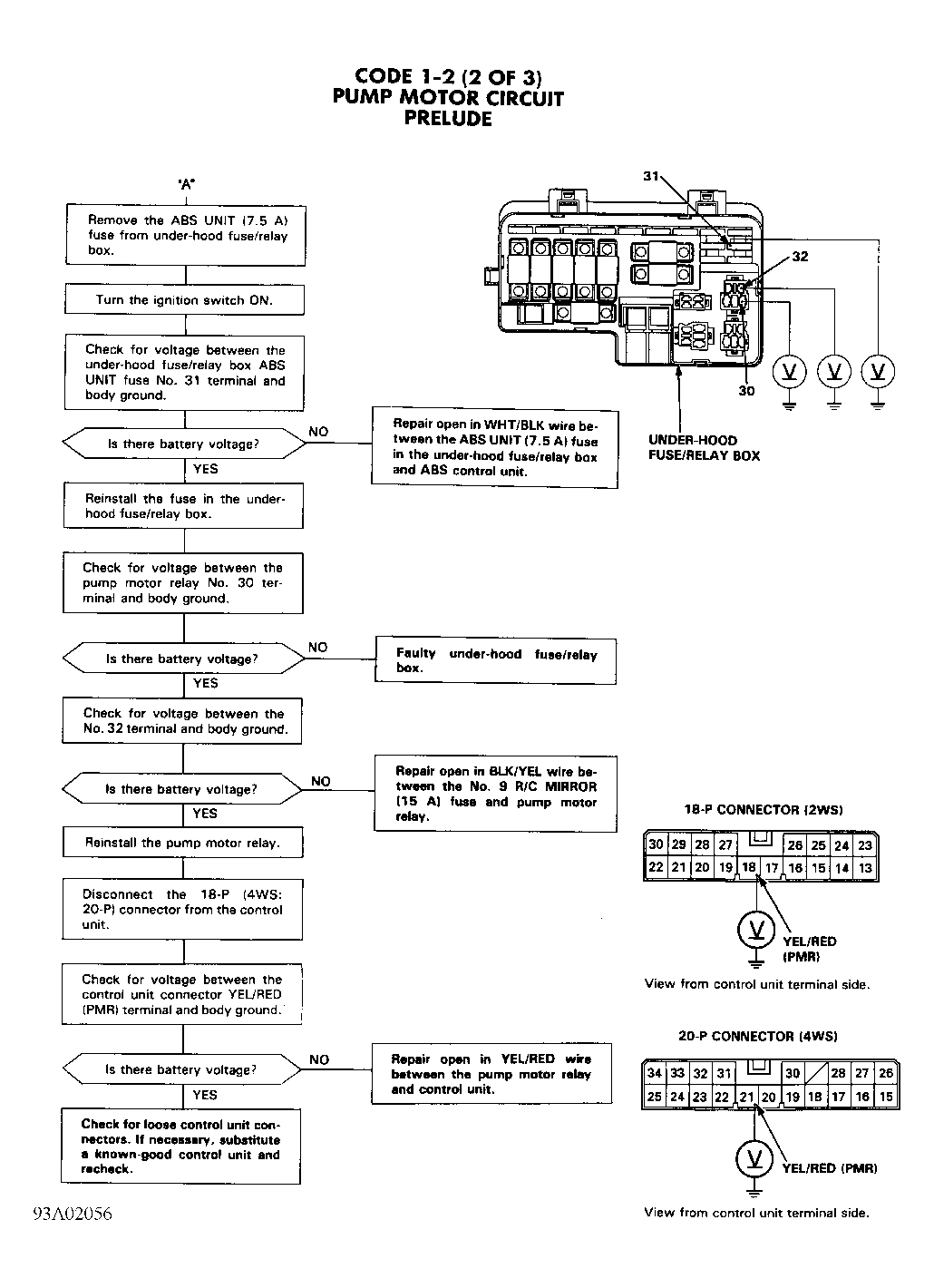

Fig 2: Code 1-2 Flow Chart (2 Of 3), Pump Motor Circuit
G93A02056Courtesy of AMERICAN HONDA MOTOR CO., INC.

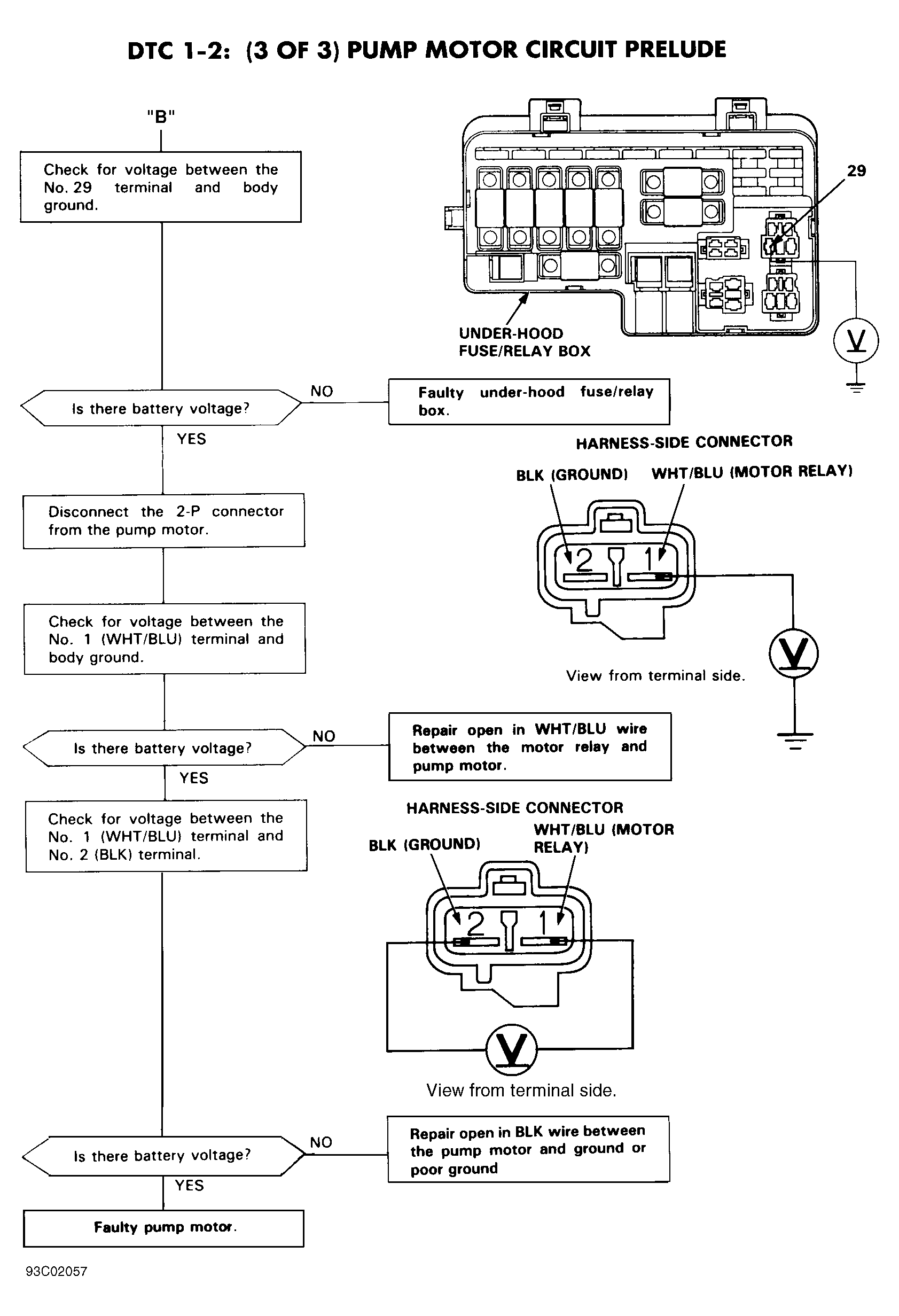

Fig 3: Code 1-2 Flow Chart (3 Of 3), Pump Motor Circuit
G93C02057Courtesy of AMERICAN HONDA MOTOR CO., INC.
