Side Marker Light Flasher System

For connector terminal identification, see Figure . For input test, see Fig 1 .

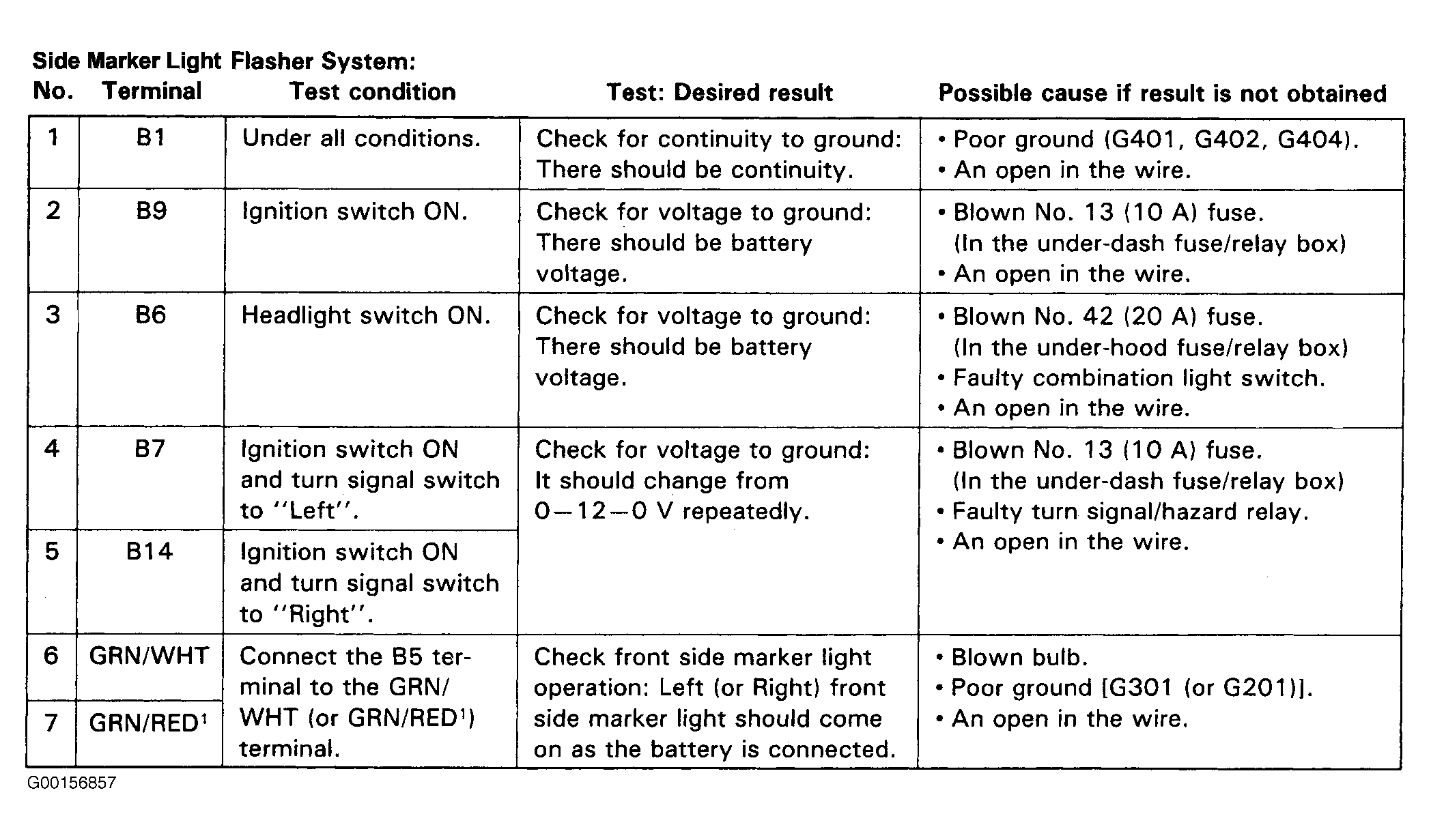

Fig 1: Side Marker Flasher System Input Test

G00156857

Courtesy of AMERICAN HONDA MOTOR CO., INC.
