Code 1-4 Pressure Switch Circuit

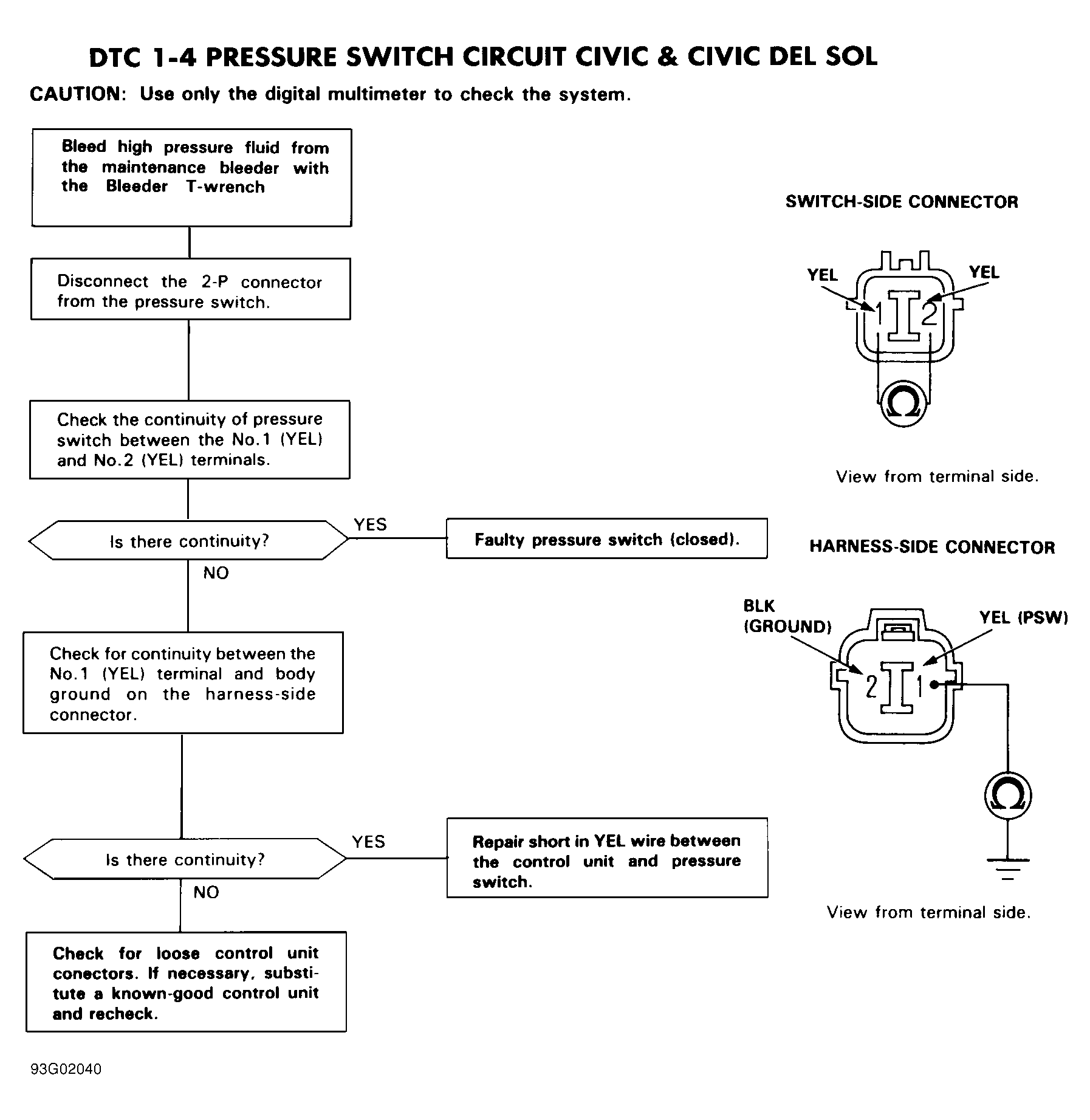

Fig 1: Pressure Switch Circuit Flowchart
G93G02040Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: View Of Switch-Side Connector
G93G02889Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: View Of Harness-Side Connector
G93J02895Courtesy of AMERICAN HONDA MOTOR CO., INC.
