Engine Controls - Tests W/Codes - 1.5L TBI
>>
Wiring Diagrams
Wiring Diagrams

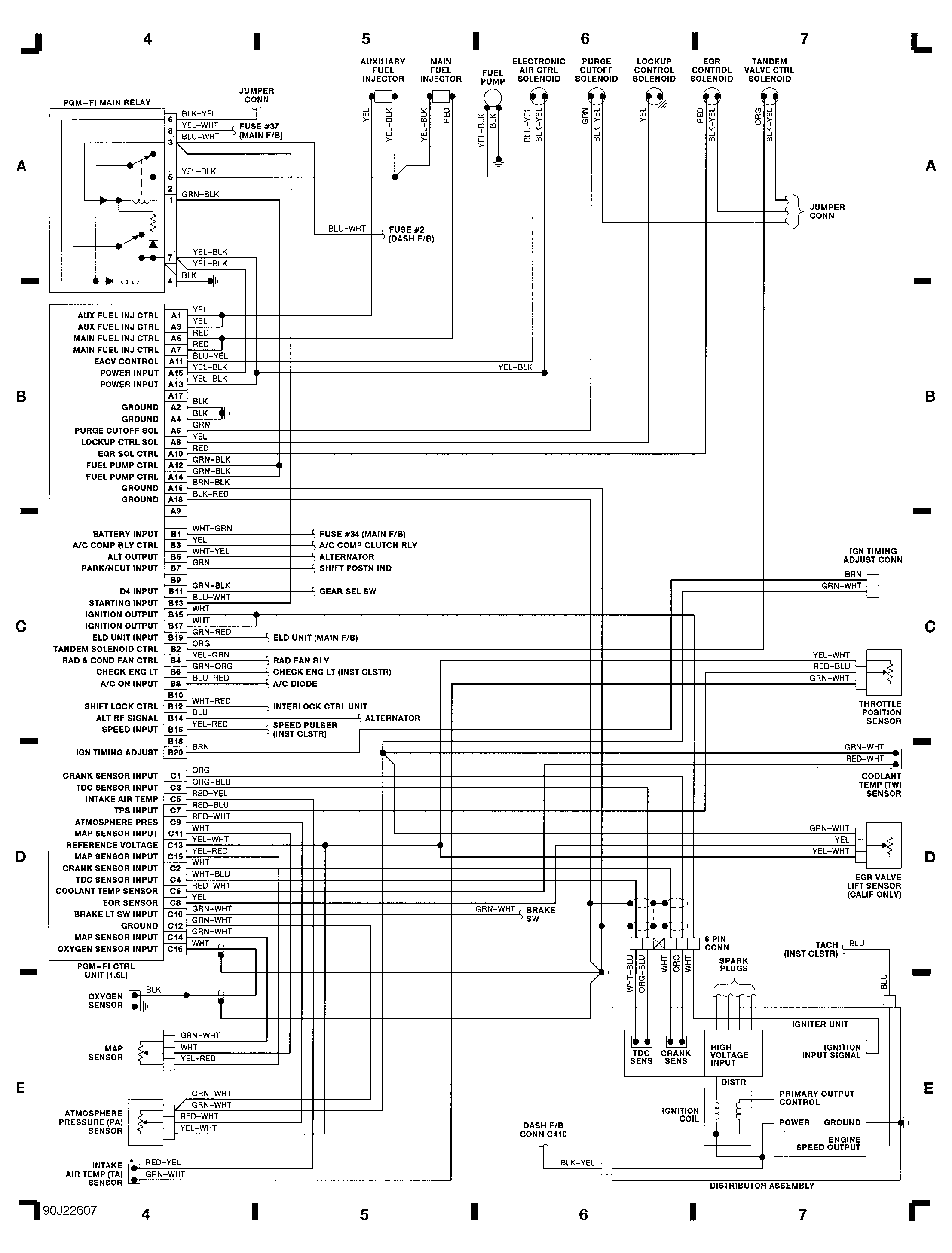

Fig 1: Wiring Diagram (1.5L Civic)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

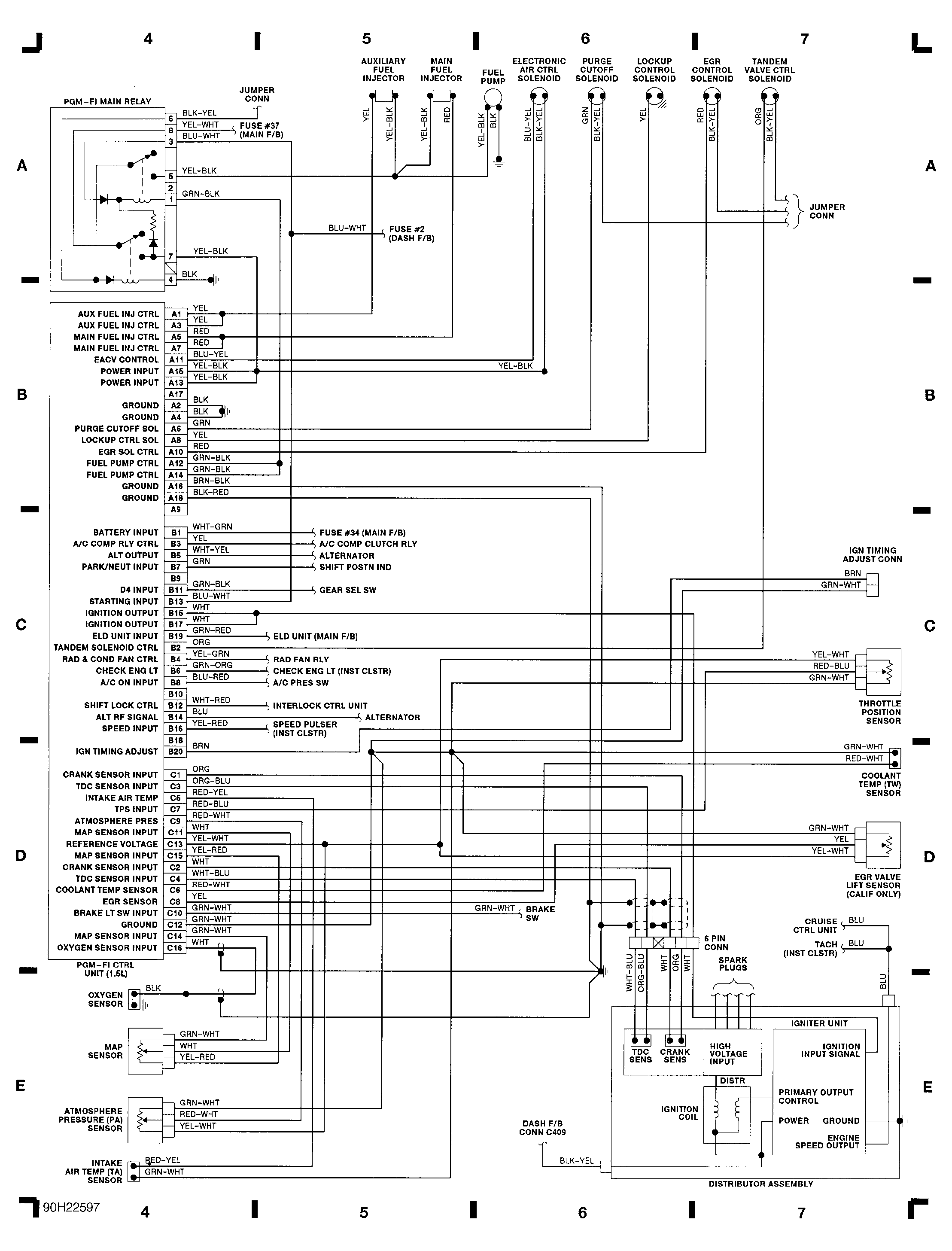

Fig 2: Wiring Diagram (1.5L Civic Wagon)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

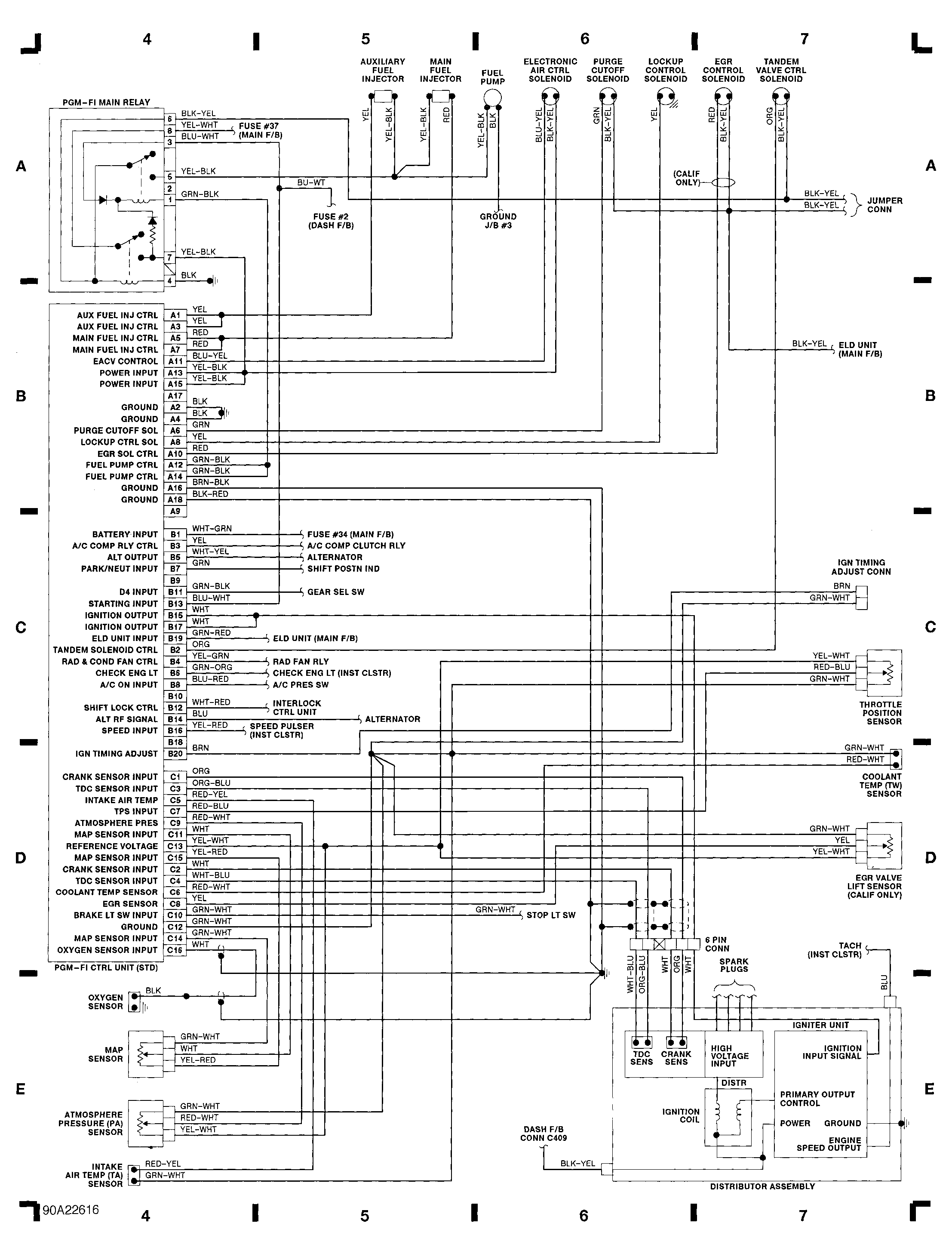

Fig 3: Wiring Diagram (1.5L CRX)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
