Service Indicator & Warning Lights: Notes

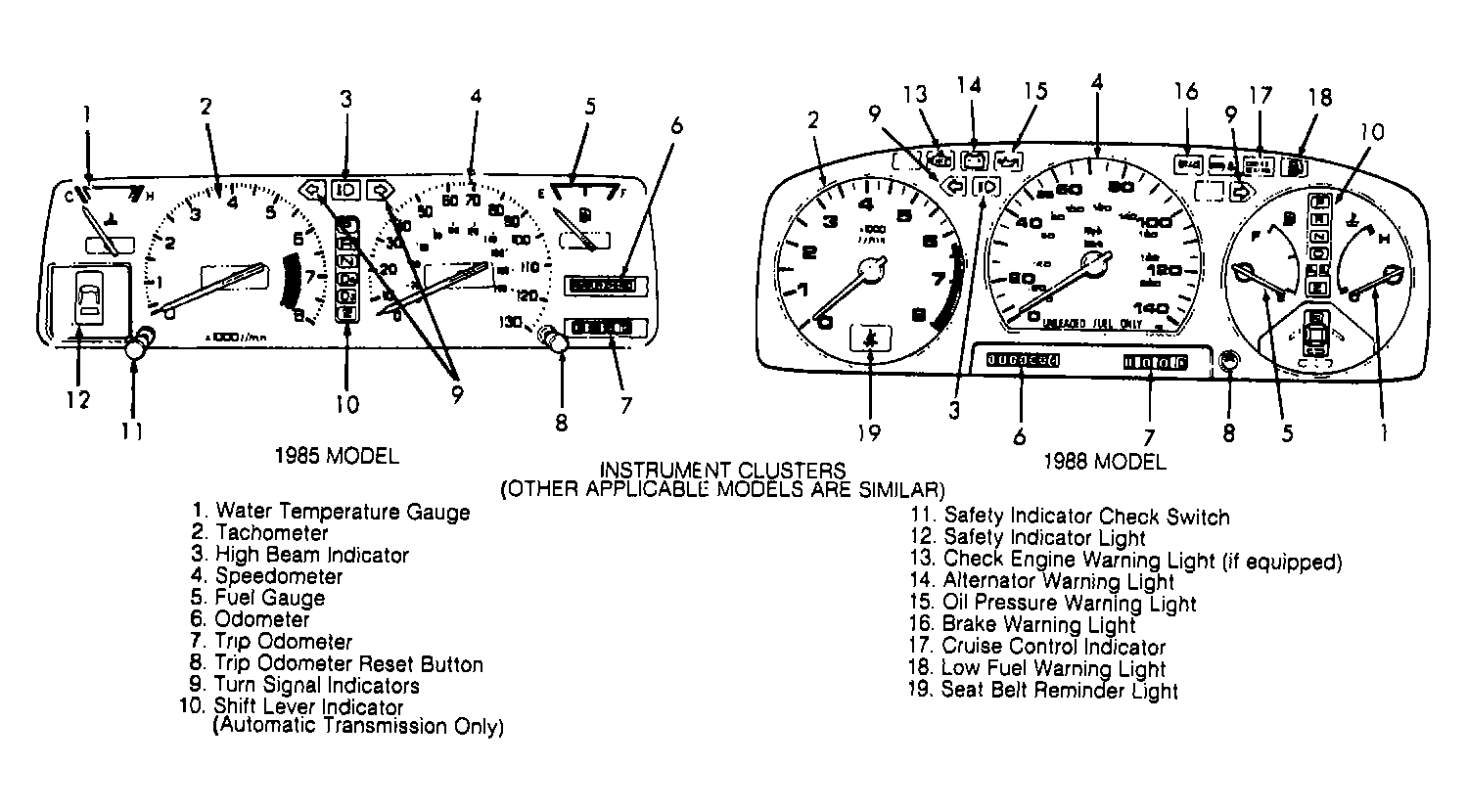

Fig 1: 1983-91 Dash Gauges & Warning Lights
G90J01891Courtesy of AMERICAN HONDA MOTOR CO., INC.

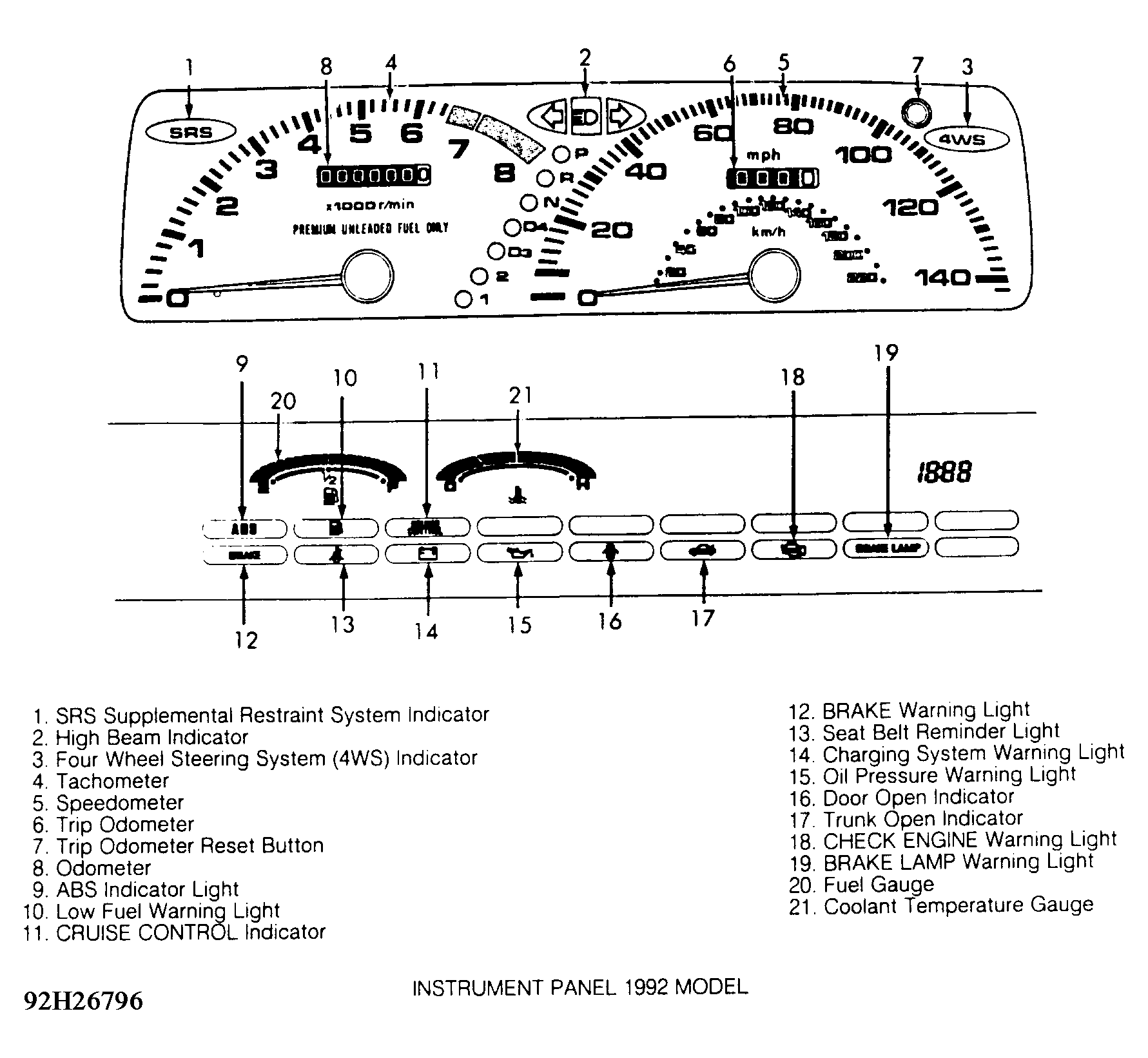

Fig 2: 1992 Dash Gauges & Warning Lights
G92H26796Courtesy of AMERICAN HONDA MOTOR CO., INC.
