Home >> Geo >> 1997 >> Metro Base >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Fuses & Circuit Breakers >> Air Bag Fuse Block Identification >> Notes

Air Bag Fuse Block Identification: Notes

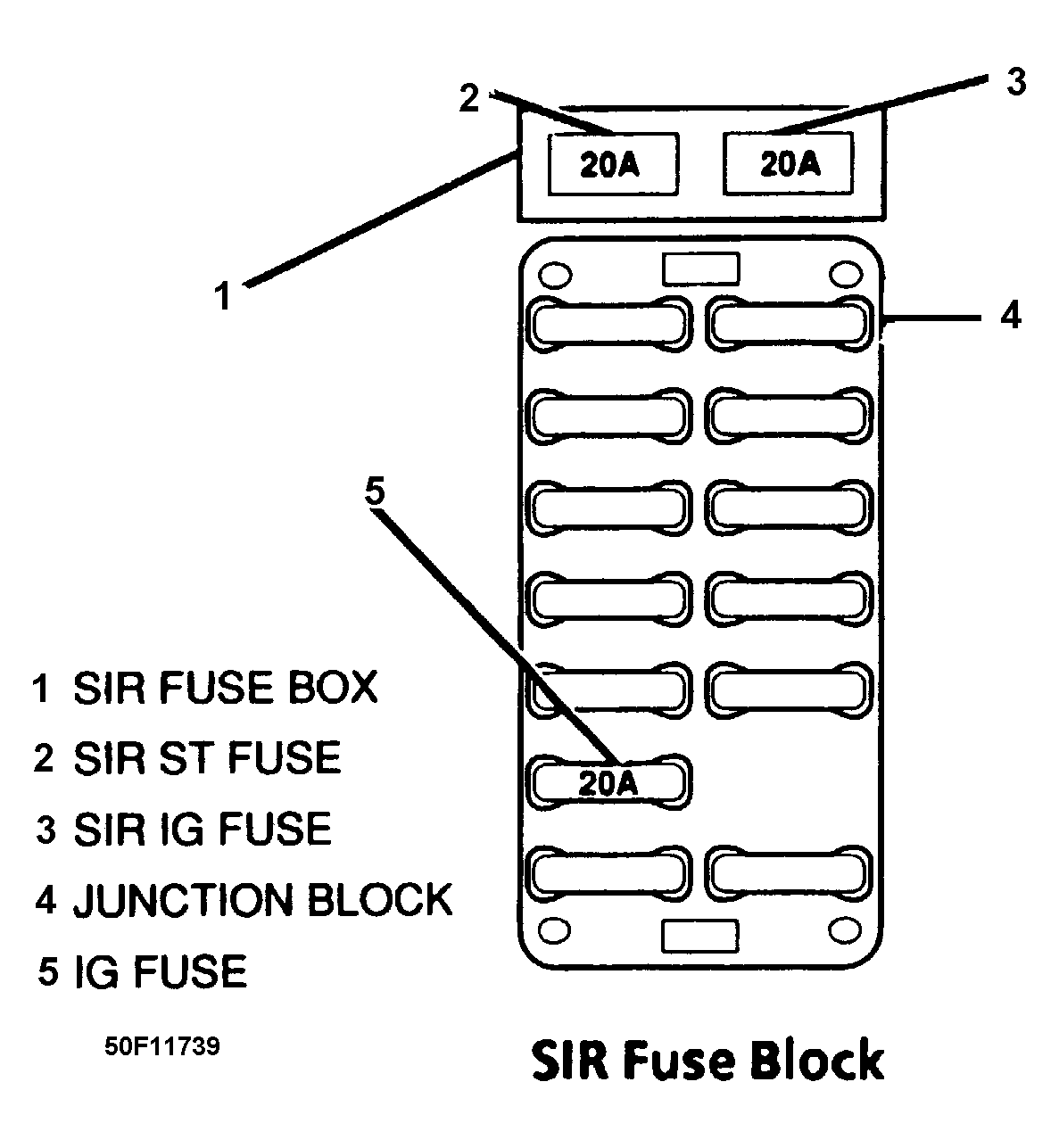

Fig 1: Air Bag Fuse Block Identification

G50F11739

Courtesy of GENERAL MOTORS CORP.
