Throttle Position Sensor (TPS) Signal

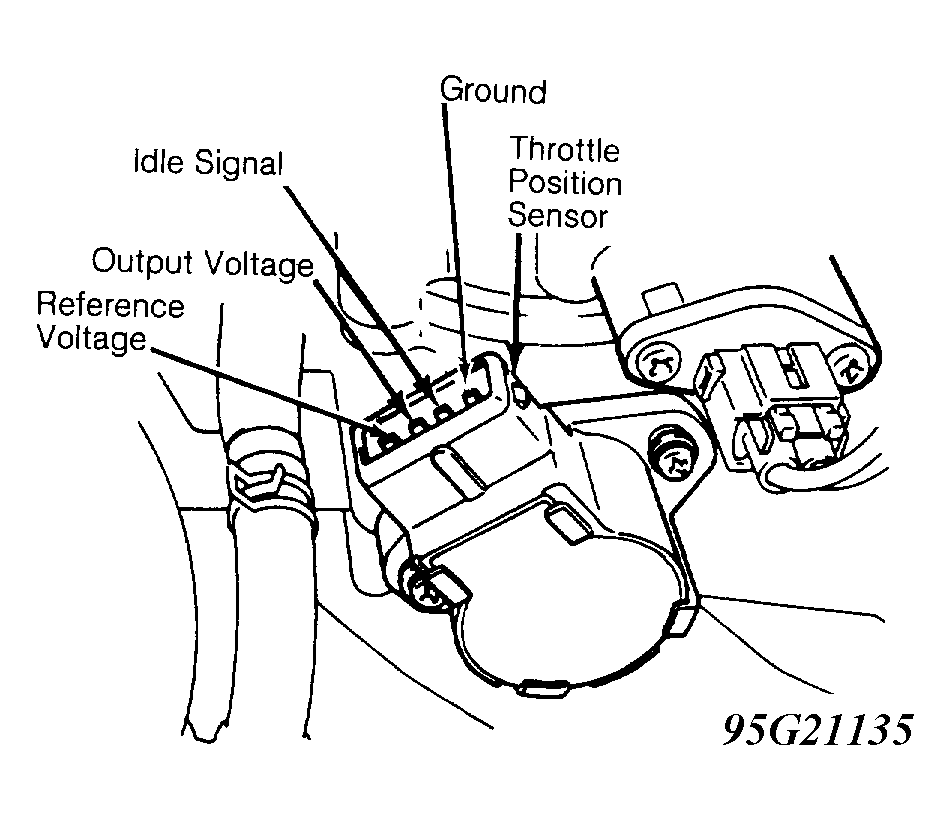

TPS delivers an closed throttle and variable throttle position input signals to ECT ECU. TPS is located on side of throttle body. See Figure .
