Wiring Diagrams

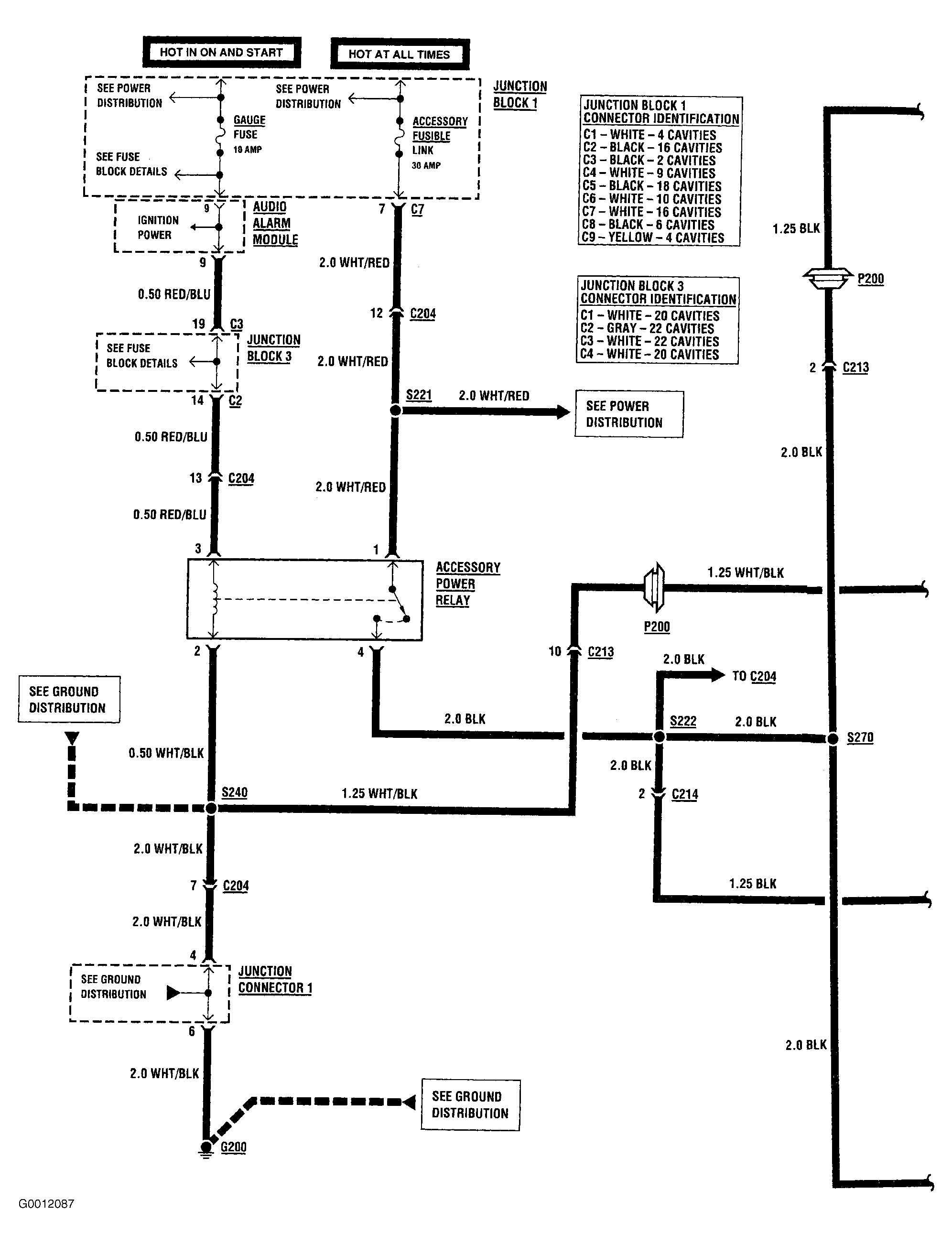

Fig 1: Wiring Diagram (1 of 2)

G00122087

Courtesy of GENERAL MOTORS CORP.

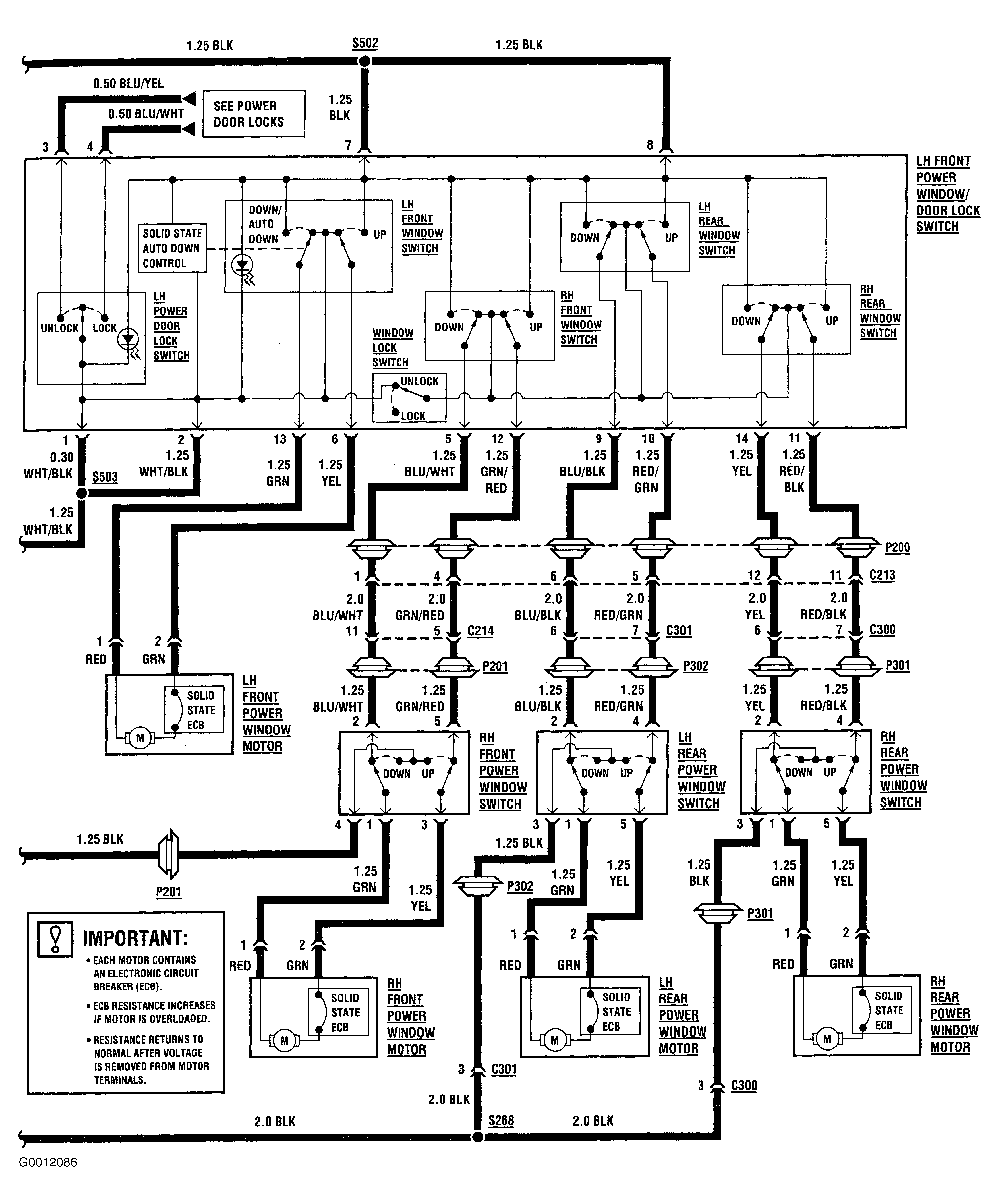

Fig 2: Wiring Diagram (2 of 2)

G00122086

Courtesy of GENERAL MOTORS CORP.
