Diagnostic Aids

An intermittent condition may be caused by rubbed-through insulation, or a wire broken inside insulation. Check harness connectors for backed-out or damaged terminals, improper mating or broken connector lock, before replacing component.

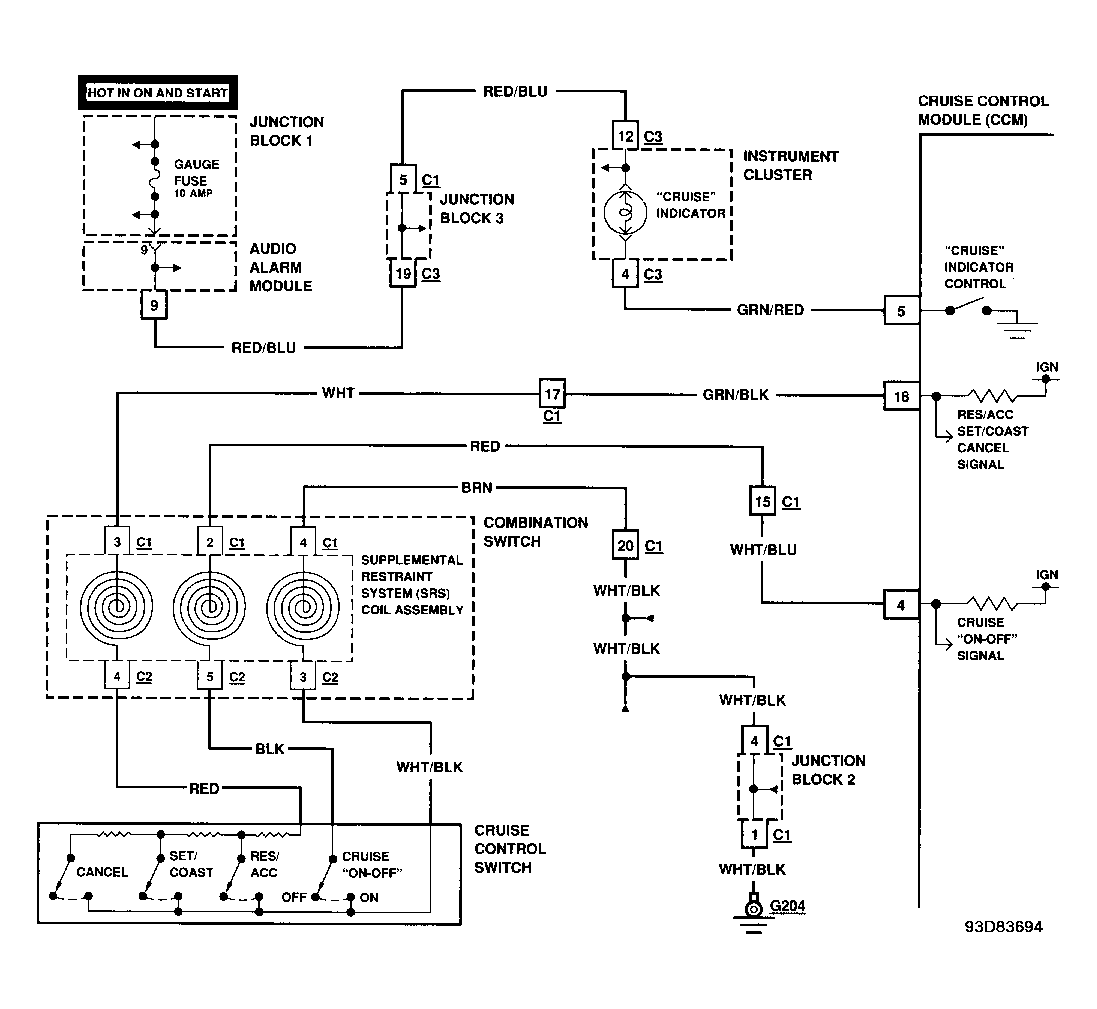

Fig 1: DTC 32 Schematic

Courtesy of GENERAL MOTORS CORP.

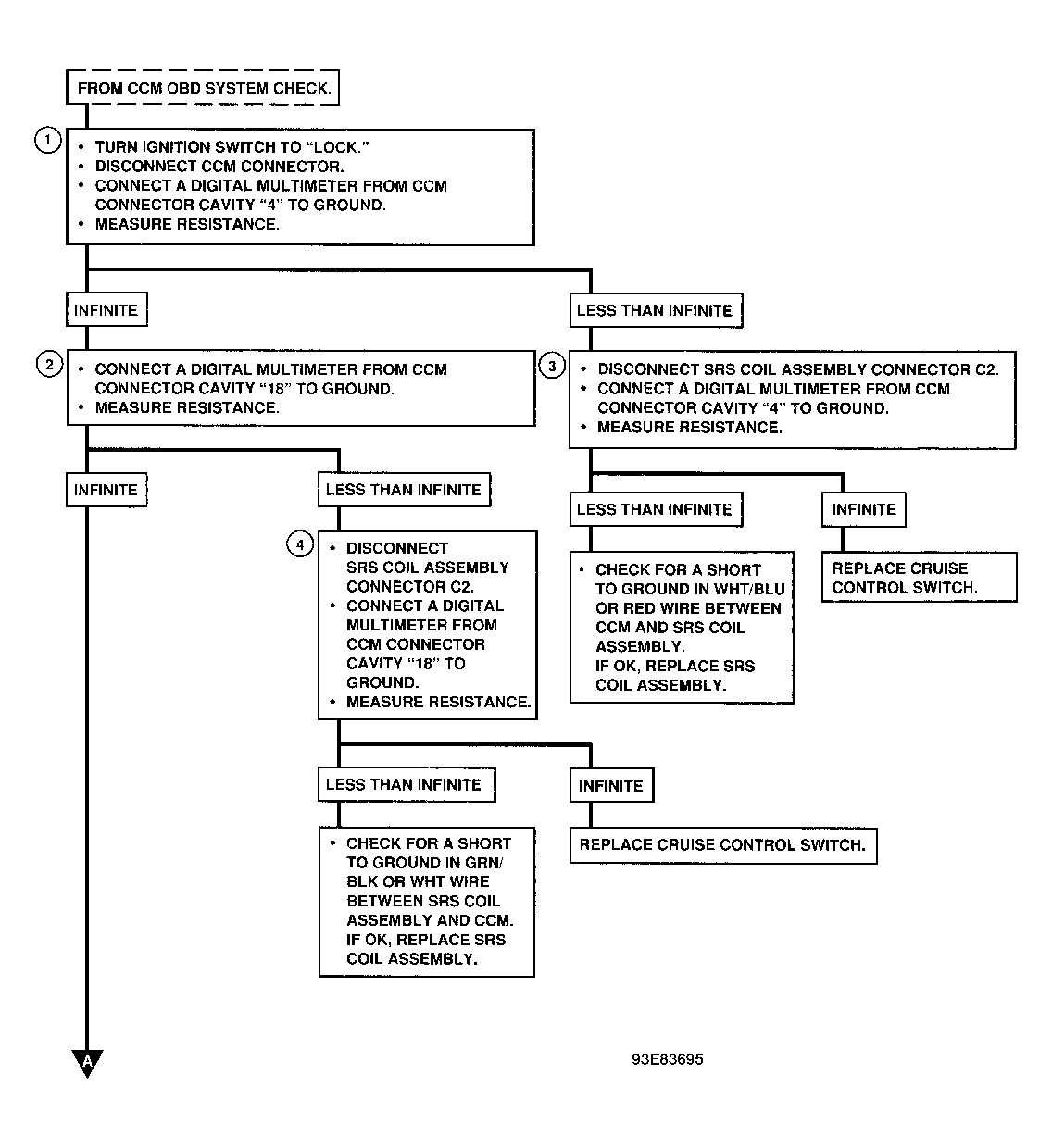

Fig 2: DTC 32 Flow Chart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

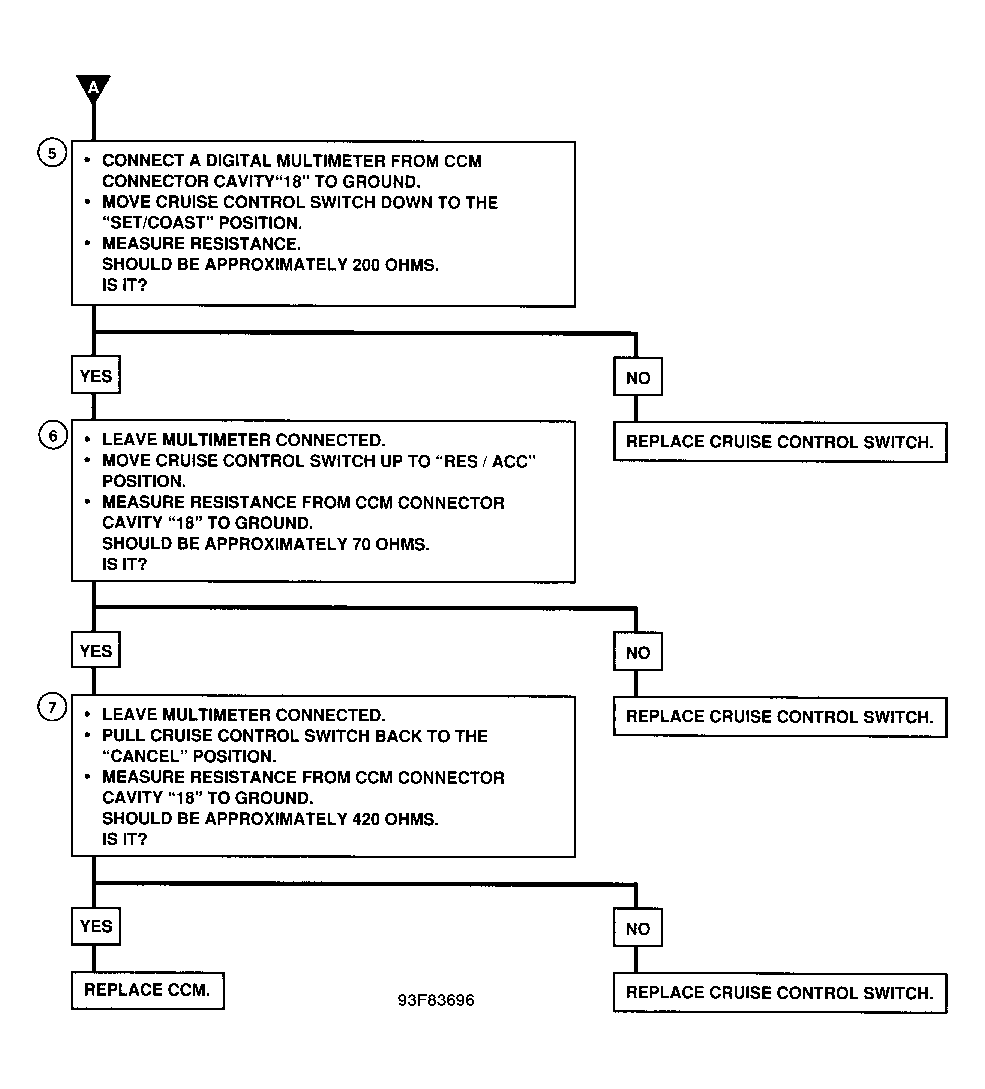

Fig 3: DTC 32 Flow Chart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
