Diagnostic Aids

Check connectors for contamination, corrosion or for bent terminals.

Fig 1: Chart A-1 Schematic, No CHECK ENGINE Light

G92G26274

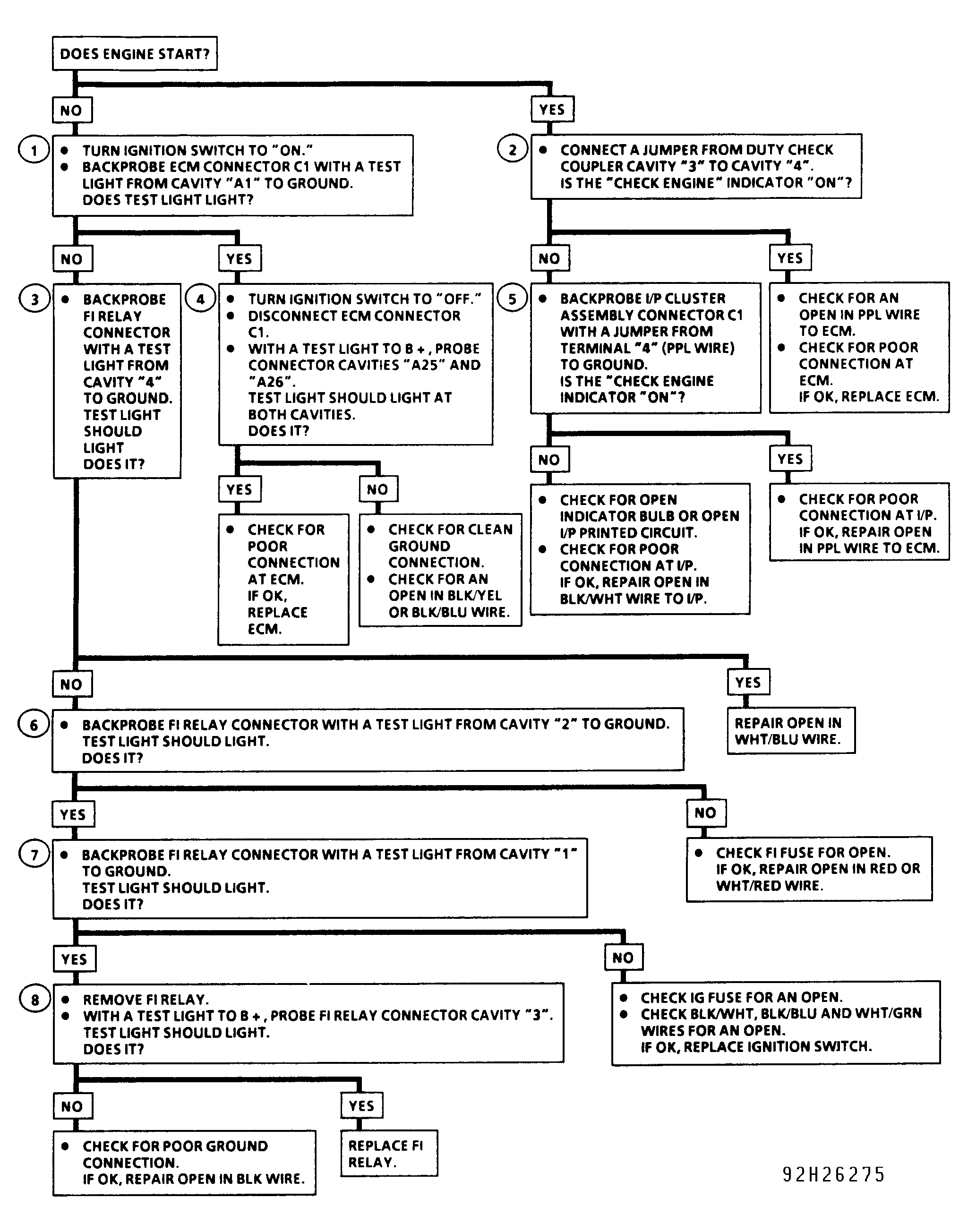

Fig 2: Chart A-1 Flow Chart, No CHECK ENGINE Light

G92H26275
