Diagnostic Aids

If CHECK ENGINE light will not illuminate, check for faulty bulb or an open circuit in Violet wire.

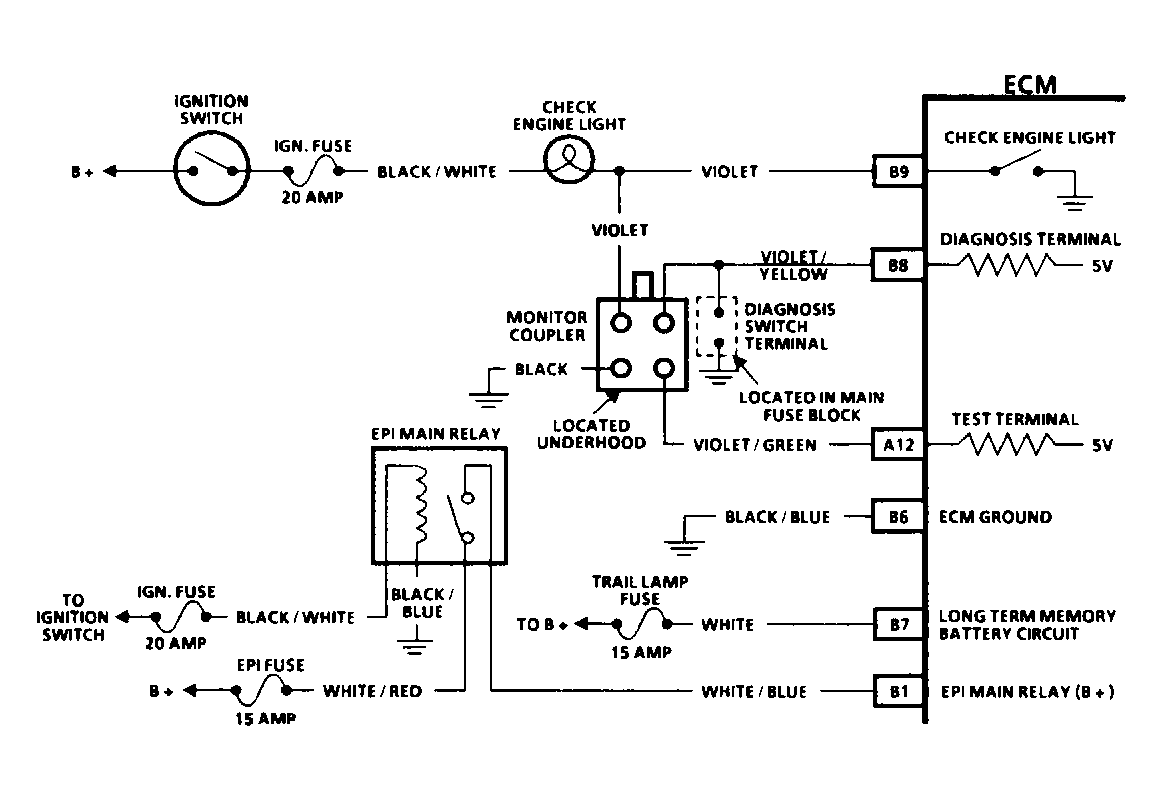

Fig 1: Chart A-1 Circuit Diagram

G121600

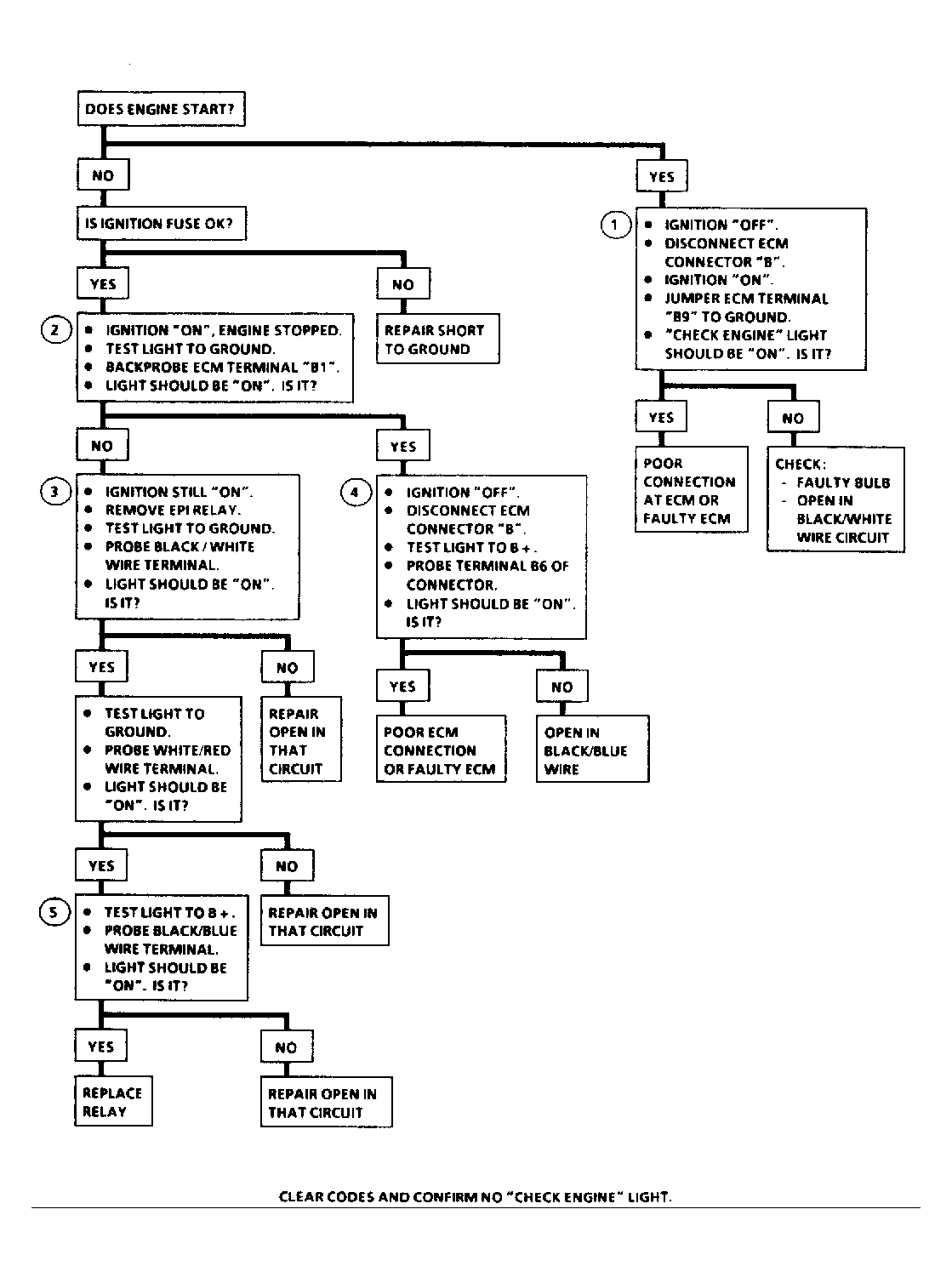

Fig 2: Chart A-1 Flow Chart

G121601
