Monitor Current Data

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Engine "ON".
  4. Monitor "Ignition Output Value - Cyl. 1 to 4" parameter in "Current Data" with GDS.

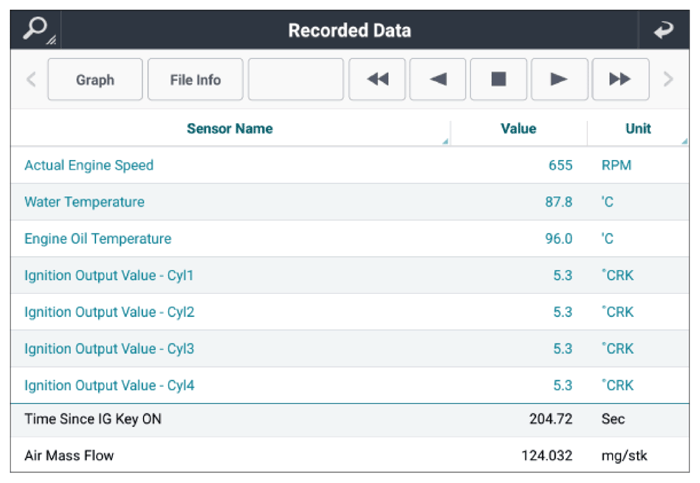

    Specification  : Refer to figure shown below

G16857898Courtesy of HYUNDAI MOTOR AMERICA
