Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console armrest.

    (Refer to Body - "CONSOLE ARMREST ")

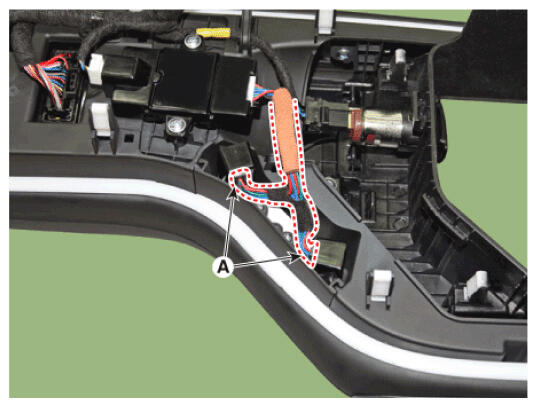

  3. Remove the floor console mood lamp connector (A).
    G16855741Courtesy of HYUNDAI MOTOR AMERICA

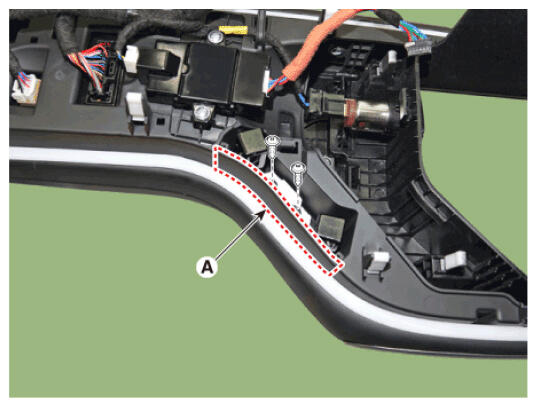

  4. Remove the floor console mood lamp bracket (A) after loosening mounting screws.
    G16855742Courtesy of HYUNDAI MOTOR AMERICA

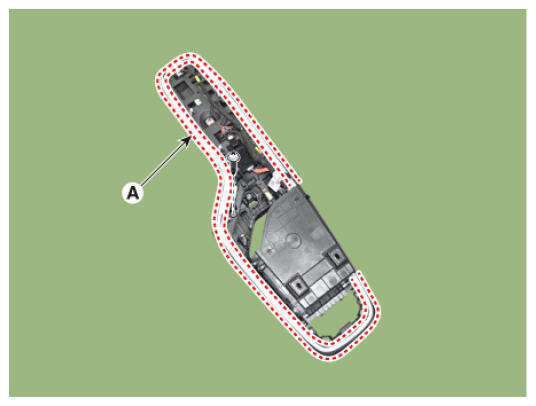

  5. Remove the floor console mood lamp (A).
    G16855743Courtesy of HYUNDAI MOTOR AMERICA

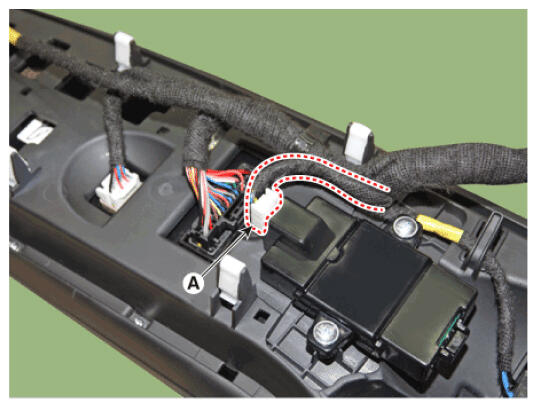

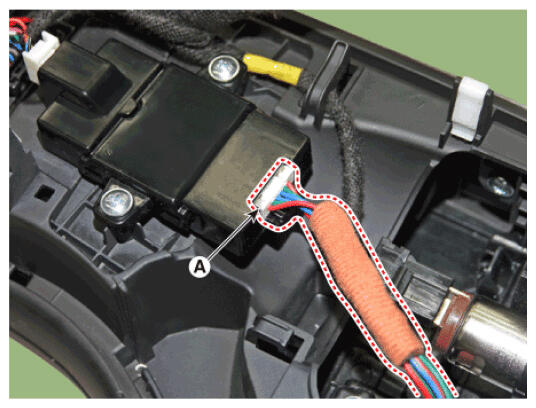

  6. Disconnect the mood lamp control unit connector (A).
    G16855744Courtesy of HYUNDAI MOTOR AMERICA
    G16855745Courtesy of HYUNDAI MOTOR AMERICA

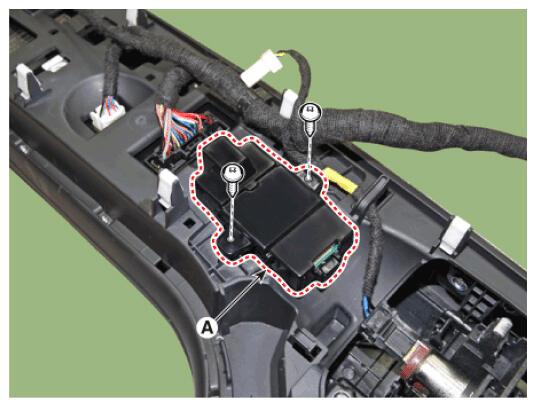

  7. Remove the mood lamp control unit (A) after loosening mounting screws.
    G16855746Courtesy of HYUNDAI MOTOR AMERICA

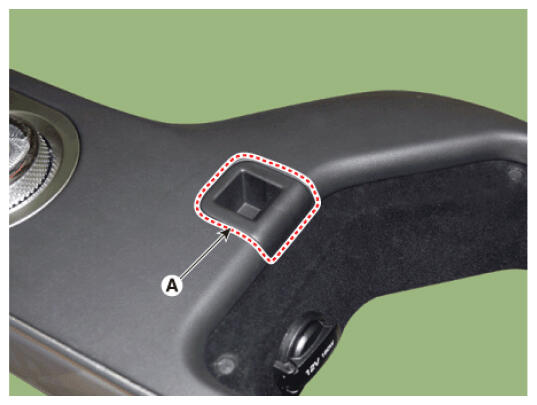

  8. Remove the console armrest cover lock (A).
    G16855747Courtesy of HYUNDAI MOTOR AMERICA

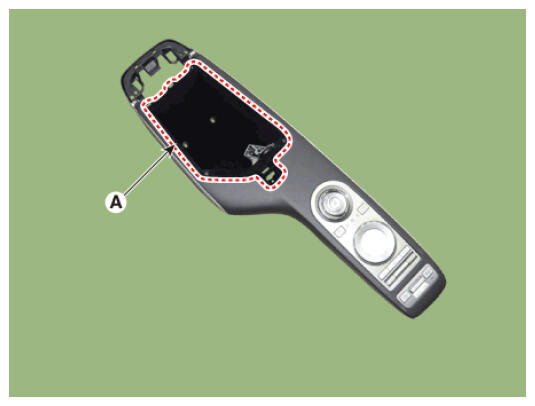

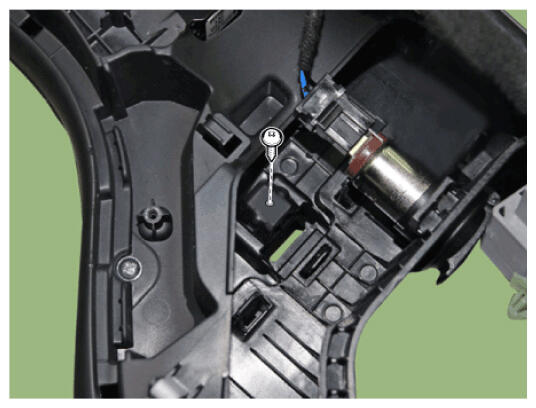

  9. Remove the console armrest rear tray (A).
    G16855748Courtesy of HYUNDAI MOTOR AMERICA
    G16855749Courtesy of HYUNDAI MOTOR AMERICA

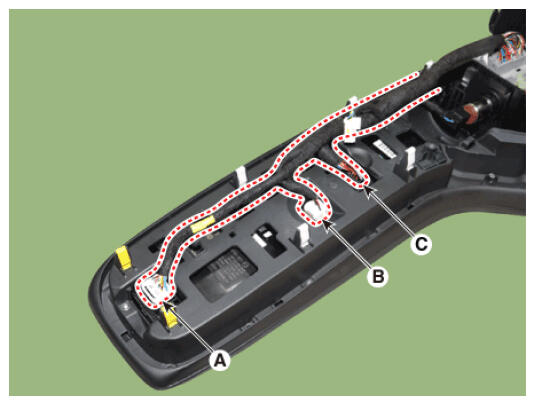

  10. Disconnect PDW switch connector (A), front integrated controller switch (B) and SBW switch (C).
    G16855750Courtesy of HYUNDAI MOTOR AMERICA

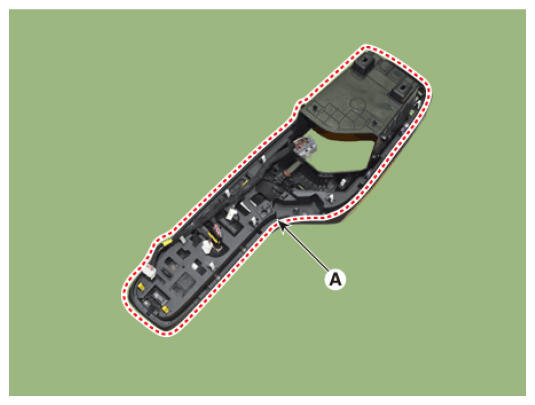

  11. Remove the console upper cover (A).
    G16855751Courtesy of HYUNDAI MOTOR AMERICA

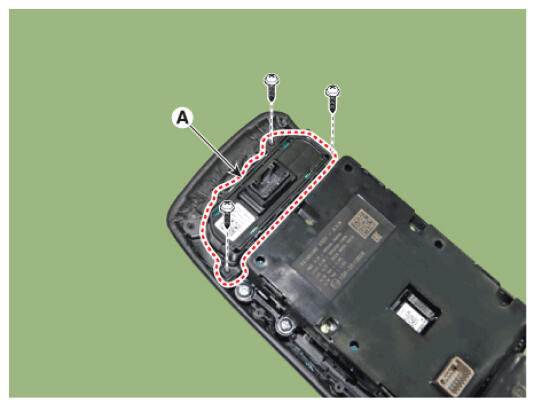

  12. Remove the PDW switch assembly (A).
    G16855752Courtesy of HYUNDAI MOTOR AMERICA

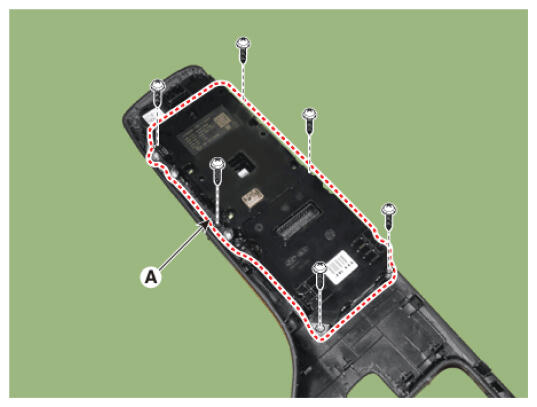

  13. Remove the front integrated controller switch (A) after loosening mounting screws.
    G16855753Courtesy of HYUNDAI MOTOR AMERICA
