VCU Software Update For Limp Home Enhancement (Service Campaign T64G) (24-01-091G)
Publication date: 2024-12-01Reference number: 24-01-091G
VCU SOFTWARE UPDATE FOR LIMP HOME ENHANCEMENT (SERVICE CAMPAIGN T64G)
SERVICE CAMPAIGN BULLETIN
Reference Number(s): 24-01-091G, Date of Issue:
December 01, 2024
| GENESIS: | 2023-2025 GV60 (JW1 EV), GV70 EV (JK1A EV), G80 EV (RG3 EV) |
| GROUP: | CAMPAIGN |
SERVICE INFORMATION
IMPORTANT:
Retailers must perform this service campaign on all affected vehicles prior to retail delivery to a guest and whenever an affected vehicle is in the shop for any maintenance or repair.
Access the "Vehicle Information" screen via WebDCS to identify open campaigns.
Access the "Vehicle Information" screen via WebDCS to identify open campaigns.
DESCRIPTION
Certain 2023-2025MY GV70 Electrified (JK1A EV), 2023-25MY GV60 (JW1 EV) and 2023-25MY G80 Electrified (RG3 EV) vehicles may exhibit a condition while driving where the 12V battery voltage drops below the operational voltage and the Vehicle Control Unit (VCU) places the vehicle in "Limp Home" mode. The VCU software in this bulletin updates the maximum vehicle speeds for various levels of 12V battery voltage when the vehicle enters "Limp Home" mode.
Applicable Vehicles (Certain):
- 2023-2025MY GV60 (JW1 EV) produced from 02/04/2022 - 11/15/2024
- 2023-2025MY GV70 Electrified (JK1A EV) produced from 01/25/2023 - 11/21/2024
- 2023-2025MY G80 Electrified (RG3 EV) produced from 02/23/2022 - 10/16/2024
NOTE:
To avoid any potential damage to Genesis EVs, this service campaign can only be performed by EV certified Genesis retailers.
GDS INFORMATION
GDS INFORMATION
| System | Event # | Description |
|---|---|---|
| VCU | 1188 | JK EV VCU LIMP HOME ENHANCEMENT (23-25MY) |
| 1189 | JW EV VCU LIMP HOME ENHANCEMENT (22~23MY) | |
| 1195 | JW EV VCU LIMP HOME ENHANCEMENT (24~25MY) | |
| 1199 | RG3 EV VCU LIMP HOME ENHANCEMENT (21~25MY) | |
| (*or use a later available event as listed in the GDS VCU Update screen if one is available.) | ||
WARRANTY INFORMATION
WARRANTY INFORMATION
| Model | Op. Code | Operation | Op. Time | Causal Part | Nature Code | Cause Code |
|---|---|---|---|---|---|---|
| GV70 (JKA EV) |
40D230R0 | VCU Limp Home Enhancement | 0.7 M/H | 39751-1XKN1 | I14 | ZZ3 |
| GV60 (JW1 EV) |
39751-1XJN1 | |||||
| G80 EV (RG3 EV) |
39751-1XRN1 |
NOTE:
- Submit claim on Claim Entry Screen as "Campaign" type.
- If a part is found in need of replacement while performing this campaign and the affected part is still under warranty, submit a separate claim using the same repair order. If the affected part is out of warranty, submit a Prior Approval request for goodwill consideration prior to performing the work.
- Op times include VIN, Mileage, and photo capture of the "ECU update complete" screen as outlined in the Digital Documentation Policy.
ROM ID Information: Event # 1188
ROM ID INFORMATION
| Model | System | ECU Part Number | ROM ID | |
|---|---|---|---|---|
| Old | New | |||
| GV70 (JK1A EV) |
VCU | 39751-1XKN1 | 397511XKN1_NS00 | 397511XKN1_NS06 |
| 397511XKN1_NS01 | ||||
| 397511XKN1_NS02 | ||||
| 397511XKN1_NS03 | ||||
| 397511XKN1_NS04 | ||||
| 397511XKN1_NS05 | ||||
ROM ID Information: Event # 1189
ROM ID INFORMATION
| Model | System | ECU Part Number | ROM ID | |
|---|---|---|---|---|
| Old | New | |||
| GV60 (JW1 EV) (2023MY) |
VCU | 39751-1XJN1 | JW1A-N0-SB3-V400 | JW1A-N0-SB8-V400 |
| JW1A-N0-SB4-V400 | ||||
| JW1A-N0-SB5-V400 | ||||
| JW1A-N0-SB6-V400 | ||||
| JW1A-N0-SB7-V400 | ||||
ROM ID Information: Event # 1195
ROM ID INFORMATION
| Model | System | ECU Part Number | ROM ID | |
|---|---|---|---|---|
| Old | New | |||
| GV60 (JW1 EV) (24-25MY) |
VCU | 39751-1XJN5 | JW1M-44E-N30-S00 | JW1M-44E-N30-S05 |
| JW1M-44E-N30-S01 | ||||
| JW1M-44E-N30-S02 | ||||
| JW1M-44E-N30-S03 | ||||
| JW1M-44E-N30-S04 | ||||
ROM ID Information: Event # 1199
ROM ID INFORMATION
| Model | System | ECU Part Number | ROM ID | |
|---|---|---|---|---|
| Old | New | |||
| G80 EV (RG3 EV) |
VCU | 39751-1XRN1 | RG3A-N0-SB1-V400 | RG3A-N0-SB7-V400 |
| RG3A-N0-SB2-V400 | ||||
| RG3A-N0-SB3-V400 | ||||
| RG3A-N0-SB4-V400 | ||||
| RG3A-N0-SB5-V400 | ||||
| RG3A-N0-SB6-V400 | ||||
SERVICE PROCEDURE
STUI
This TSB includes Repair validation photos. Refer to the latest Warranty Digital Documentation Policy for requirements.
NOTE:
You must initially perform the GDS ECU update in Auto Mode.
- If the ECU update starts but then fails in Auto Mode, perform the update in Manual Mode to recover.
NOTE:
GDS Vehicle Battery Low Voltage Warning:
If voltage is below 12 volts per the GDS warning, then select Back and attach a battery charger to ensure an adequate battery charge for reliable update results. Turn ignition back ON , and then retry the ECU update again.
If voltage is below 12 volts per the GDS warning, then select Back and attach a battery charger to ensure an adequate battery charge for reliable update results. Turn ignition back ON , and then retry the ECU update again.

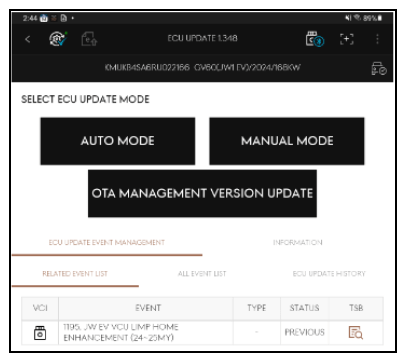

- Perform the ECU update in Auto Mode
.
Use the ID Check to verify the ROM ID before updating the software.
Information
Refer to TSB # 24-GI-016G , "ECU Update Procedure for Tablet-Based Genesis Smart ", for additional information.

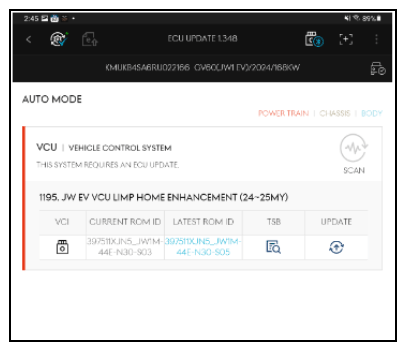

- Select the VCU
system to scan the vehicle's current ROM ID.NOTE: Check the current ROM ID version and compare it to the ROM ID Information table before attempting to perform the software update.NOTE: If the update fails, please remove the power connector or the battery (-) connector from the indoor fuse box for at least 5 seconds and reassemble it to retry the update.

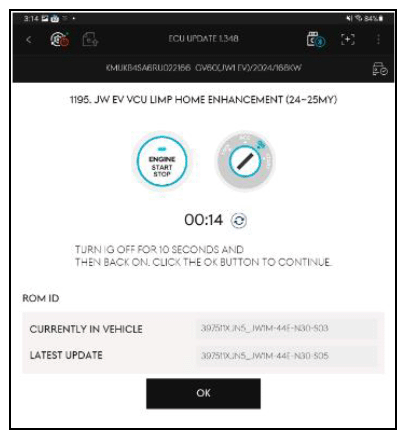

- After the ECU update process shows 100% complete, follow the prompts on the screen to cycle the ignition OFF
for at least 10 seconds
to reset the control unit (certain models may take up to 30 seconds
).
Information
Use the Refresh button to reset the timer.
After clicking OK , the OTA Initialization process will begin.
- If OTA initialization performs automatically, then proceed with the service procedure.
- If the OTA initialization fails, connect GDS-Smart > S/W Management > Central Communication Unit (CCNF) > OTA Initialization
Follow the instructions on the screen.
-
STUI

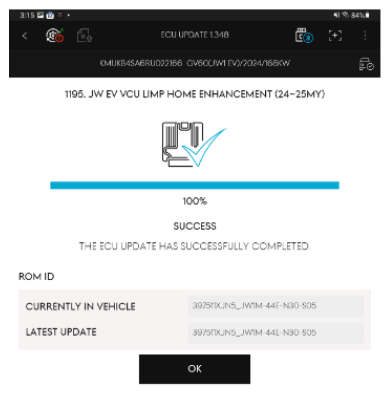

Take a screenshot of the ECU update complete screen using your tablet and upload to STUI.
- Perform an All Systems Fault Code search and erase DTC history that had incidentally occurred from the ECU update.
- Start the vehicle in Ready mode to confirm proper operation.
NOTE:
If the ECU update fails in Auto Mode, perform the update in Manual Mode using the password(s) below.
MANUAL MODE PASSWORDS
MANUAL MODE PASSWORDS INFORMATION
| Event # | ECM Name | Password |
|---|---|---|
| 1188 | JK EV VCU 39751-1XKN1 | 3761 |
| 1189 | JW EV VCU 39751-1XJN1 | 8400 |
| 1195 | JW EV VCU 39751-1XJN5 | 4305 |
| 1199 | RG3 EV VCU 39751-1XRN1 | 5111 |
