Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Low Pressure Fuel Pump  ")

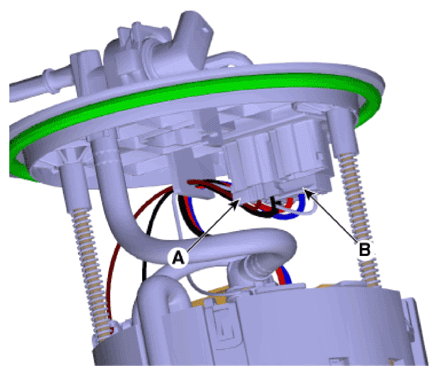

  2. Disconnect the fuel sender connector (A) and fuel pump connector (B).
    G16770981Courtesy of HYUNDAI MOTOR AMERICA

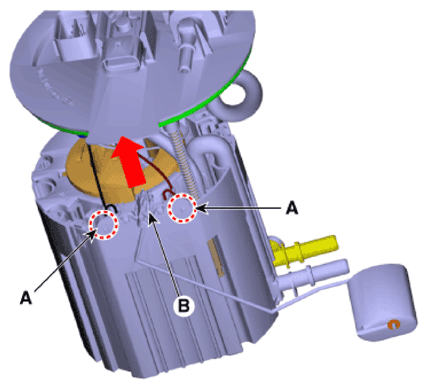

  3. Remove the fuel sender (B) after releasing the fixing hooks (A).
    G16770982Courtesy of HYUNDAI MOTOR AMERICA
    G16770983Courtesy of HYUNDAI MOTOR AMERICA
