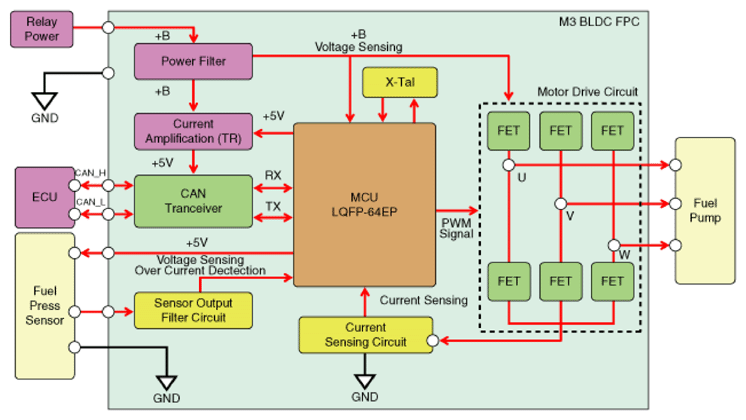

Home >> Genesis >> 2024 >> GV80 3.5T Advanced >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 3.5L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
