Components Location

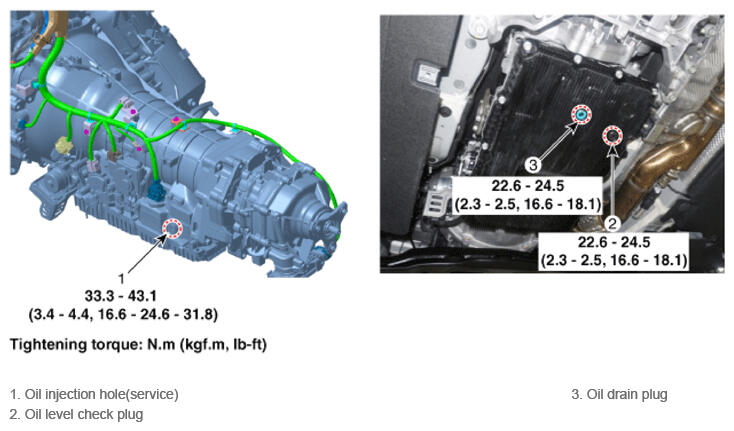

Fig 1: Fluid Components Location With Torque Specification

G16770056

Courtesy of HYUNDAI MOTOR AMERICA
