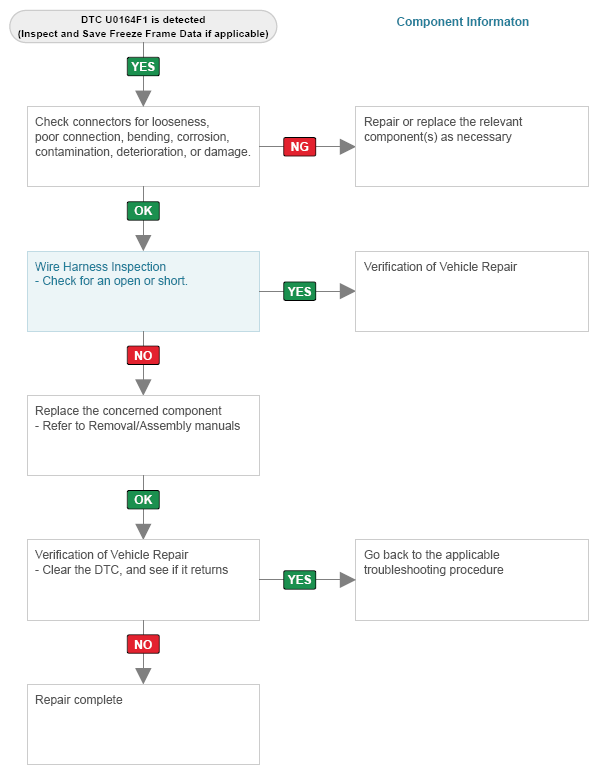

Home >> Genesis >> 2024 >> GV80 2.5T Advanced >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (6 Of 6) >> DTC U0164-F1: Lost Communication With HVAC Control Module (FATC CAN Time Out) >> Troubleshooting >> Diagnostic Flowchart
