Downstream O2 Sensor Signal Inspection

Item	Normal Value	Prerequisite Condition	Probe (+)	Probe (-)

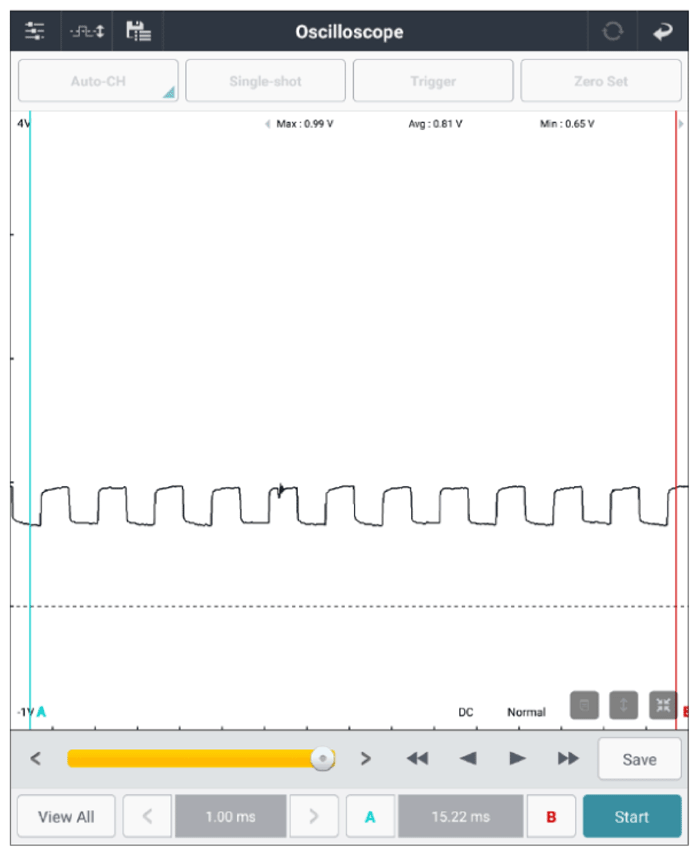

Signal circuit voltage	Refer to below figure	Courtesy of HYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICA Courtesy of HYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICA Courtesy of HYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICAHYUNDAI MOTOR AMERICA	Signal circuit terminal	Ground circuit terminal

Courtesy of HYUNDAI MOTOR AMERICA
