Diagnostic Flowchart

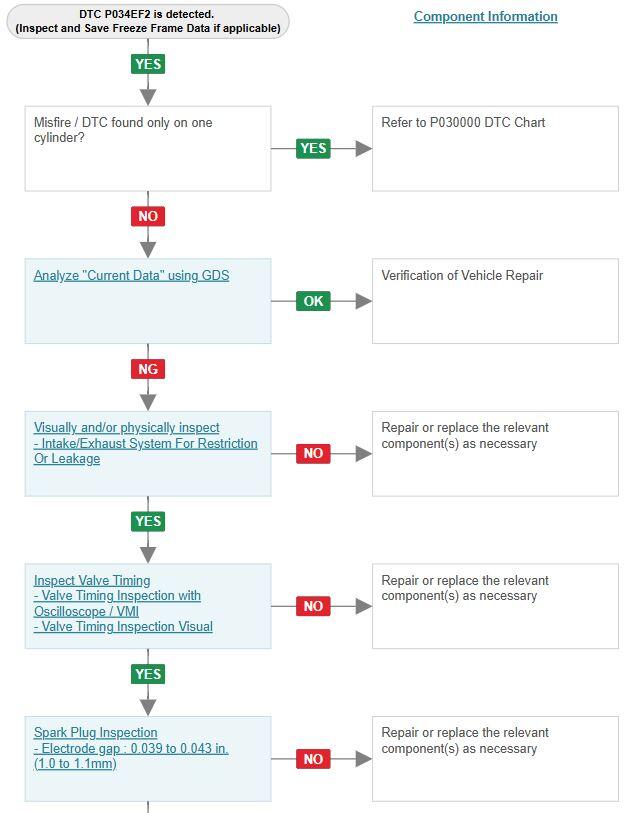

Fig 1: P034E-F2 (1 Of 2)
G16778883Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: P034E-F2 (2 Of 2)
G00664328Courtesy of HYUNDAI MOTOR AMERICA
