Home >> Genesis >> 2024 >> GV80 2.5T Advanced >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 2.5L >> Components And Components Location >> Components

Components And Components Location: Components

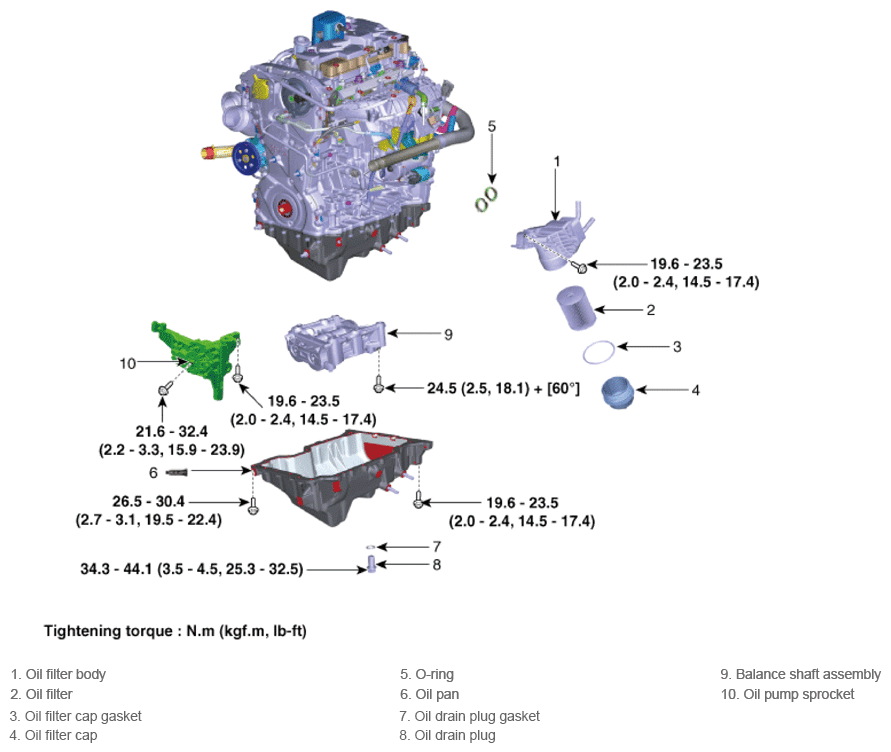

Fig 1: Lubrication System Components Location With Torque Specification

G16769458

Courtesy of HYUNDAI MOTOR AMERICA
