Components And Components Location: Components

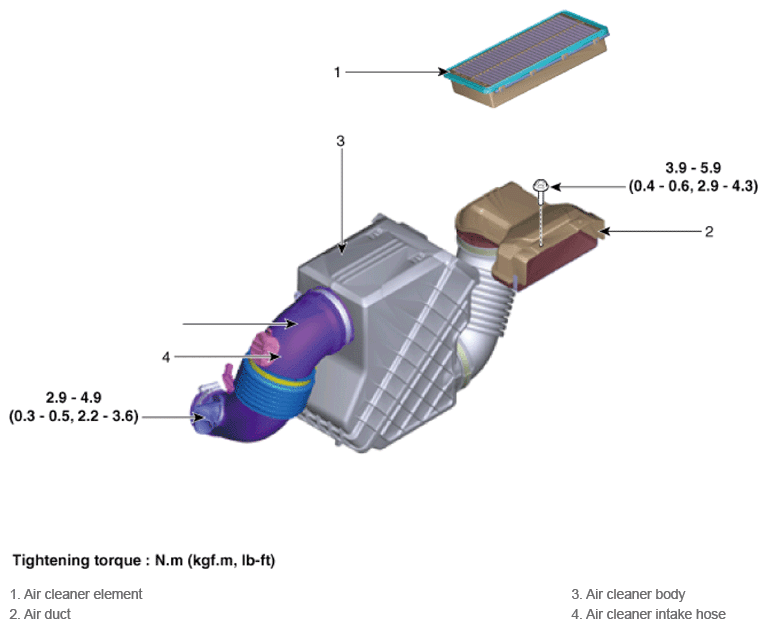

Fig 1: Intake And Exhaust System Components Location With Torque Specification

G16769504

Courtesy of HYUNDAI MOTOR AMERICA
