Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

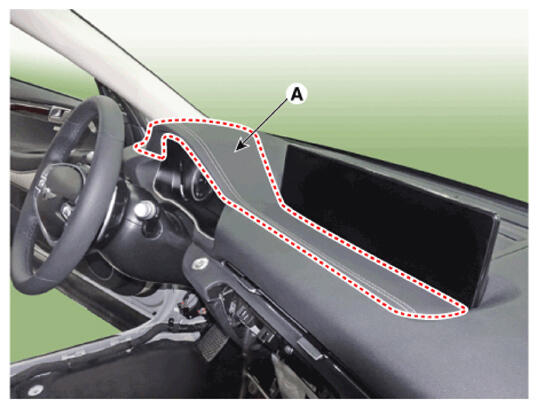

  2. Remove the cluster fascia upper garnish (A).
    G16774339Courtesy of HYUNDAI MOTOR AMERICA

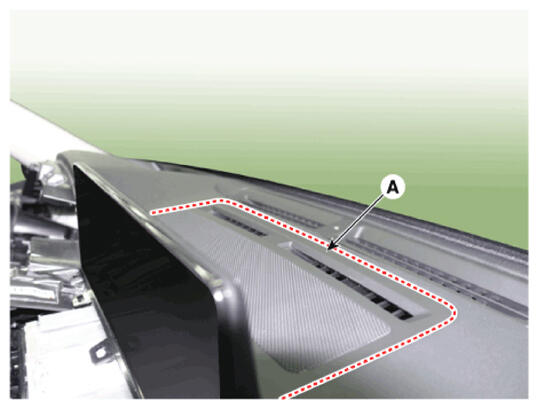

  3. Remove the crash pad upper garnish (A).
    G16774340Courtesy of HYUNDAI MOTOR AMERICA

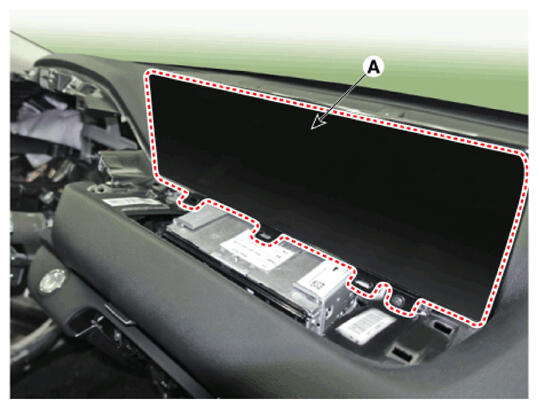

  4. Remove the front monitor (A) after loosening mounting screws.
    G16774341Courtesy of HYUNDAI MOTOR AMERICA

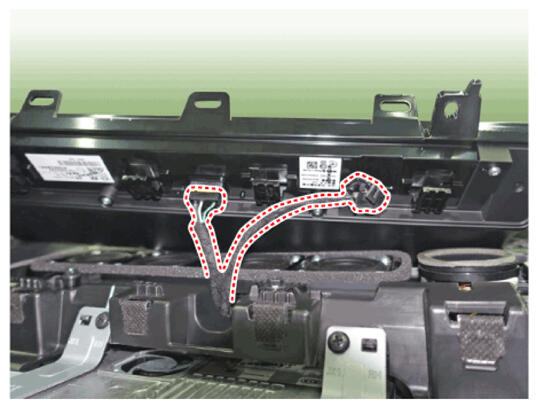

  5. Disconnect the monitor connector and then remove the front monitor.
    G16774342Courtesy of HYUNDAI MOTOR AMERICA

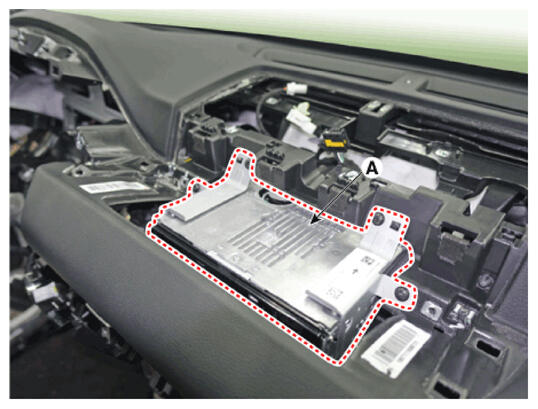

  6. Remove the AVN head unit (A) after loosening mounting screws.
    G16774343Courtesy of HYUNDAI MOTOR AMERICA

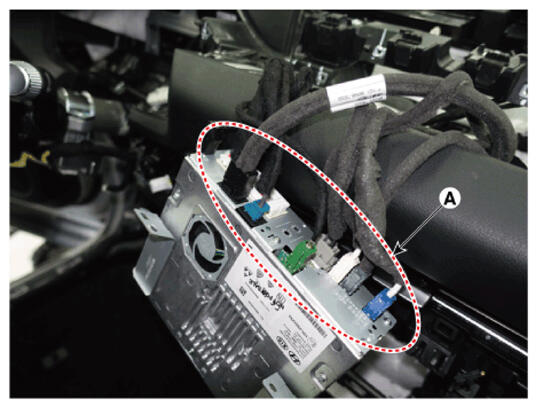

  7. Disconnect the AVN head unit connector (A).
G16774344Courtesy of HYUNDAI MOTOR AMERICA
