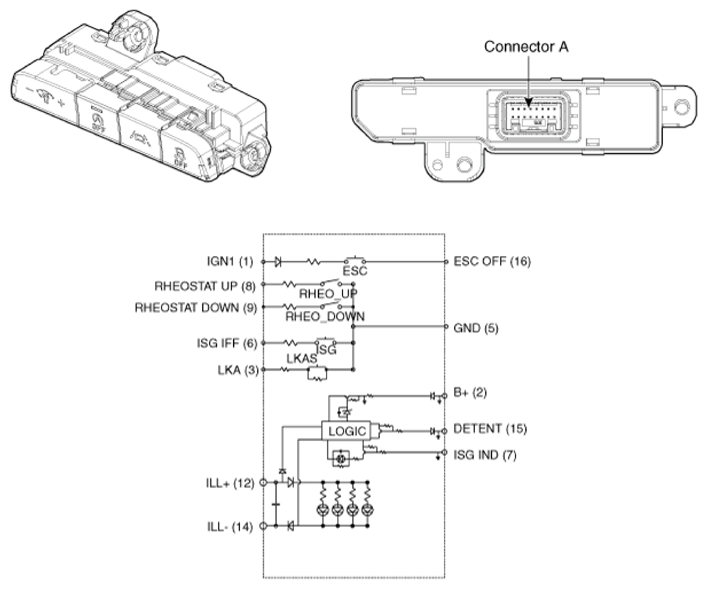

Circuit Diagram

G16778100Courtesy of HYUNDAI MOTOR AMERICA
Connector A NO Description
G16778101Courtesy of HYUNDAI MOTOR AMERICA
 1 IGN 1
2 B+
3 LKA
4 +
5 GND
6 ISG OFF
7 ISG IND
8 RHEOSTAT UP
9 RHEOSTAT DOWN
10 -
11 -
12 ILL+
13 -
14 ILL-
15 DETENT
16 ESC OFF
