Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

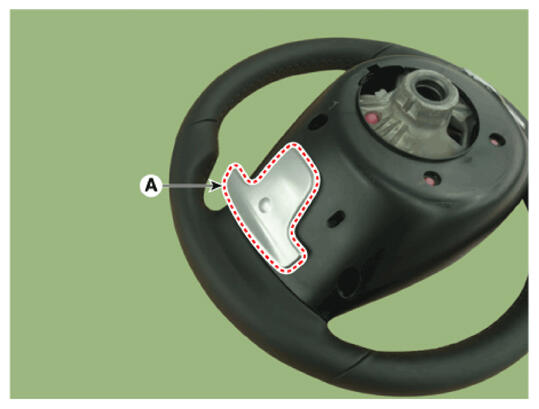

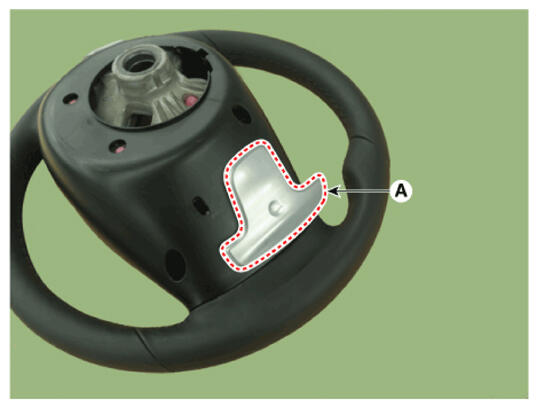

  4. Loosen the mounting screws and remove the paddle shift switch (A).
    G16778156Courtesy of HYUNDAI MOTOR AMERICA
    G16778157Courtesy of HYUNDAI MOTOR AMERICA

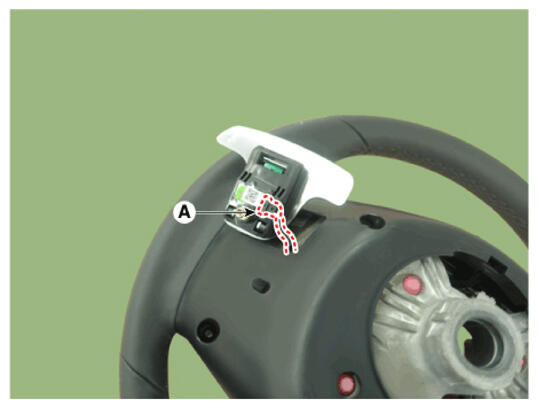

  5. Disconnect the paddle shift switch connector (A).
    G16778158Courtesy of HYUNDAI MOTOR AMERICA
    G16778159Courtesy of HYUNDAI MOTOR AMERICA

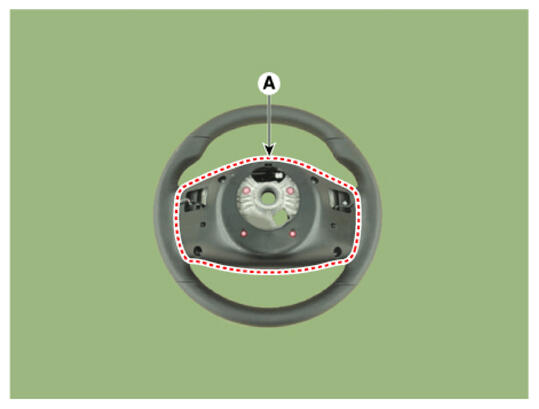

  6. Loosen the mounting screws and remote the lower cover (A).
    G16778160Courtesy of HYUNDAI MOTOR AMERICA

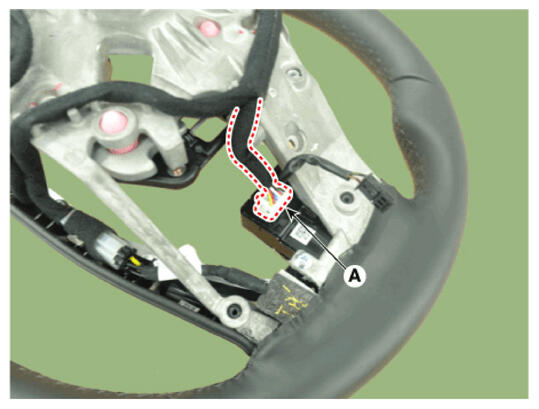

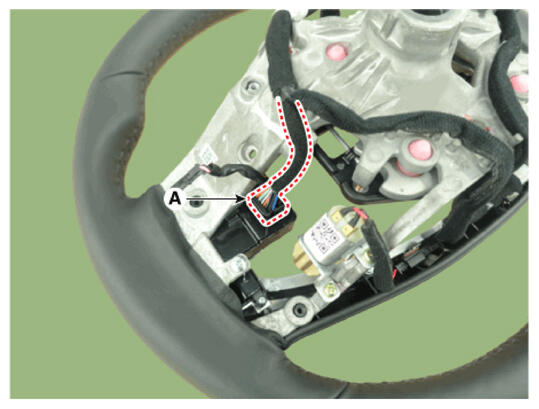

  7. Disconnect the remote control switch connector (A).
    G16778161Courtesy of HYUNDAI MOTOR AMERICA
    G16778162Courtesy of HYUNDAI MOTOR AMERICA

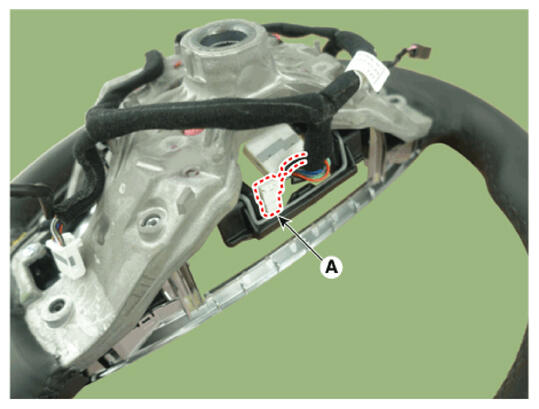

  8. Disconnect the ground connector (A).
    G16778163Courtesy of HYUNDAI MOTOR AMERICA

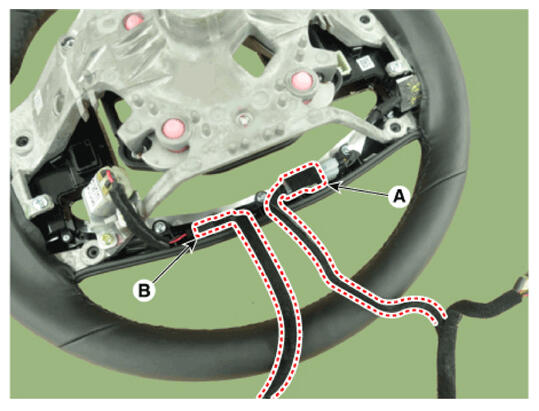

  9. Disconnect the heated steering wheel connector (A) and haptic motor connector (B).
    G16778164Courtesy of HYUNDAI MOTOR AMERICA

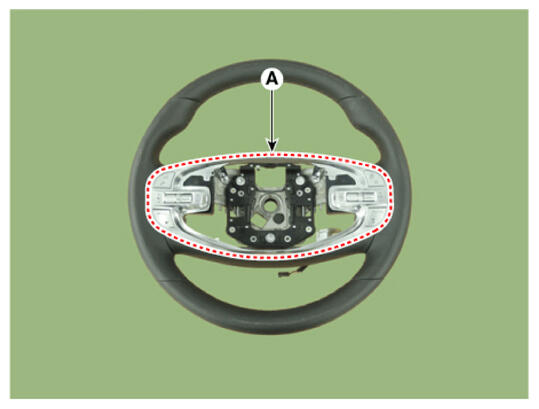

  10. Remove the remote control switch bezel (A).
    G16778165Courtesy of HYUNDAI MOTOR AMERICA

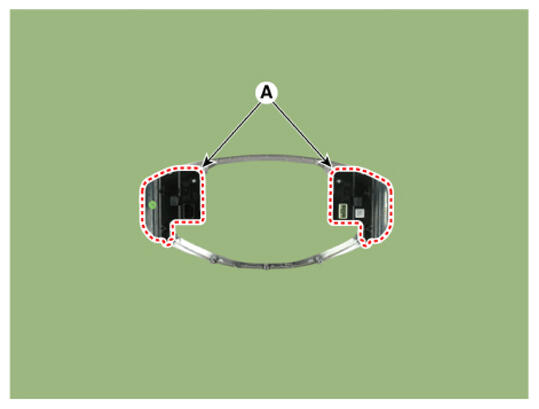

  11. Loosen the mounting screws and remove the remote control switch (A).
G16778166Courtesy of HYUNDAI MOTOR AMERICA
