Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the front bumper cover.
(Refer to FRONT BUMPER ASSEMBLY Body - "Front Bumper Cover")

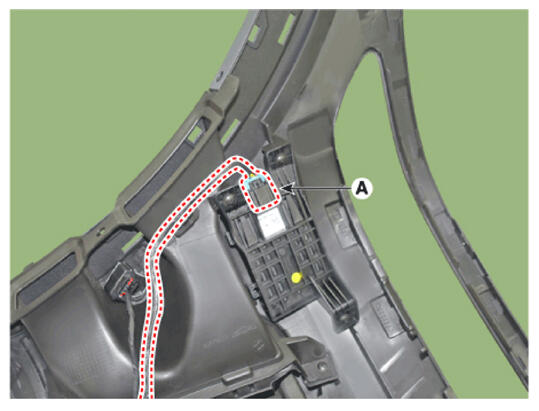

Disconnect the front corner radar connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

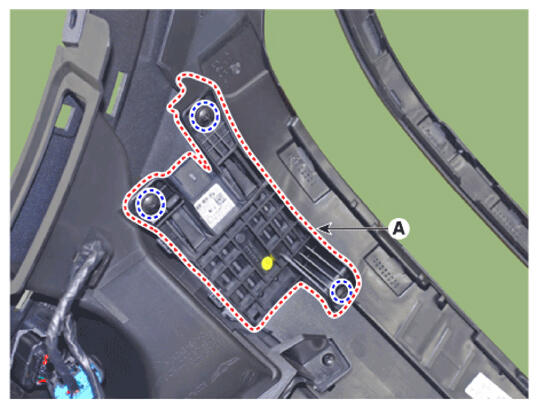

Loosen the mounting screws and remove the Left/Right front corner rader (A).
Tightening torque:

3.5 - 5.7 N.m (0.36 - 0.58 kgf.m, 2.6 - 4.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the bracket when removing the front corner radar unit.

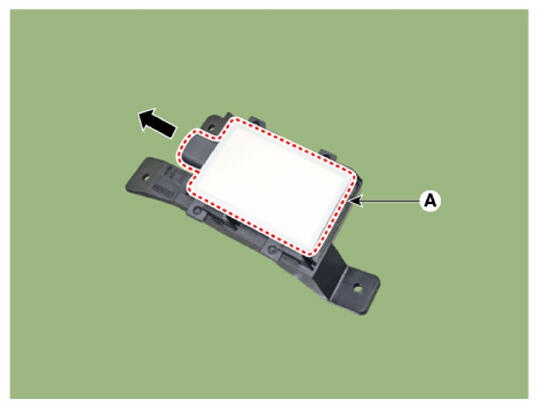

When replacing the bracket, push the unit (A) in the direction of the arrow to remove the bracket.

Courtesy of HYUNDAI MOTOR AMERICA
