Front Camera

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

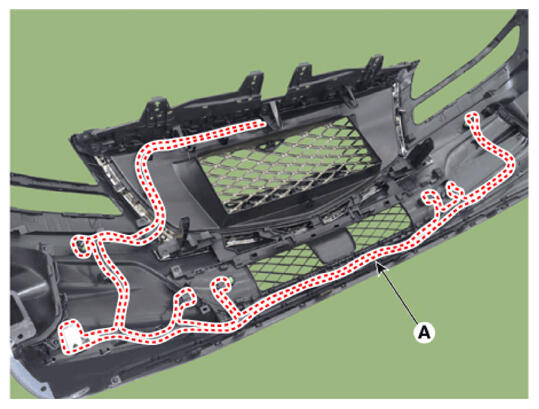

  3. Remove the front bumper cover main wiring (A).
    G16778259Courtesy of HYUNDAI MOTOR AMERICA

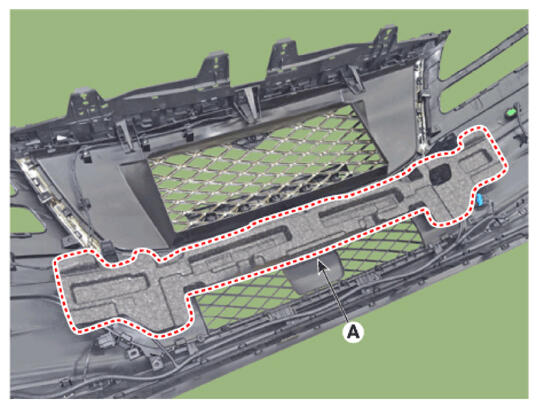

  4. Remove the front bumper energy absorber (A).
    G16778260Courtesy of HYUNDAI MOTOR AMERICA

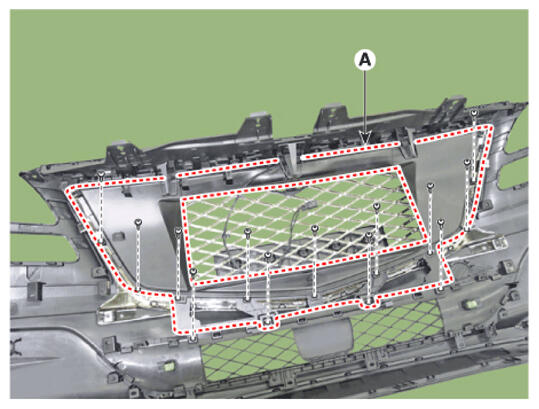

  5. Loosen the mounting screws and remove the radiator grille cover (A).
    G16778261Courtesy of HYUNDAI MOTOR AMERICA

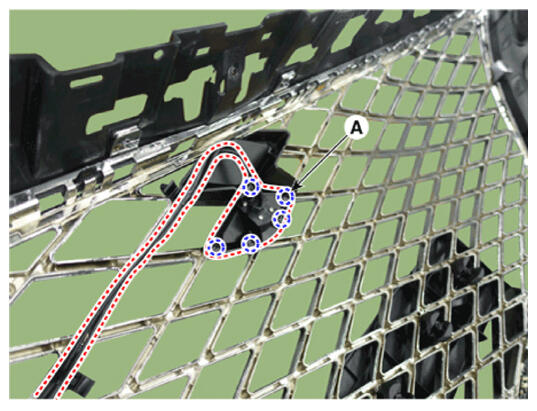

  6. Loosen the mounting screws and remove the front camera (A).
    G16778262Courtesy of HYUNDAI MOTOR AMERICA
