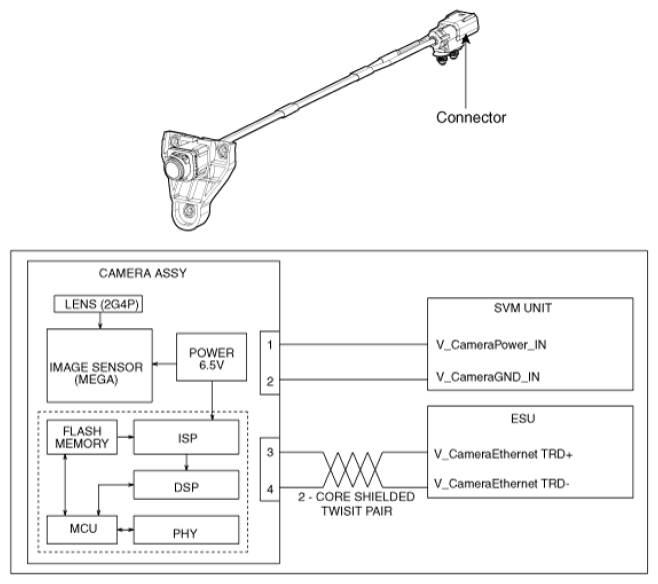

[Ultra Optical Camera - Front]

G16778255Courtesy of HYUNDAI MOTOR AMERICA
Connector NO Description
G16778256Courtesy of HYUNDAI MOTOR AMERICA
 1 Camera power
2 Camera ground
3 Ethernet_TRD (+)
4 Ethernet_TRD (-)
