Repair Procedures: Inspection: Notes

The failure diagnosis of IFS can be performed more efficiently by self-diagnosis using a diagnostic device.

The following information describes how to diagnose faults using a diagnostic instrument.

1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

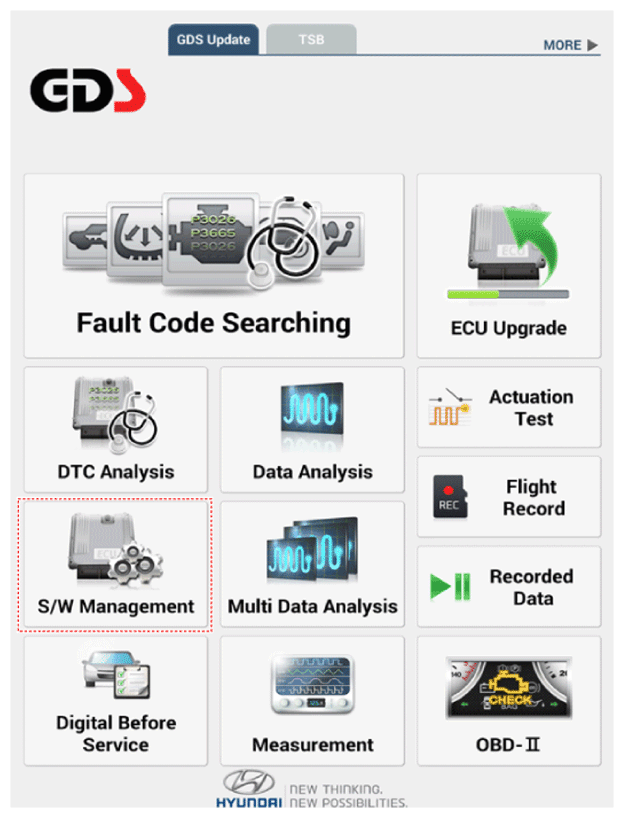

2. Select the 'S/W Management' and 'Car model'.

   Courtesy of HYUNDAI MOTOR AMERICA

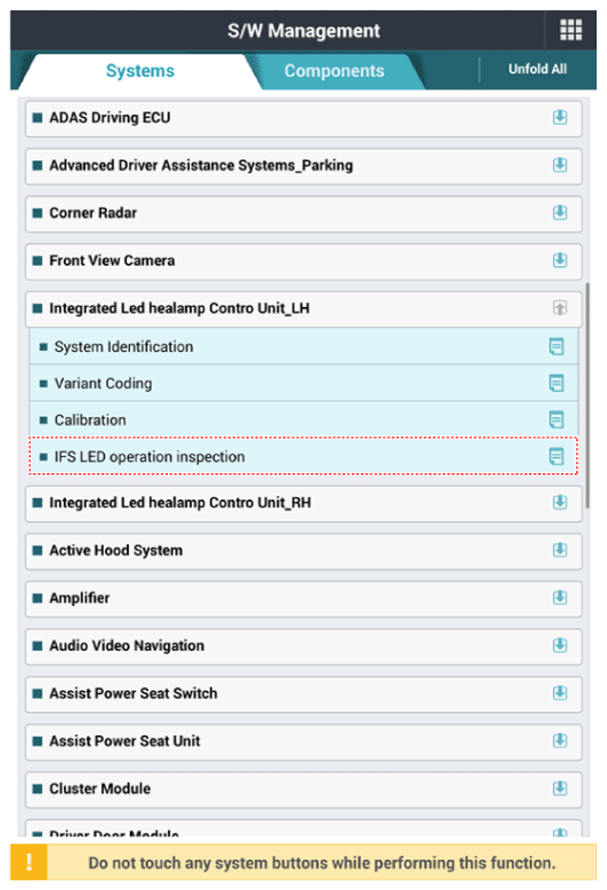

3. Select "Integrated Led headlamp control unit" and "IFS LED Operation inspection".

   Courtesy of HYUNDAI MOTOR AMERICA
