Diagnostic Flowchart

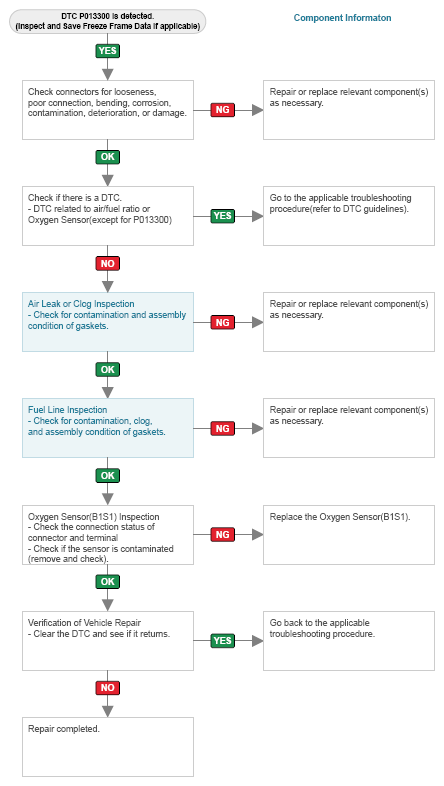

Fig 1: P0133-00 (1 Of 2)
G16837502Courtesy of HYUNDAI MOTOR AMERICA

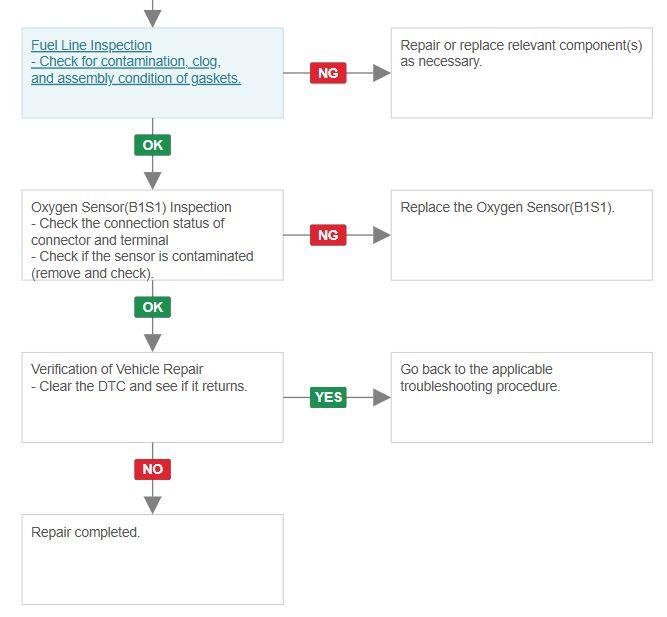

Fig 2: P0133-00 (2 Of 2)
G00664380Courtesy of HYUNDAI MOTOR AMERICA
