Components Location

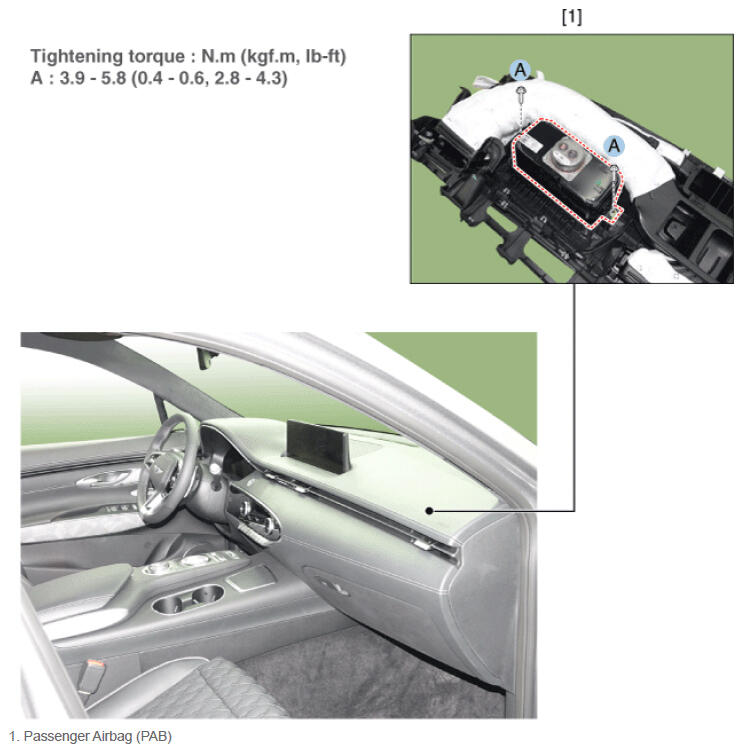

Fig 1: Passenger Airbag Module Components Location With Torque Specifications

G16854855

Courtesy of HYUNDAI MOTOR AMERICA
