Home >> Genesis >> 2024 >> GV70 2.5T Advanced >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis - 2.5L (4 Of 6) >> DTC P0464-F0: Fuel Level Sensor 'A' Circuit Intermittent >> DTC Information And Inspection >> Monitor Current Data

Monitor Current Data

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "OFF".
  4. Monitor following parameters in "Current Data" of CLU with GDS.

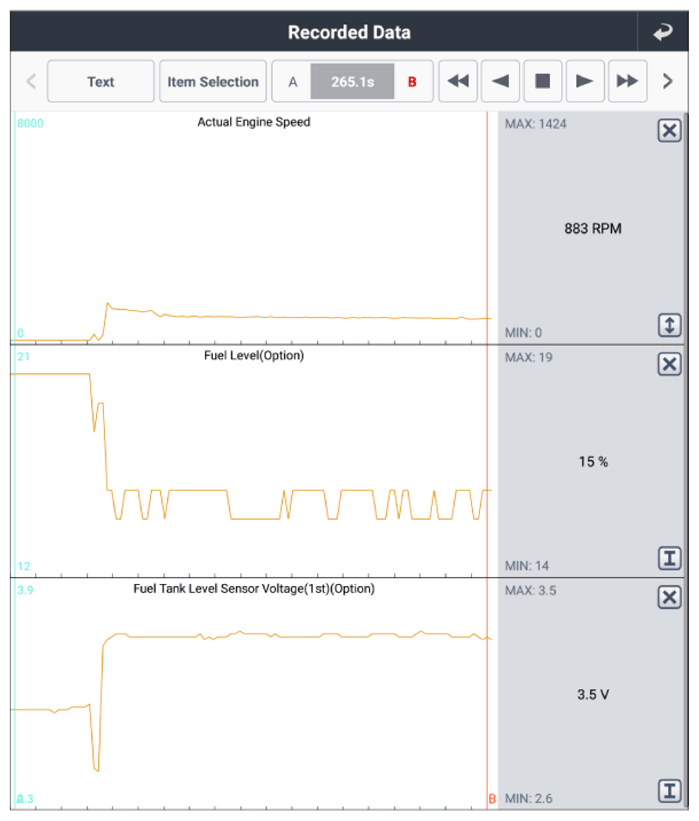

    Specification  : Refer to figure shown below

G16857883Courtesy of HYUNDAI MOTOR AMERICA
