Fingerprint Recognition System A/S Procedure
Fingerprint Recognition System A/S Procedure

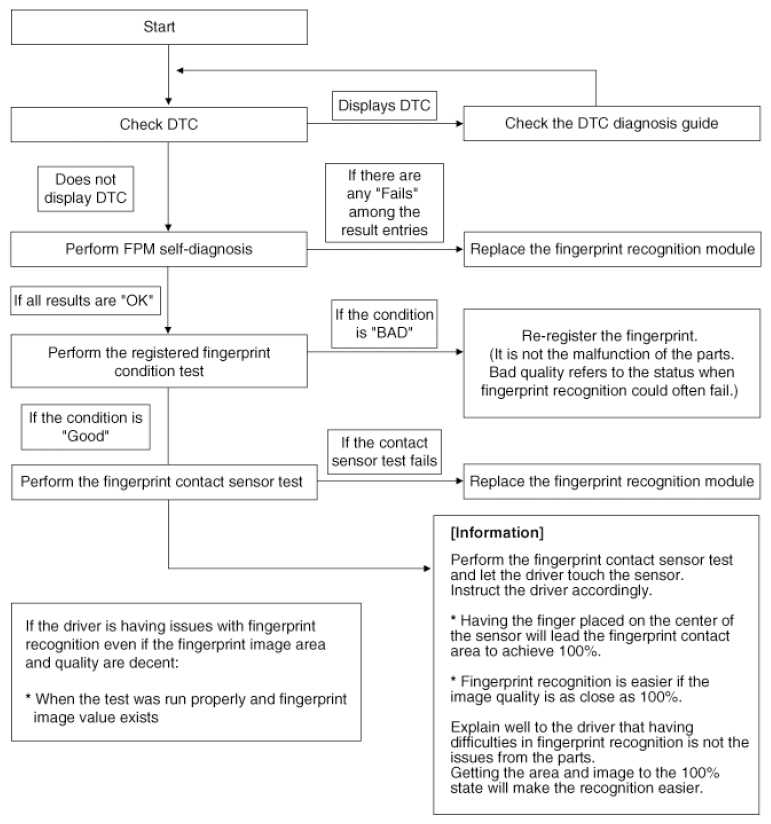

Diagnose the fingerprint recognition system according to below procedure.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
