Software Update For Surround View Monitor System (OTA) (24-BE-009G)

Publication date: 2024-06-01
Reference number: 24-BE-009G

SOFTWARE UPDATE FOR SURROUND VIEW MONITOR SYSTEM (OTA)

SOFTWARE UPDATE FOR SURROUND VIEW MONITOR SYSTEM (OTA)

TECHNICAL SERVICE BULLETIN

Reference Number(s): 24-BE-009G, Date of Issue:  June 01, 2024
GENESIS: 2023-2024 GV60 (JW1 EV)
GROUP: BODY ELECTRICAL

SERVICE INFORMATION

Information

Over-the-Air (OTA) software updates use wireless communication to deliver the latest software directly to the vehicle. As an update becomes available, the software can be deployed over the air and installation initiated by the customer. Refer to TSB 23-GI-004G for OTA general information.

DESCRIPTION

OTA is intended to be performed by the customer within the vehicle. Only if the OTA fails, proceed with the GDS Manual Update outlined in this TSB. This procedure updates the software to improve the surround view monitor system on certain 2023-2024MY GV60 (JW1 EV) vehicles.

Applicable Vehicles:

NOTE: To avoid potential damage to Genesis EVs, Genesis EV repairs can only be performed by EV certified Genesis retailers.

REQUIRED EQUIPMENT/SUPPLIES

TOOLS INFORMATION

Tool Name Remarks
GDS Must be used together to update ADAS_PRK system
Ethernet Communication Interface (ECI)

GDS INFORMATION

GDS INFORMATION

System Event # Description
ADAS_PRK 1090 JW SURROUND VIEW MONITOR SYSTEM ENHANCEMENT (UNIT1)
1091 JW SURROUND VIEW MONITOR SYSTEM ENHANCEMENT (UNIT2)

(*or use a later available event as listed in the GDS ADAS-PRK Update screen if one is available.)

WARRANTY INFORMATION

WARRANTY INFORMATION

Model Op. Code Operation Op. Time Causal Part Nature Code Cause Code
GV60 (JW1 EV) 99910F10 ADAS_PRK Software Update 0.3 M/H 99910-CU000 I14 ZZ3
NOTE:
  1. Normal warranty applies.
  2. Submit claim on Claim Entry Screen as "Warranty" type.
  3. This TSB includes Repair validation photo(s). Op times include VIN, Mileage, and photo capture of the "ECU update complete" screen as outlined in the Digital Documentation Policy.
  4. If a part is found in need of replacement while performing this TSB and the affected part is still under warranty, submit a separate claim using the same repair order. If the affected part is out of warranty, submit a Prior Approval request for goodwill consideration prior to performing the work.

SERVICE PROCEDURE

STUI

This TSB includes Repair validation photos. Refer to the latest Warranty Digital Documentation Policy for requirements.

NOTE:
  • Confirm the vehicle's 12V aux. battery is fully charged. Connect a battery charger before proceeding to eliminate risk of software update failure due to insufficient battery voltage.
  • Turn OFF all lamps (do not  leave head lamp switch in auto mode) and all accessories (heater, A/C, blower, radio, seat warmer, defroster, etc.). Do not  allow the battery to be discharged during update.
  • Perform update with the ignition switch in the ON position.
  • Be careful not  to disconnect any cables connected to the vehicle or scan tool during update.
  • Do not  start the engine during update.
  • Do not  turn off the ignition switch during update.
  • Do not  touch the system buttons (like 'BACK', 'HOME', 'etc.') while performing update.

GDS MOBILE/SMART & ECI INSTALLATION

Information

Refer to TSB 23-GI-005G for detailed information on configuring Ethernet communication for OTA software updates.

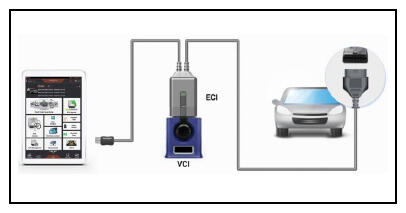

  1. Connect the ECI (Ethernet adapter) DLC cable to the OBD connector of the vehicle.
  2. Connect the VCI-II DLC cable to the ECI.
  3. Select the appropriate tablet cable (C-type, 5-pin) to the ECI.
  4. Connect the cable to the tablet PC.
    G16509243

    Information

    The connection between the VCI-II and tablet PC is wireless, whereas the tablet PC is connected to the vehicle through the ECI (Ethernet adapter).

    Make sure that the tablet PC's battery is charged before upgrading the ECU.

CONFIGURATION OF ETHERNET COMMUNICATION ON TABLE PC

  1. Connect the ECI (Ethernet adapter) to the GDS.
  2. Configure IP to connect the Ethernet (needed once for initial connection).

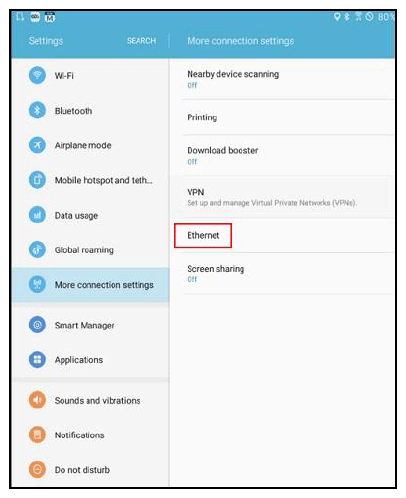

  3. Go to Tablet settings > Connections (optional) > More connection settings > Ethernet  (Menu name and location may differ depending on tablet PC).

    Information

    Refer to TSB 23-GI-005G for detailed information on configuring Ethernet communication for OTA software updates.

    G16509244

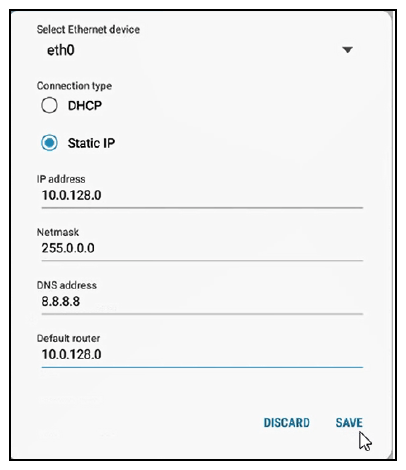

    Your settings should match those shown at right when Ethernet connection is configured.

    Information

    • Ethernet menu may not appear on screen if tablet does not support Ethernet.
    • If Ethernet is not active on screen, restart the tablet PC and check cable connections.
    G16509245

GDS MANUAL UPDATE

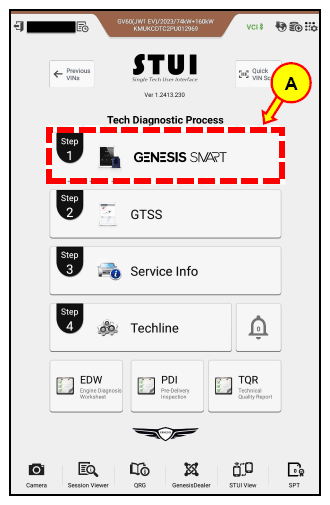

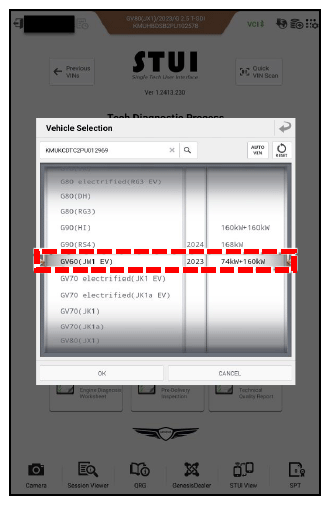

  1. The GDS will read the current ROM ID in the vehicle and check the newest upgrade event. Select Step 1  (A) for Genesis Smart.
    G16509246
    G16509247

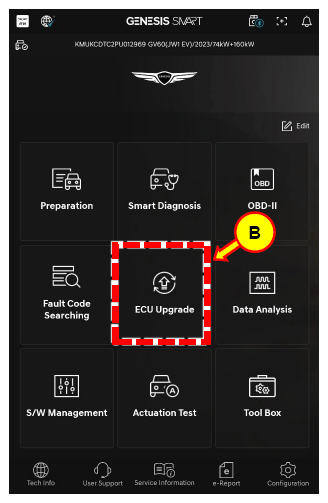

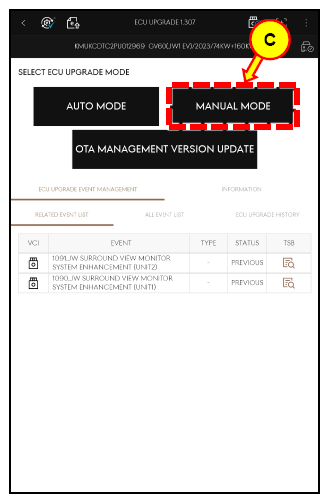

  2. Select ECU Upgrade  (B) and then select Manual Mode  (C).
    G16509248
    G16509249
  3. Both event files are listed. BOTH must be updated.

    Start with event 1090.JW SURROUND VIEW MONITOR SYSTEM ENHANCEMENT (UNIT 1).

    • 1090.JW SURROUND VIEW MONITOR SYSTEM ENHANCEMENT (UNIT1).
    • 1091.JW SURROUND VIEW MONITOR SYSTEM ENHANCEMENT (UNIT2).

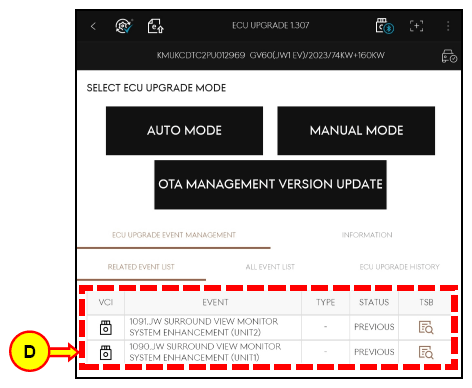

    Select event 1090.JW SURROUND VIEW MONITOR SYSTEM ENHANCEMENT (UNIT1)  (D).

    G16509250
  4. Enter the password from the Manual Mode Password  table in this TSB, then select OK.
  5. The vehicle battery voltage is checked to make sure it is at least 12 volts to ensure reliable update results. Click OK  if the results indicate voltage is OK.
    NOTE: GDS Vehicle Battery Low Voltage Warning:
    If voltage is below 12 volts per the GDS warning, then select Back  and attach a battery charger to ensure an adequate battery charge for reliable update results. Turn ignition back ON  , and then retry the ECU update again.
    G16509251
  6. Update will begin and the progress will appear on the bar graph until 100% is reached.

    Turn the vehicle off for 10 seconds by pressing the Start/Stop button, place it back in the key ON position and then select OK  to continue according to information displayed on the screen.

  7. STUI

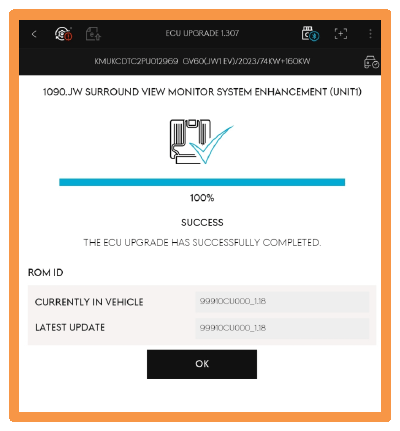

    Take a screenshot of the ECU update complete screen using your tablet and upload to STUI.

    G16509252

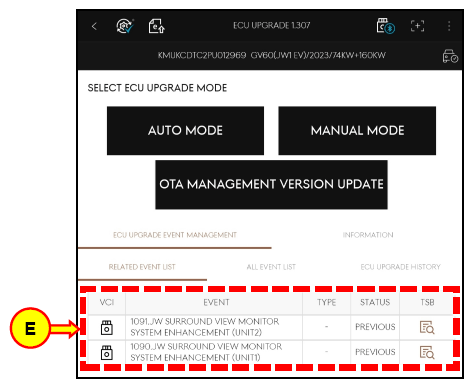

  8. Repeat steps  3 -  7 and update the other event:

    1091.JW SURROUND VIEW MONITOR SYSTEM ENHANCEMENT (UNIT2) (E).

    G16509253
  9. Select No  to Fault Code Searching.
  10. Proceed to OTA Initialization Procedure  (page 9).

ROM ID Information: Event # 1090 (Unit 1) & 1091 (Unit 2)

ROM ID INFORMATION

Model System ECU Part Number ROM ID
Old New
JW1 EV ADAS_PRK 99910-CU000 1.10
1.11
1.12
1.13
1.14
1.15
1.16
1.17		 1.18

Manual Mode Password: Event # 1090

MANUAL MODE PASSWORD INFORMATION

ECM Menu Password
JW ADAS_PRK 99910-CU000 (UNIT1) 6581

Manual Mode Password: Event # 1091

MANUAL MODE PASSWORD INFORMATION

ECM Menu Password
JW ADAS_PRK 99910-CU000 (UNIT2) 6582

OTA INITILATION PROCEDURE

  1. Connect GDS.

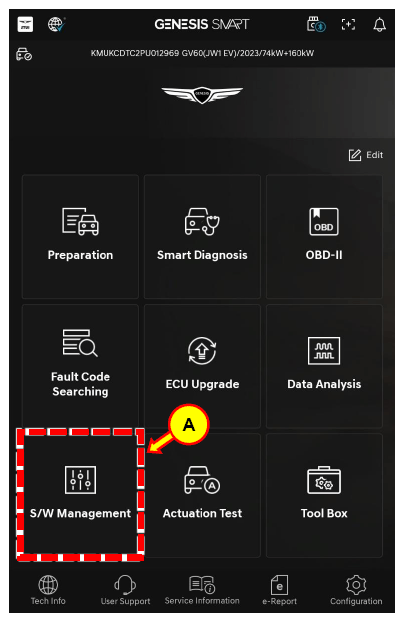

  2. Select S/W Management  (A).
    G16509254

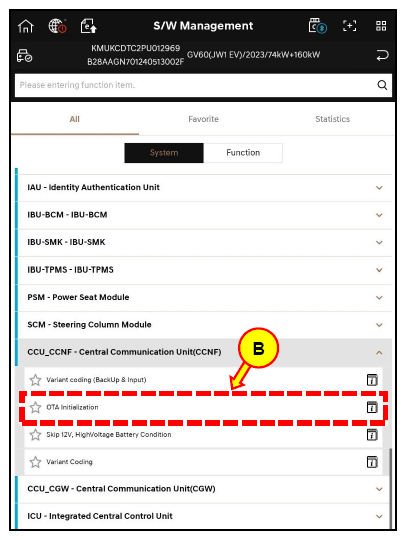

  3. Under CCU_CCNF - Central Communication Unit (CCNF)  select OTA Initialization  (B).

    Follow instructions on screen.

    G16509255

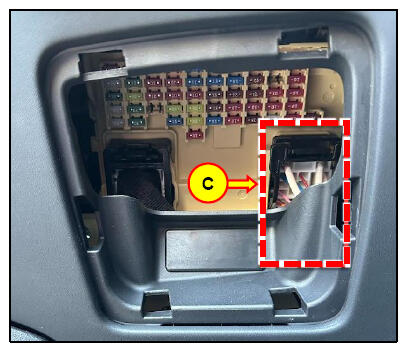

  4. After the OTA Initialization process is complete, disconnect the power connector (C) in the indoor fuse box for at least  5 seconds. Then reconnect it.
    G16509256
  5. Perform an All Systems Fault Code  search and erase DTC history that had incidentally occurred from the ECU update.
  6. Start the vehicle in Ready  mode to confirm proper operation of the vehicle.
  7. Service procedure is now complete.
