Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

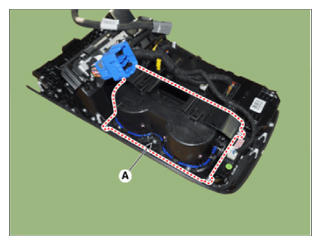

  3. Loosen the mounting screws and remove the cup holder (A).
    G15555401Courtesy of HYUNDAI MOTOR AMERICA

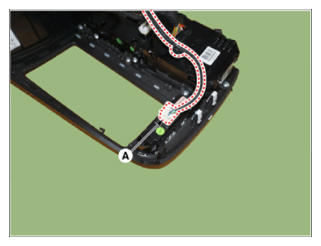

  4. Disconnect the drive mode switch connector (A).
    G15555402Courtesy of HYUNDAI MOTOR AMERICA

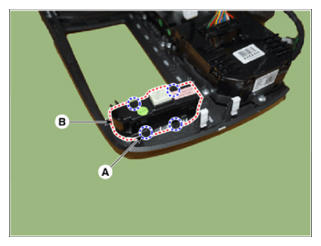

  5. Unlock the locking pin (A) and remove the drive mode switch assembly (B).
    G15555403Courtesy of HYUNDAI MOTOR AMERICA
