Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

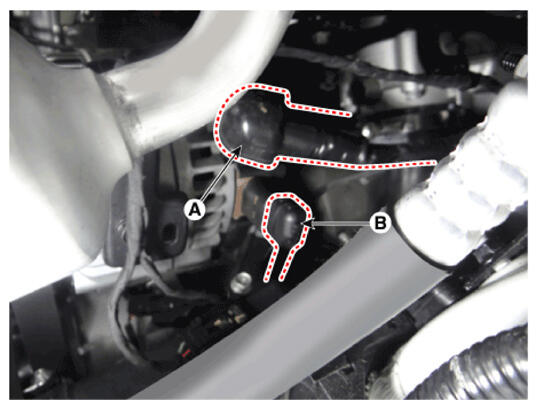

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.
    G16834162Courtesy of HYUNDAI MOTOR AMERICA

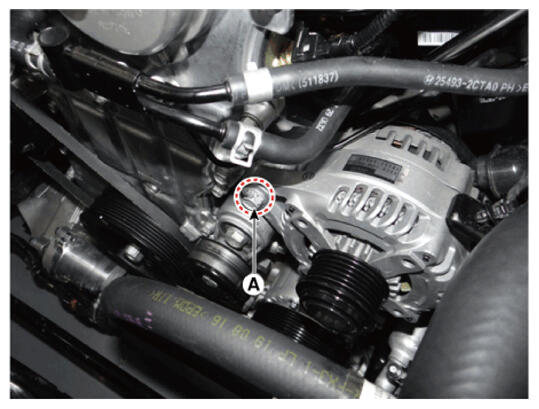

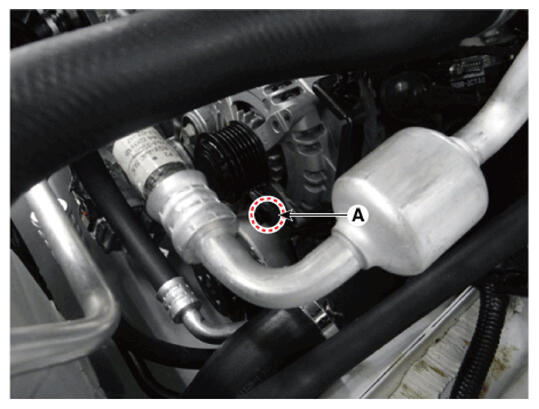

  4. Remove the alternator lower bolt and upper bolt (A).
    G16834163Courtesy of HYUNDAI MOTOR AMERICA
    G16834164Courtesy of HYUNDAI MOTOR AMERICA

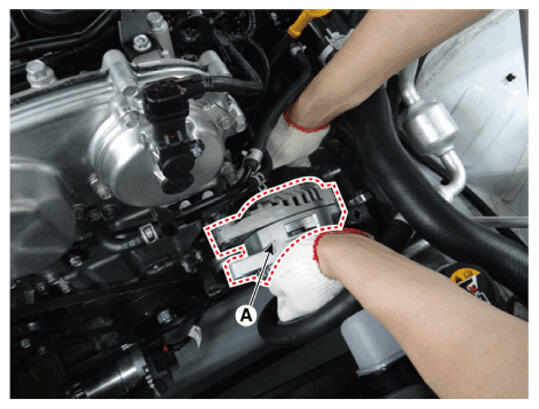

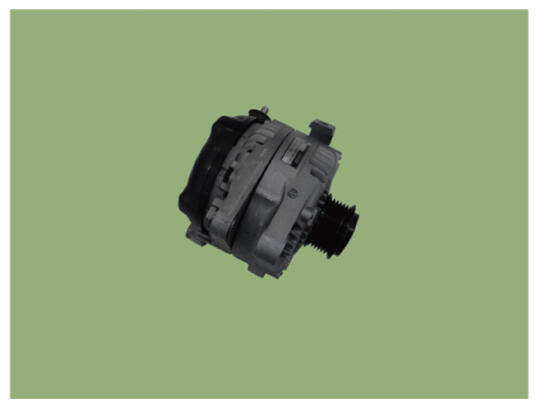

  5. Remove the alternator (A).
    G16834165Courtesy of HYUNDAI MOTOR AMERICA
    G16834166Courtesy of HYUNDAI MOTOR AMERICA
